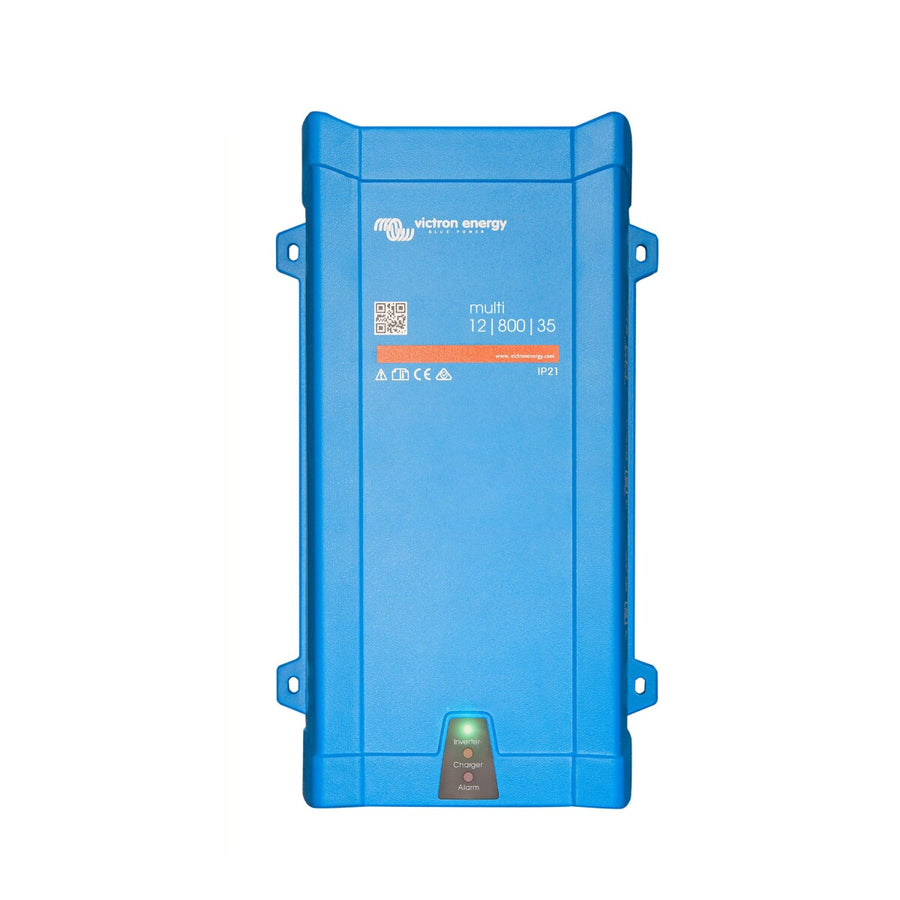

Victron MultiPlus Compact 12/800/35-16 230V VE.Bus

Victron MultiPlus Compact 12/800/35-16 230V VE.Bus

WS300-3344

€766,36 EUR
€766,36 EUR
Sale Bald verfügbar
Taxes included. Shipping calculated at checkout.

Discover the new MultiPlus 12/800/35-16 – Modern Performance and Reliability

The MultiPlus 12/800/35-16 is the successor to the MultiPlus Compact 12/800. This modern device combination integrates a powerful pure sine wave inverter with an advanced 50A battery charger and a 16A high-speed AC transfer switch. Thanks to adaptive charging technology and fast switching, the MultiPlus ensures an uninterrupted power supply even during grid interruptions.

Key Features of the MultiPlus 12/800/35-16

  • Continuous output power at 25°C: 700W (800W for non-linear loads)
  • System voltage: 12V
  • Integrated 35A battery charger
  • 16A high-speed transfer switch
  • UPS operation possible
  • Versatile use: On land and mobile
  • Proven reliability: Short-circuit proof and protected against overheating

PowerControl (MultiPlus 800VA & 1200VA only)

With the Multi Control remote panel, you can set the maximum shore or generator current. The MultiPlus intelligently adjusts its charging to prevent overloading of the shore or generator connection.

PowerAssist (MultiPlus 800VA & 1200VA only)

During brief peak loads, the MultiPlus immediately compensates for weak shore or generator power by drawing energy from the battery. As soon as the load decreases, the device uses the surplus current to recharge the batteries.

High Inrush Power

The high inrush power of the MultiPlus is ideal for starting loads with high inrush currents, such as LED voltage converters, halogen lamps, or power tools.

Search Mode

In search mode, the MultiPlus reduces its no-load power consumption by approximately 70%. It switches off at low or no load and briefly switches on again every two seconds. If the output current exceeds a certain value, the inverter resumes operation.

Programmable Relay

By default, the multi-function relay acts as an alarm relay, which shuts down the device in case of malfunctions such as overheating, excessive input voltage, or low battery voltage.





Technical Data Victron Multiplus C 12/800/35-16 230V
Power 700 W
Peak power 1600 W
Output voltage 230 V
Input voltage range 9.5 - 17 V
Efficiency 92 %
Protection class IP20
Weight 10 kg
Dimensions 375 x 214 x 110 mm
