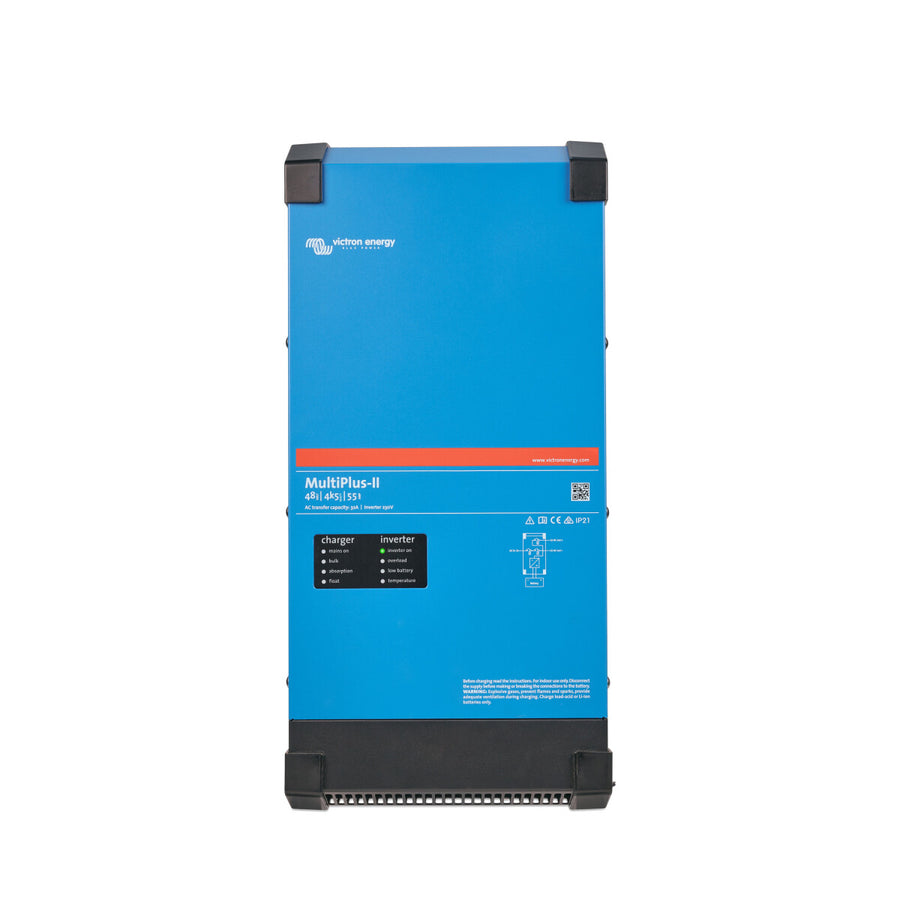

Victron MultiPlus-II 48/4k5/55-32 – Inverter, Charger & Transfer Switch in one

The Victron MultiPlus-II 48/4k5/55-32 combines three functions in one device: inverter, mains charger and transfer switch. With a continuous output power of 4,000 W (4,500 VA) and a short-term peak power of up to 7,000 W, it is the ideal solution for reliable and flexible power supply – whether in private households, mobile applications or off-grid installations.

Key technical data

  • AC input voltage: 187–265 VAC
  • AC output voltage: 1× 230 V (50–60 Hz, adjustable)
  • Continuous power: 4,000 W (4,500 VA)
  • Peak power: 7,000 W
  • Internal transfer switch: 32 A
  • Charger: max. 55 A for 48 V battery systems (incl. lithium support)
  • DC voltage range: 38–60 V
  • Dimensions (HxWxD): 590 × 275 × 149 mm
  • Weight: 21.4 kg

Your advantages with the Victron MultiPlus-II

The device offers numerous functions that go far beyond mere power supply:

  • Versatile battery compatibility: Supports lead-acid, AGM & lithium batteries
  • Power Assist: Prevents overload with weak mains or generator connections
  • UPS function: Uninterruptible power supply through automatic switching in 20 ms
  • Anti-Islanding function: High safety through double NA protection
  • ESS energy storage solution: Ideal for retrofitting existing PV systems
  • Scalable: Parallel connection & three-phase operation possible
  • Compatible: Connection to Victron GX devices for remote monitoring & control

Flexible application areas

Whether in a caravan, on a boat or in off-grid applications: The MultiPlus-II is suitable for a variety of scenarios. It also ensures stable power supply in commercial installations – even when grid power is only partially available.

An All-in-One Energy Management System

With the Victron MultiPlus-II 48/4k5/55-32, you choose a powerful, reliable and future-proof device. It combines charger, inverter and transfer switch in one unit – for maximum flexibility and highest efficiency.





Technical Data Victron Multiplus-II 48/4k5/55-32
Power 4000 W
Peak power 7000 W
Output voltage 230 V
Input voltage range 38 - 60 V
Efficiency 95 %
Protection class IP21
Weight 21.4 kg
Dimensions 590 x 275 x 149 mm
