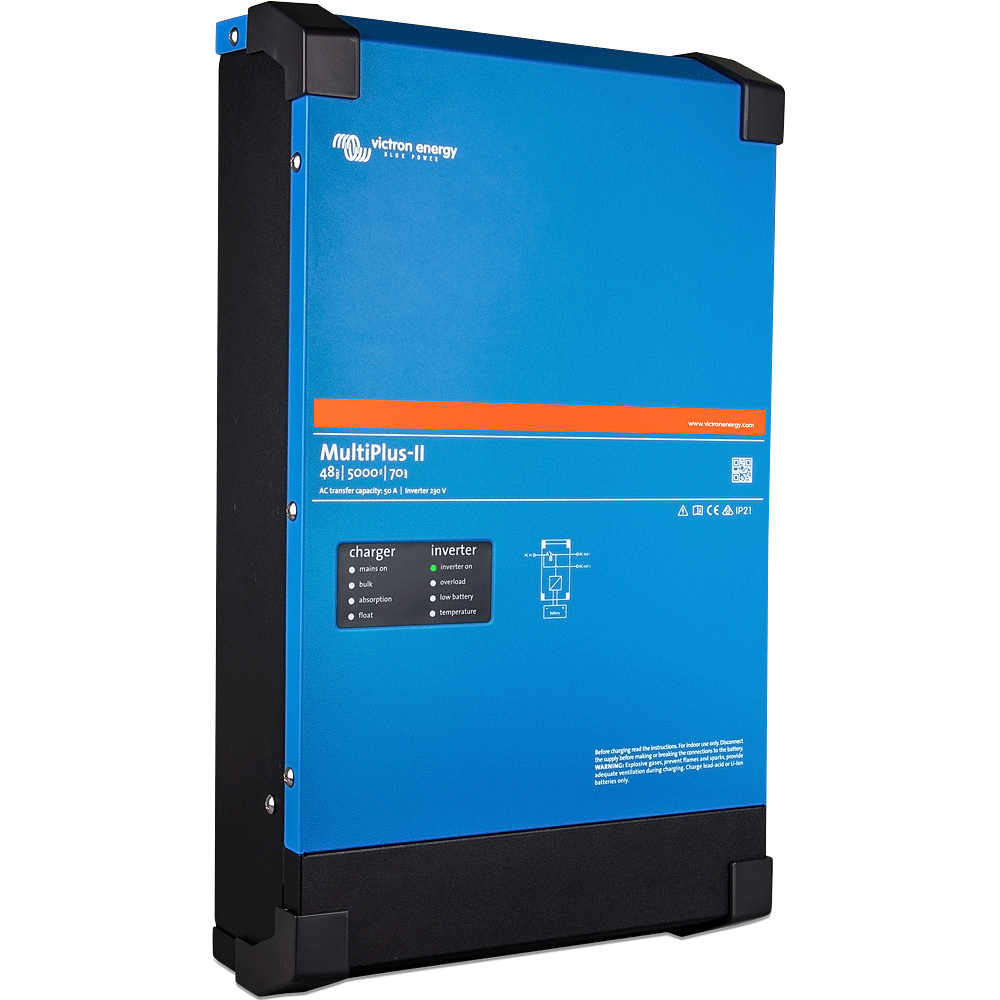

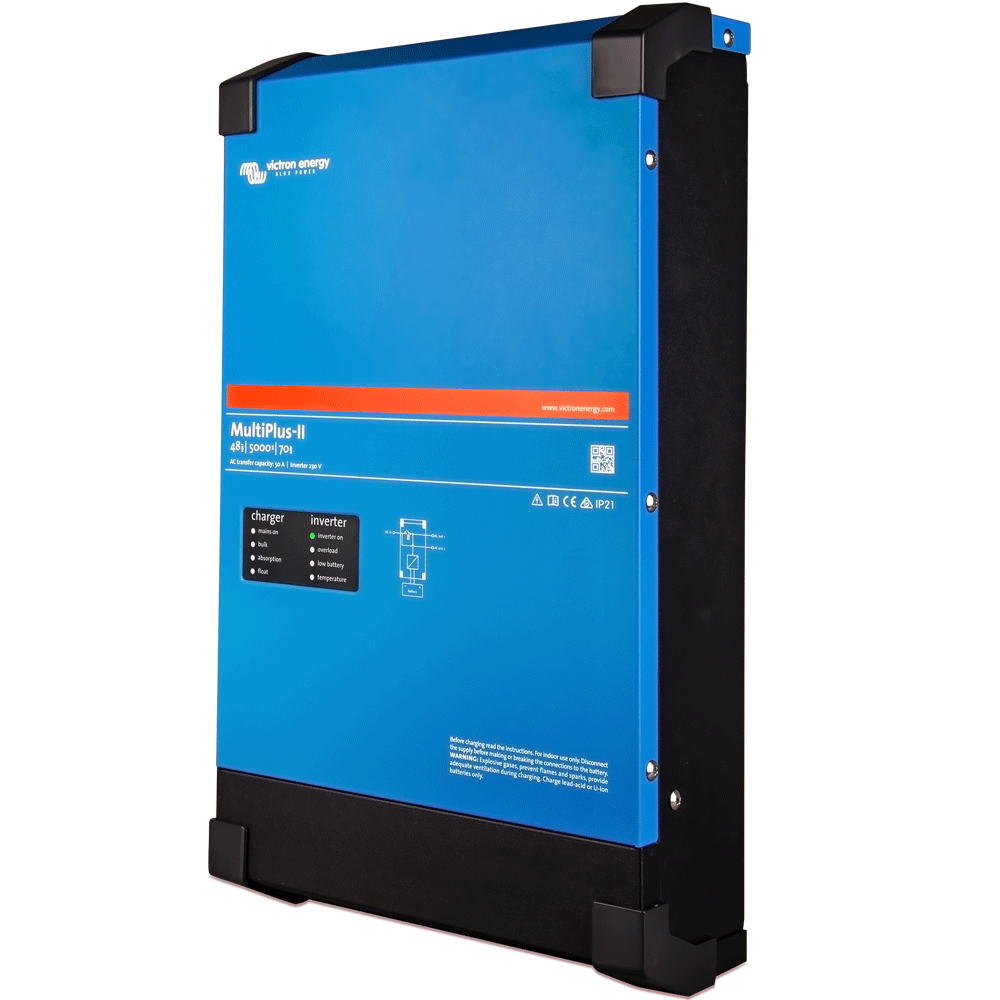

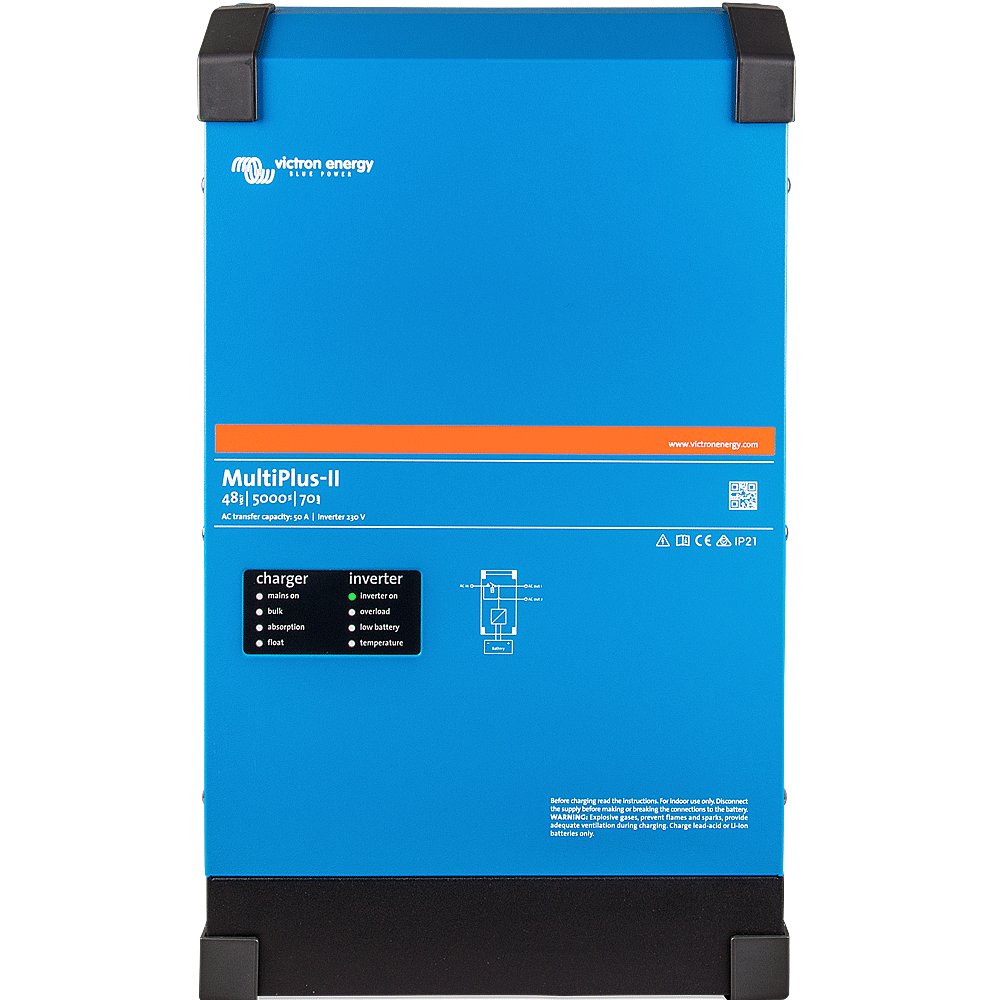

Victron MultiPlus-II 48/5000/70-50 230V

Victron MultiPlus-II 48/5000/70-50 230V – Powerful Inverter/Charger with ESS Function

The Victron MultiPlus-II 48/5000/70-50 230V combines the proven features of the MultiPlus with the extended capabilities of the MultiGrid. It is the ideal solution for grid-connected and off-grid energy systems. Thanks to its integrated current sensor, it enables optimized grid and generator utilization. This increases the PowerControl and PowerAssist functions to 50A and 100A respectively, allowing for even better control of energy distribution.

Inverter & Charger in one – Flexible for various energy needs

• Combination of Inverter & Charger with an extended Energy Storage System (ESS)
• Optimized self-consumption – Even more efficient thanks to external current measurement (up to 32A)
• Anti-Islanding Function – Security for grid-connected systems, with approvals for many countries

Key features of the MultiPlus-II 48/5000/70-50:

• Powerful & versatile: 5000VA output power, 70A charging power, 48V battery system.
• PowerControl & PowerAssist: Prevents grid overload and supports weak generators with battery power.
• Solar power compatible: Works with grid-tied and off-grid PV systems.
• Uninterruptible Power Supply (UPS): Lightning-fast switching in case of power failure (<20 ms).
• Two AC outputs: Separate power supply for critical and non-critical loads.
• Scalable: Parallel operation and three-phase operation possible for up to 75kW output.
• Easy configuration & remote monitoring: Via GX devices, computer, or the Victron VRM platform.

The Victron MultiPlus-II 48/5000/70-50 230V is particularly suitable for motorhomes, boats, off-grid solar systems, and backup systems. It ensures reliable and efficient energy management – whenever you need it.

Documents & Downloads

• Manual
• Datasheet
