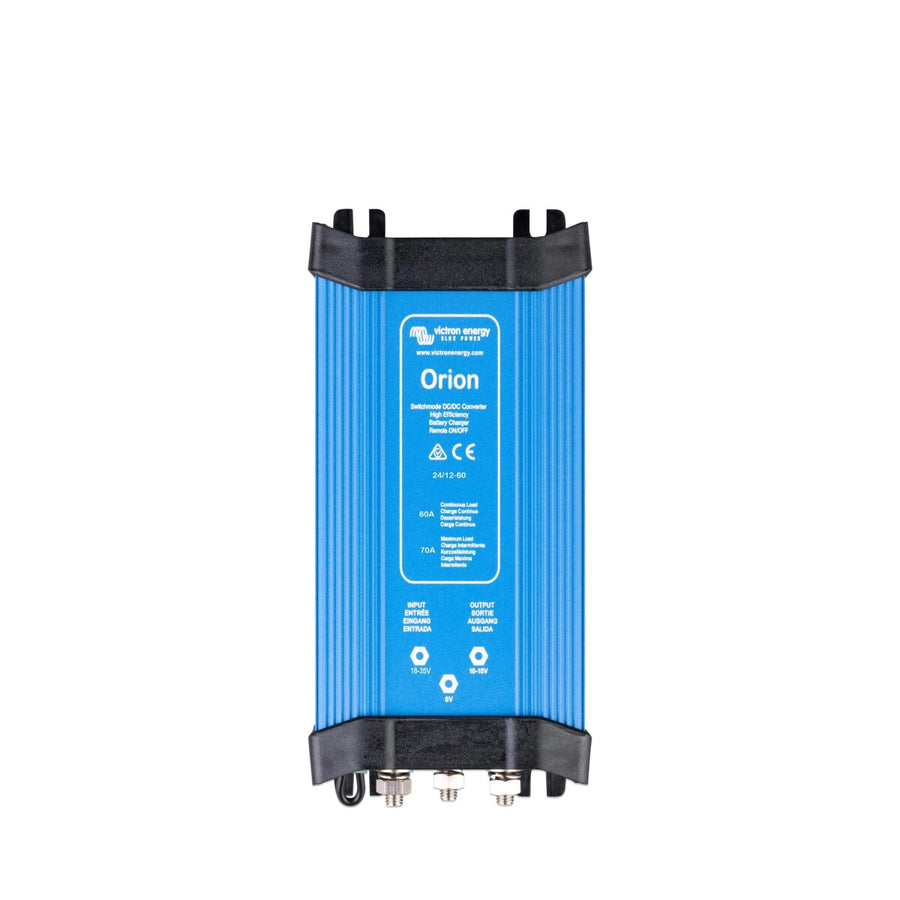

Victron Orion 24/12-60
Victron Orion 24/12-60 – Reliably convert 24 V to 12 V
If you need stable 12 volts in a 24-volt electrical system, the Victron Energy Orion 24V-12V 60 A DC-DC Converter is a robust, practical solution. It converts 24 V DC to 12 V DC and delivers up to 60 A output current. Thanks to its wide input voltage range of 18–35 V DC, your 12-volt supply remains stable even if the input voltage in the vehicle or system fluctuates. Additionally, you can flexibly adjust the output voltage from 10 to 15 V – ideal if you want to precisely adapt your 12-volt side to consumers or charging scenarios.
Which setups is the Orion 24/12-60 suitable for?
The Orion is particularly interesting for applications where a 24-volt system is present, but 12-volt consumers or 12-volt sub-circuits need to be supplied – for example, in commercial vehicles, service vehicles, special vehicles, or technical installations. Through DC-DC conversion, you get a defined, clean 12-volt rail, without having to rely on "it'll probably work" solutions.
Adjustable output voltage: more control over your 12-volt side
Not every 12-volt system is really "exactly 12 V" in everyday use. Depending on the consumer, cable routes, and desired behavior, it may be useful to adjust the output voltage. With an adjustment range of 10–15 V, you can configure the Orion appropriately – for example, to compensate for voltage losses over longer cable runs or to operate your consumers within their optimal voltage window.
Mounting & Connections: solid and service-friendly
Connections are made via screw terminals for cable cross-sections up to 6 mm². This makes installation clear and easy to maintain – especially if you want to work cleanly in control cabinets or technical areas. At 65 × 88 × 185 mm (L × W × H), the device remains compact, and at 0.9 kg, it can be easily accommodated in common installation environments.
Operation in typical environments
The Orion is designed for a temperature range of -20 °C to +55 °C. With IP20, it is intended for protected indoor areas – not for direct weather exposure or splashing water. Important for planning: This model is not galvanically isolated. This is perfectly fine in many electrical system and industrial setups but should be consciously considered when it comes to grounding and system design.
Your advantages at a glance
- Reliably converts 24 V DC to 12 V DC
- Up to 60 A output current for powerful 12-volt consumers
- Wide input voltage range 18–35 V DC for fluctuating onboard electrical systems
- Output voltage adjustable from 10–15 V for precise system adaptation
- Screw terminals (up to 6 mm²) for clean, service-friendly installation
- Compact design (65 × 88 × 185 mm) at 0.9 kg weight
| Technical Data | Victron Orion DC-DC 24/12-60 |
| Input voltage range | 18 - 35 V |
| Output voltage | 13.2 V |
| Continuous current | 60 A |
| max. Output current | 70 A |
| max. Efficiency | 95 % |
| Operating temperature | - 20° C to 55 °C |
| Weight | 850 g |
| Dimensions | 65 x 88 x 185 mm |
