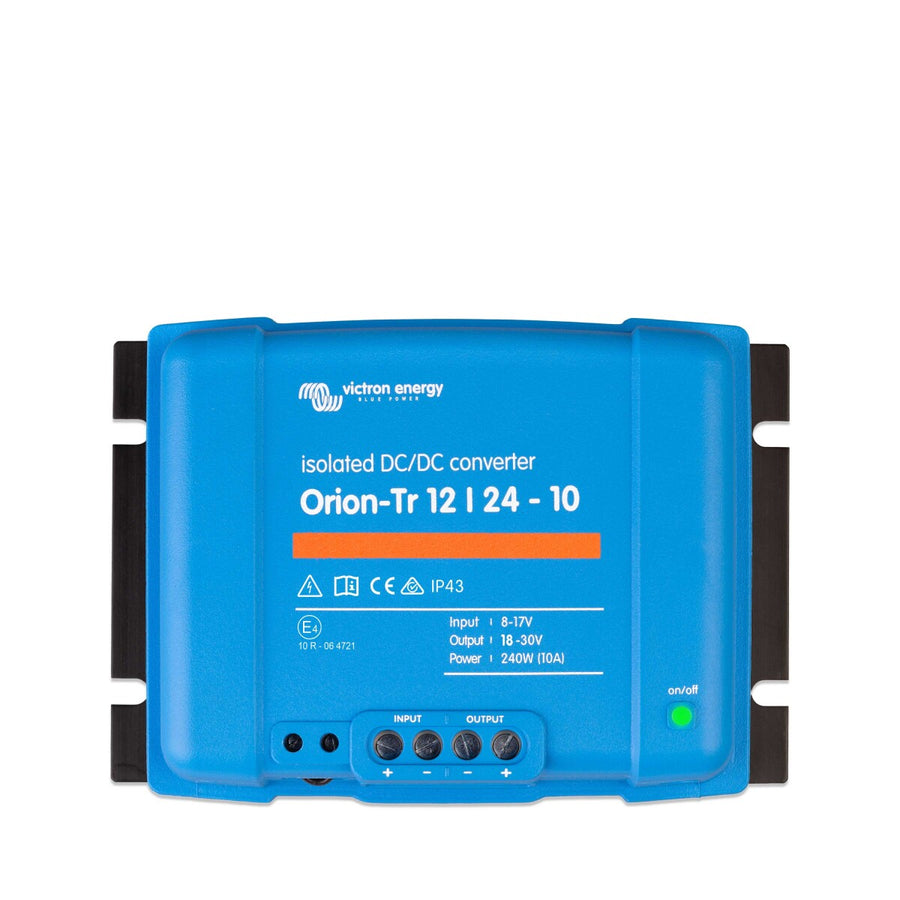

Victron Orion-Tr 12/24-10A (240W) Isolated DC-DC converter
Victron Orion-Tr 12/24-10A (240W) Isolated DC-DC Converter: Your Key to Efficient Power Conversion
The Victron Orion-Tr 12/24-10A (240W) isolated DC-DC converter, a galvanically isolated voltage converter, guarantees stable DC voltage and thus smooth operation of your DC devices. This compact converter efficiently transforms input voltages from 8-17V into an adjustable 24V output voltage (20-30V), providing a constant continuous current of 10A, corresponding to a total power of 240W.
Simplicity and Safety in Application
With the Orion-Tr 12/24-10A, you experience the next level of power conversion. The remote on/off function eliminates the need for a high-current switch in your input wiring. You can easily connect this terminal to a low-power switch or your engine's run/stop switch for uncomplicated handling.
Unlimited Expansion Possibilities
This model is characterized by its short-circuit proof design and the ability to parallel multiple devices. This allows you to increase the output current as needed, without limitations on the number of devices you wish to connect.
Integrated Protection
- High temperature protection: The Orion-Tr 12/24-10A automatically adjusts the output current to prevent overheating at high ambient temperatures.
- IP43 protection: Worry-free installation is guaranteed, especially when the screw terminals are mounted facing downwards.
- Screw terminals: No special tools are required for the installation of this converter, saving you time and effort.
- Input fuse: The non-replaceable fuse on the 12V and 24V models provides additional safety.
Please note
While the Orion-Tr 12/24-10A is suitable for a wide range of applications, it is not designed for charging batteries. For battery charging, we recommend using an Orion-Tr Smart DC-DC charger to ensure the best possible performance and safety for your system.
