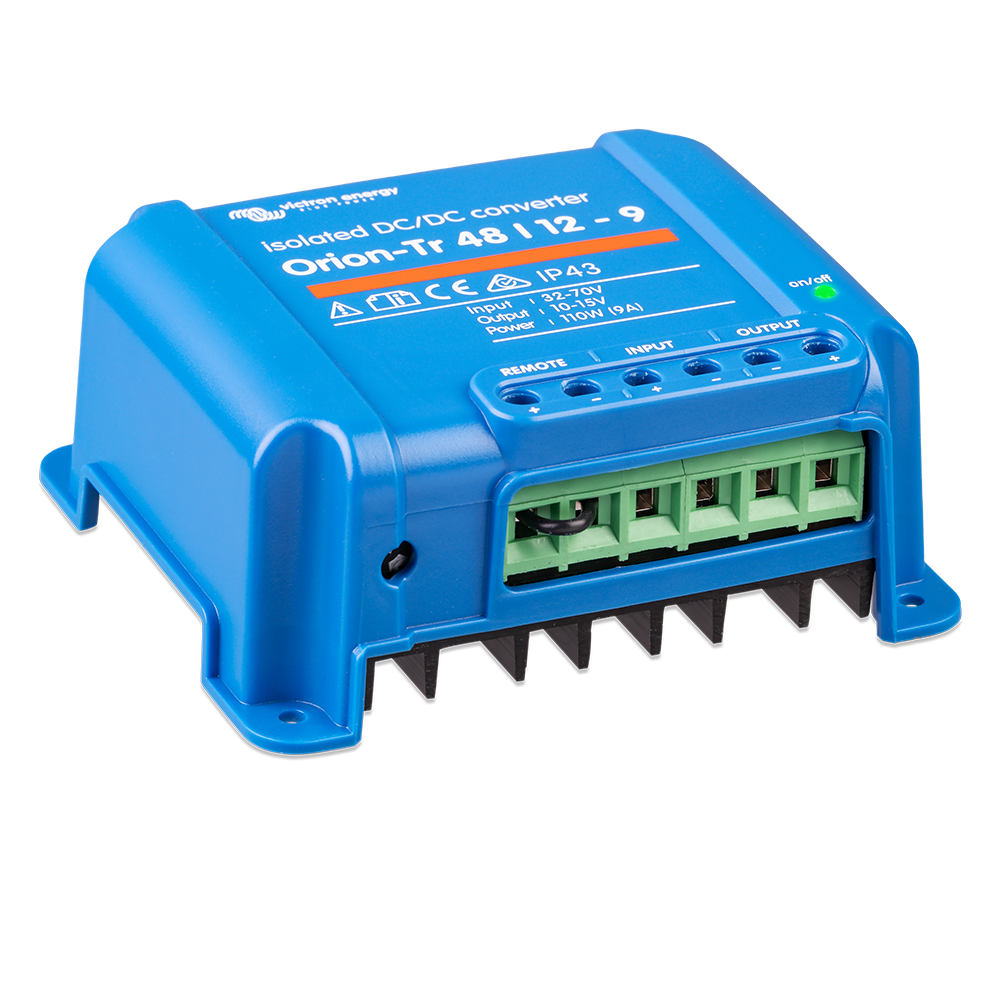

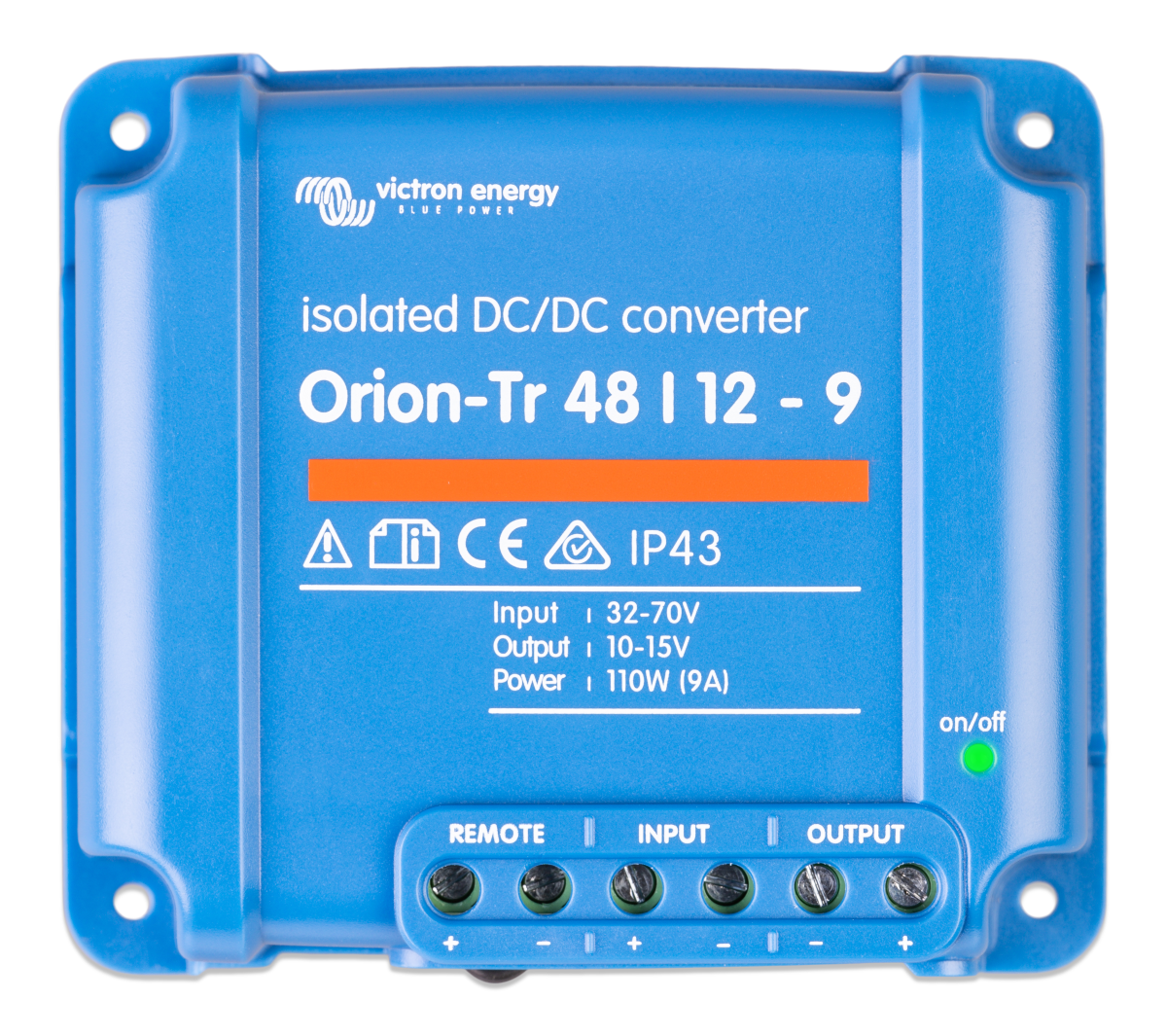

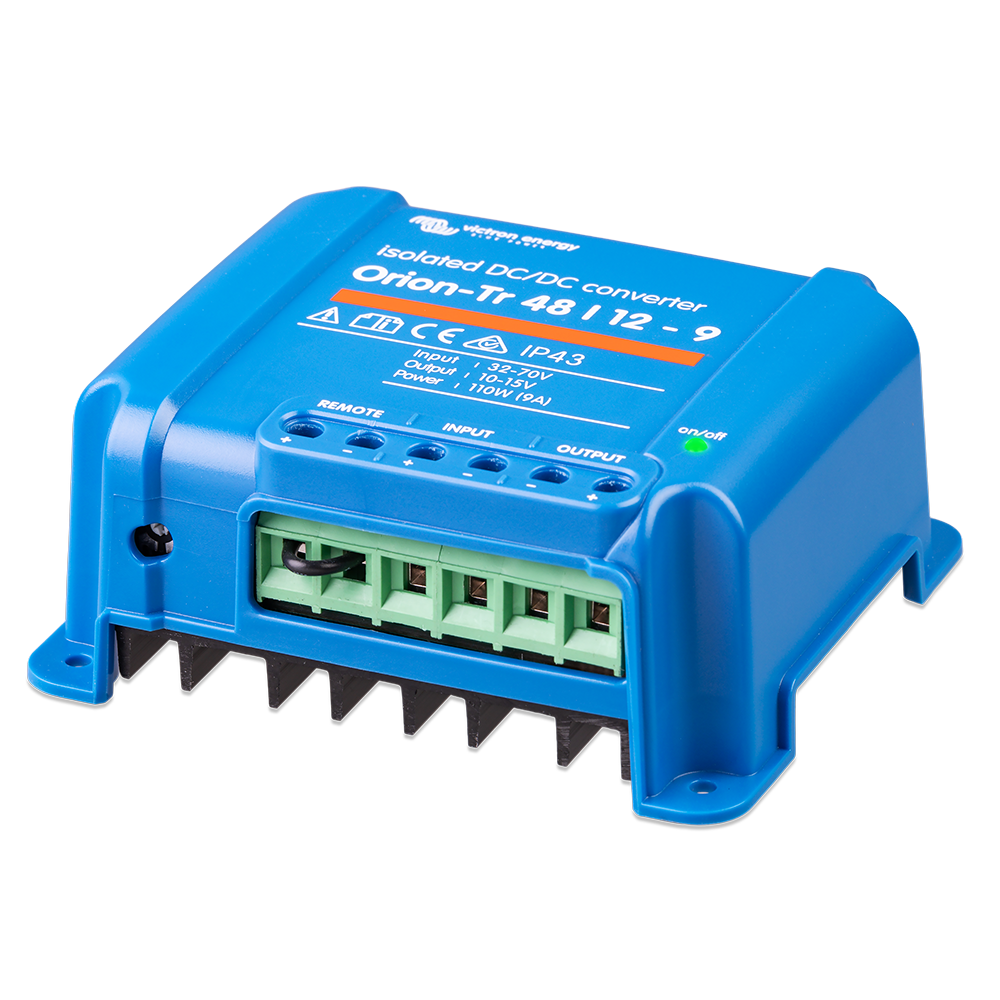

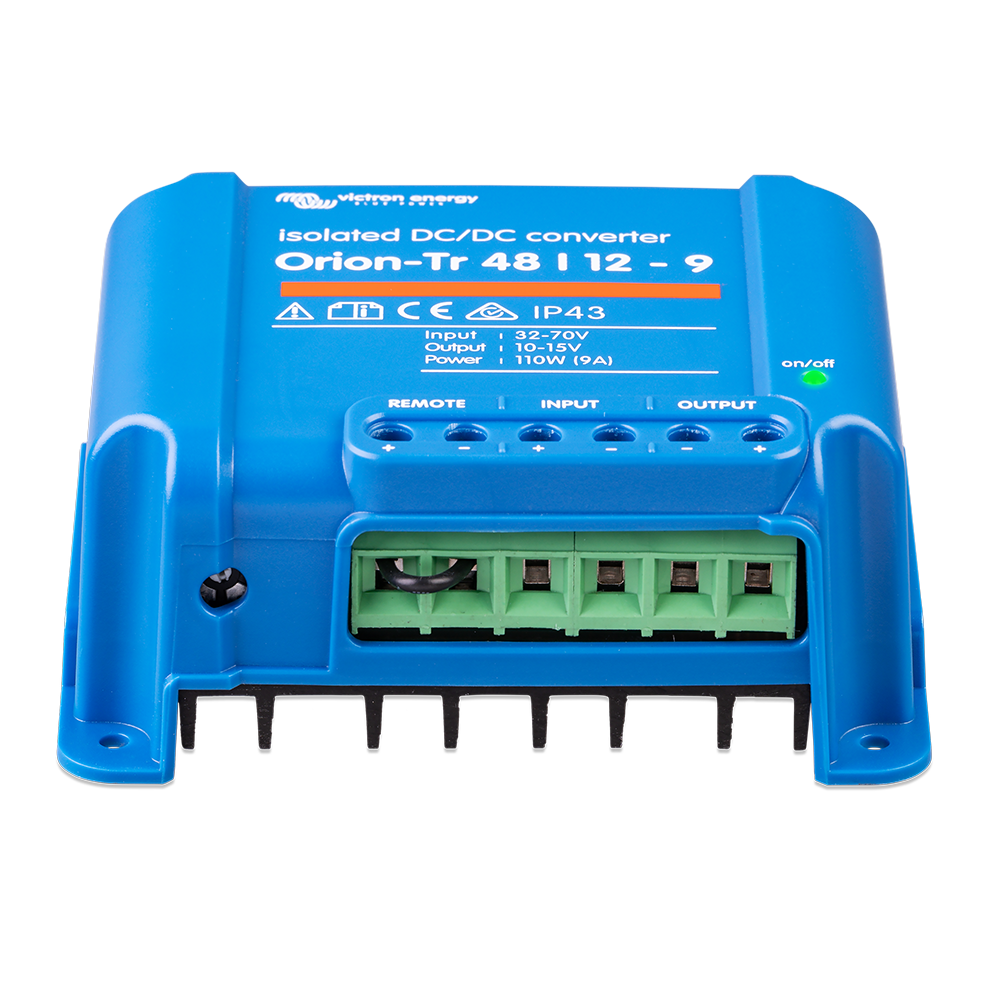

Victron Orion-Tr 48/12-9 A (110W) isolated DC-DC converter

Orion-Tr DC/DC Converter, isolated

Remote on/off

The remote on/off eliminates the need for a high-current switch in the input wiring. The remote on/off can be operated with a low power switch or by the engine run/stop switch (see manual).

Adjustable output voltage: can also be used as a battery charger

For example, to charge a 12 Volt starter or auxiliary battery in an otherwise 24V system.

All models are short-circuit proof and can be paralleled to increase output current.

An unlimited number of units can be connected in parallel.

IP43 protection

When the screw terminals are installed facing downwards.

Screw terminals

No special tools are needed for installation.

Input fuse (not replaceable)

Only on the 12V and 24V models

Documents & Downloads

• Datasheet Orion-TR isolated
• Manual Orion-TR isolated
