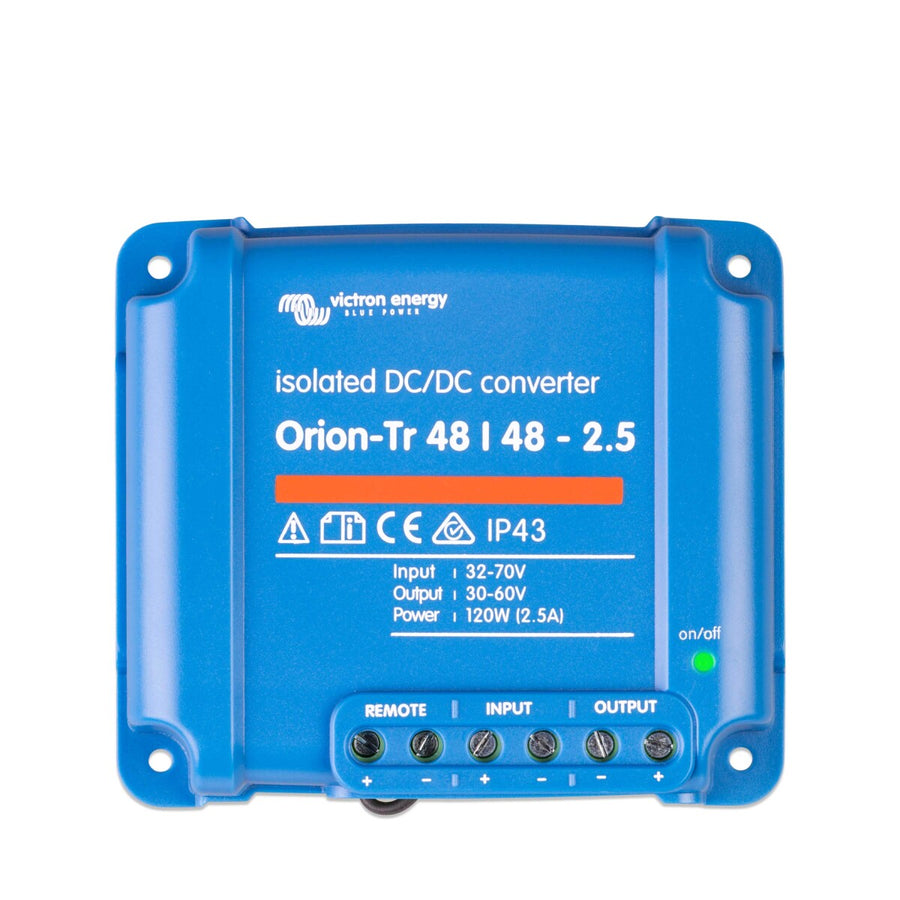

Victron Orion-Tr 48/48-2.5A (120W) Isolated DC-DC converter

Maximize Efficiency and Safety with the Victron Orion-Tr 48/48-2.5A (120W) Isolated DC-DC Converter

The Victron Orion-Tr 48/48-2.5A (120W) isolated DC-DC converter brings maximum safety and efficiency to your power system. It enables a smooth conversion of the input voltage from 32-70V to an adjustable output voltage of 48V (40-60V), with a constant current of 2.5A, which corresponds to a power of 120W. Unique is the possibility of remote on/off control, which eliminates the need for a high-current switch in the input wiring. This function simplifies installation and increases safety, as it can be controlled via a low-power switch or the engine's run/stop switch, as explained in more detail in the manual.

Highlights of the Victron Orion-Tr 48/48-2.5A (120W) Isolated DC-DC Converter:

• Unlimited Parallel Connection: You can connect an unlimited number of devices in parallel to increase the output current, allowing for flexible adaptation to your needs.
• High Temperature Protection: The output current is automatically reduced to protect the device at high ambient temperatures and ensure reliability.
• IP43 Protection: With screw terminals facing downwards, the converter offers protection against foreign objects and splashing water, making it ideal for a variety of application environments.
• Easy Installation: Installation is simple and straightforward thanks to the screw terminals, which do not require special tools.
• Input Fuse: For added safety, a non-replaceable input fuse is integrated, available only with the 12V and 24V models.
• Adjustable Output Voltage: Although the converter is not directly suitable for charging batteries, the adjustable output voltage allows for versatile use. For battery charging applications, an Orion-Tr Smart charger is recommended.

The Victron Orion-Tr 48/48-2.5A (120W) isolated DC-DC converter is a high-quality solution for anyone looking for a reliable way to convert or regulate voltage within their electrical system without compromising safety or performance.

Dokumente & Downloads

• Datasheet Orion-TR isolated
• Manual Orion-TR isolated
