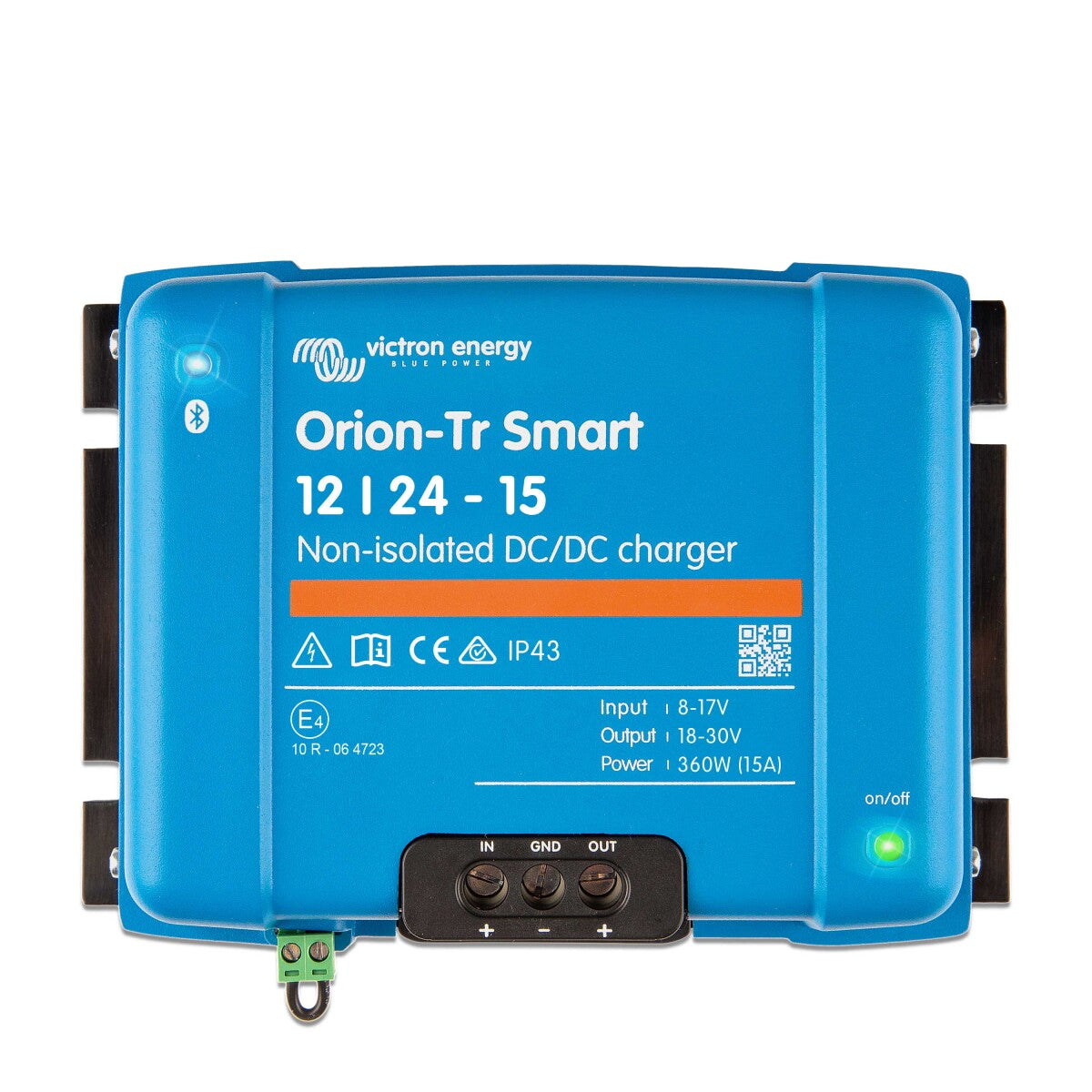

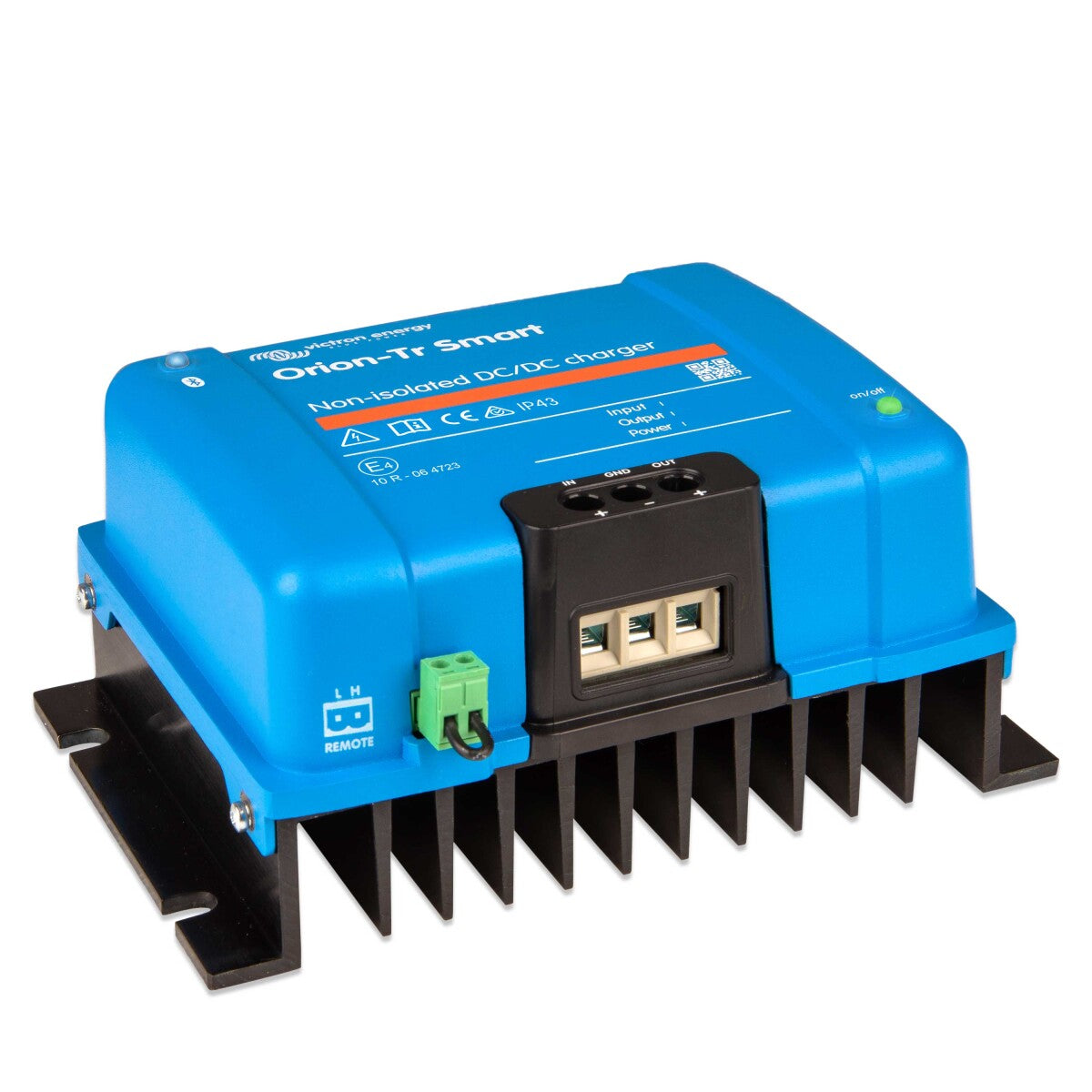

Victron Orion-Tr Smart 12/24-15A (360W) Non-isolated DC-DC charger

Victron Orion-Tr Smart 12/24-15A (360W) Non-isolated DC-DC Charger: Revolutionary Charging Solution for Lead-Acid and Lithium Batteries

Bluetooth Smart Technology
With the Orion-Tr Smart DC/DC charger, you can keep your battery charging systems up to date. Thanks to Bluetooth Smart compatibility, you can not only monitor the charging process and adjust settings with your smartphone, tablet, or other devices, but also perform updates for new software functions.

Full Programmability for Maximum Flexibility
Choose between a configurable battery charging algorithm or a fixed output. Utilize smart alternator compatibility for automatic engine-running detection. Benefit from the adaptive 3-stage charging algorithm (bulk, absorption, float), specially designed for lead-acid batteries to prevent overcharging and ensure a full charge after deep discharges. For lithium batteries, the absorption time is preset.

Easy Remote Control
The remote on/off switch or a relay contact can be easily connected. You have the choice to connect the terminal either directly to the battery or to the vehicle chassis.

Unlimited Expansion Possibilities
Short-circuit-proof models that can be paralleled to increase power. This allows you to easily connect as many devices as you need.

Integrated Protection for Longevity
Over-temperature protection: If ambient temperatures are too high, the output current is automatically reduced to protect the device. IP43 protection: Optimal safety with correct installation. Easy installation thanks to screw terminals, for which no special tools are required.

Whether you operate your system with lead-acid or lithium batteries, the Victron Orion-Tr Smart DC/DC charger offers you a future-proof solution to charge your batteries efficiently and safely.

Documents & Downloads

• Datasheet Orion-TR Smart non-isolated
• Manual Orion-TR Smart non-isolated
• Manual Victron Connect
