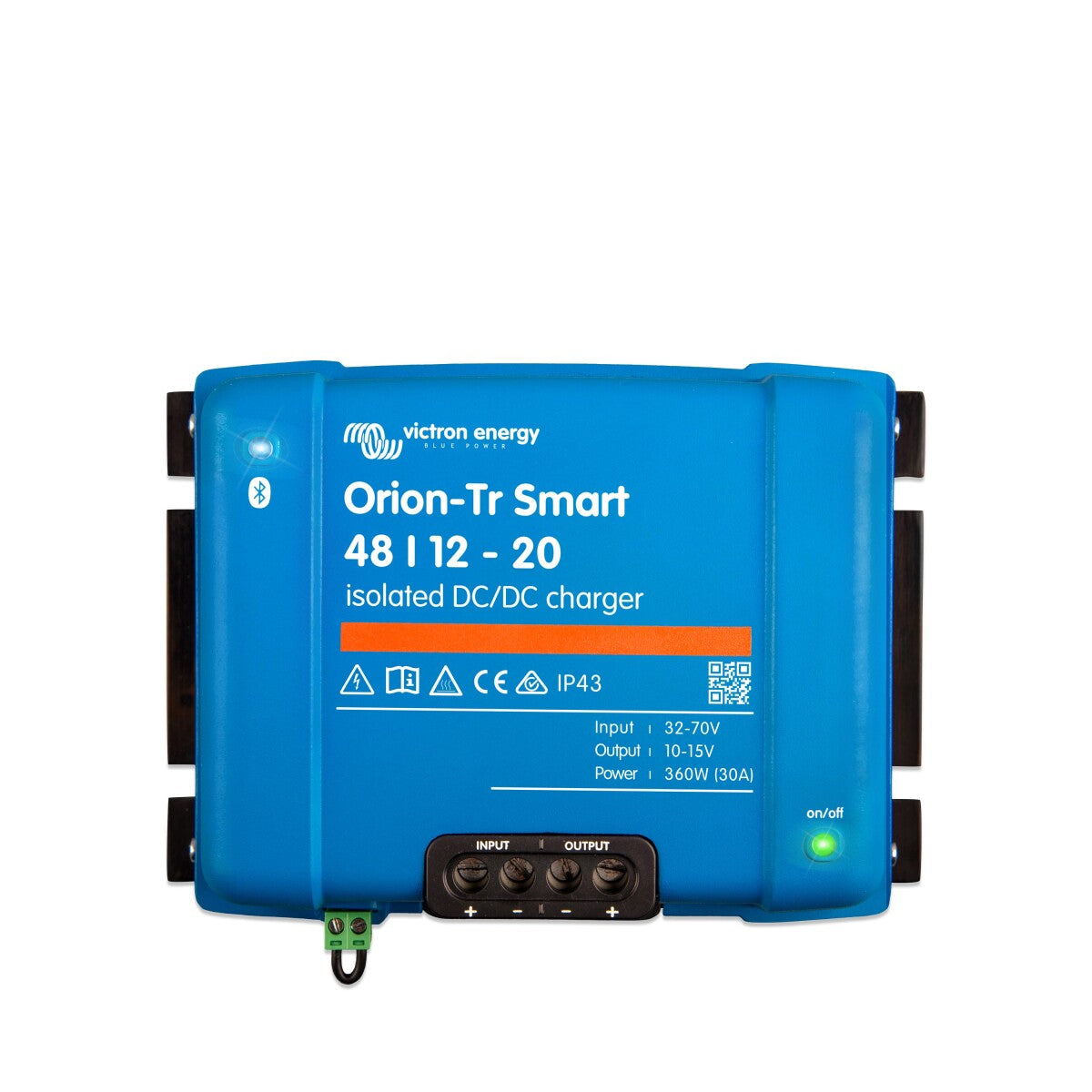

Victron Orion-Tr Smart 48/12-20A Isolated DC-DC charger

Victron Orion-Tr Smart 48/12-20A (Isolated) – Smart, Isolated DC-DC Charger for Demanding Applications

The Victron Orion-Tr Smart 48/12-20A is a powerful, galvanically isolated DC-DC charger that is ideal for charging 12V batteries from a 48V system. With up to 20A output current and freely configurable output voltage via Bluetooth, the device is particularly flexible – as a charging booster for service batteries, a voltage converter, or a constant current source.

Thanks to the adaptive 3-stage charging algorithm, the charging booster is perfect for lead-acid and lithium batteries. Galvanic isolation provides additional protection for the onboard electrical system – ideal for vehicles with Euro 5/Euro 6 engines or for long cable runs (e.g., in boats or motorhomes).

Key features at a glance

• Input voltage: 32–70V (suitable for 48V systems)
• Output voltage: 10–15V / 20A (240W), individually adjustable
• Galvanically isolated for maximum protection
• Programmable via Bluetooth & VictronConnect App
• 3-stage charging algorithm with lithium compatibility
• Constant voltage operation also possible

Smart, flexible, safe

• Automatically detects engine running (ideal for Euro 5/6 alternators)
• Prevents deep discharge of the starter battery when the engine is off
• Remote on/off possible
• Two status LEDs for operation and fault indication

Compact & robust for mobile use

• Dimensions: 130 × 186 × 80 mm
• Weight: only 1.2 kg
• Connection via screw terminals (up to 16 mm²)

The Victron Orion-Tr Smart 48/12-20A (Isolated) offers reliable DC-DC charging, full control via app, and maximum flexibility – an ideal solution for professional applications in motorhomes, boats, and off-grid systems.

Documents & Downloads

• Datasheet Orion-Tr Smart isolated
• Manual Orion-Tr Smart isolated
