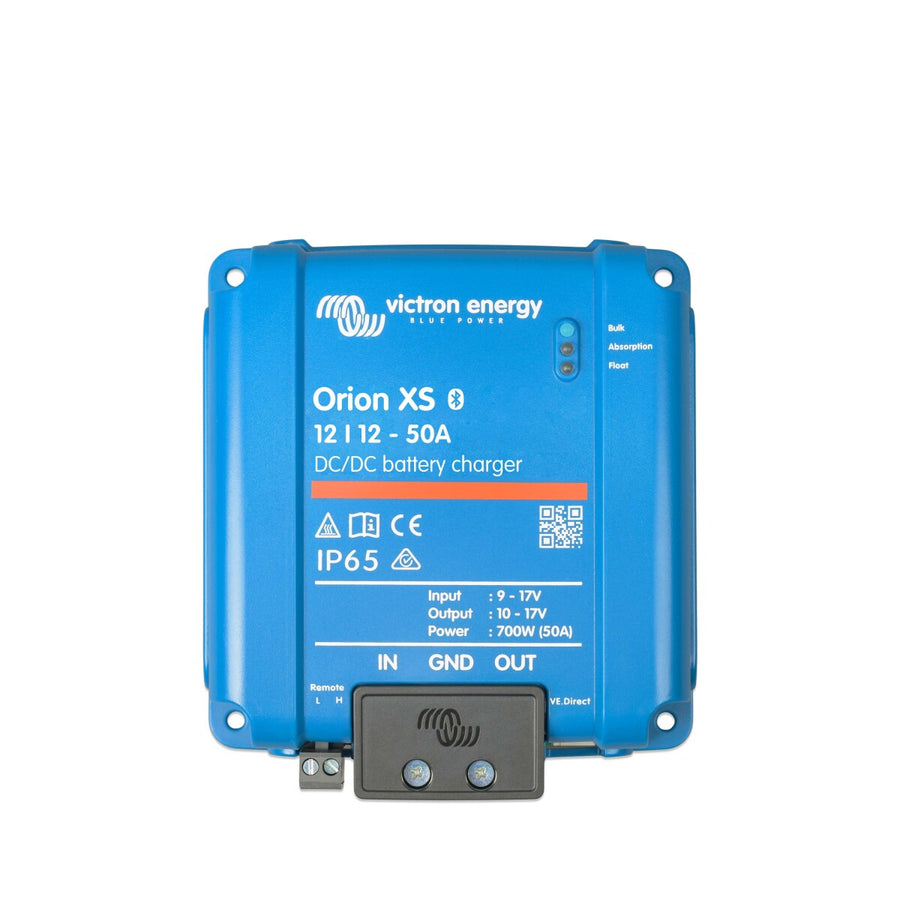

Victron Orion XS 12/12-50A DC-DC Battery Charger
Victron Orion XS 12/12-50 A – Powerful DC-DC Battery Charger with 98% Efficiency
With the Victron Orion XS 12/12-50 A 700 W DC-DC Battery Charger, you get a state-of-the-art charger that is not only powerful, but also efficient and flexible. It was specially developed for dual battery systems that are charged by a (smart) alternator – perfect for RVs, boats, and off-road vehicles. Thanks to VictronConnect, you always have full control, whether on-site or via remote monitoring.
Quick Overview
- Power: 700 W / 50 A output current
- Voltage Range: Wide input & output range
- Efficiency: Up to 98% without fan
- Protection Class: IP65 (dust & waterproof)
- Compatibility: Ideal for smart alternators (Euro 5 & Euro 6)
Maximum Charging Efficiency for Every Battery
The adaptive 4-stage charging algorithm automatically adjusts to your battery's state of charge:
- For lead-acid batteries, the constant voltage phase is shortened to prevent overcharging.
- After deep discharge, the charging time is extended for complete regeneration.
Choose from eight pre-programmed battery profiles or define your own charging parameters.
Your Benefits
- Fully configurable via VictronConnect App
- Engine shutdown detection for optimized charging
- Comprehensive electronic protection
- Parallel connection possible for higher output current
- Also functions as a stable power source
Remote Control & Integration
With the remote on/off switch, you can flexibly control the Orion XS – either directly via a cable switch or via a BMS. The engine running detection ensures that the device only operates when power is actually available from the alternator.
Technical Data
- Model: Victron Orion XS 12/12-50A (MPN ORI121217040)
- Power: 700 W
- Output Current: 50 A
- Efficiency: up to 98%
- Protection Class: IP65
- Functions: DC-DC charger & power source
- Charging Algorithm: Adaptive, 4-stage
- Compatible with: 12 V batteries (lead & lithium)
For Demanding Applications
Whether in an expedition vehicle, a sailboat, or a camper – the Victron Orion XS ensures reliable, fast, and safe charging of your service batteries. Thanks to its high efficiency and robust design, it is a reliable choice even under demanding conditions.
| Technical Data | Orion XS 12/12 - 50A |
| Input Voltage Range | 9 - 17 V |
| Output Voltage Range | 10 - 17 V |
| Adjustable range for input and output current | 1 - 50 V |
| Max. Charging Current | 50 A |
| Constant Output Power | 700 W |
| Max. Efficiency | 98.5 % |
| Weight | 330 g |
| Dimensions | 137.3 x 123.1 x 40 mm |
