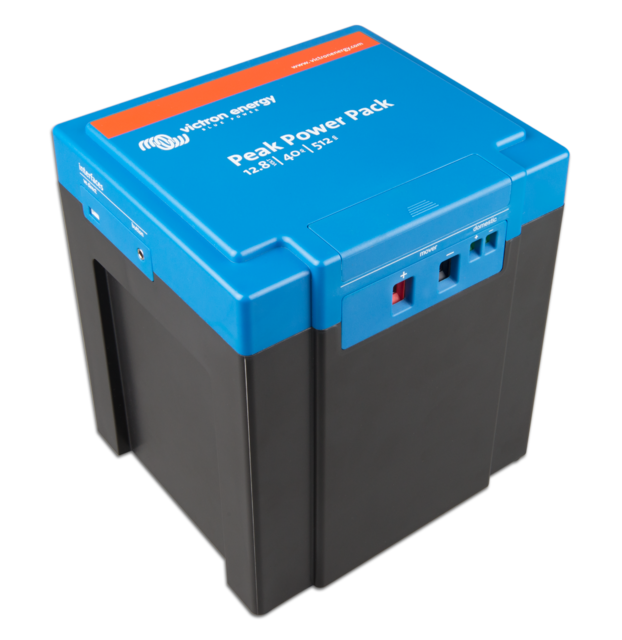

Victron Peak Power Pack 12.8V/40Ah Lithium Battery 512Wh

Victron Peak Power Pack PPP-40 Battery 12.8 V Nominal Voltage

The Peak Power Pack is a complete replacement for heavy lead-acid batteries in applications requiring high currents for short periods. Primarily designed for caravans, it features a built-in charger. This allows charging via the vehicle's electrical system while travelling with the caravan. This way, the pack is fully charged upon arrival at the campsite. If necessary, charging via the mains is also possible using the included adapter. Charging via a solar panel is also an option.

Nominal voltage: 12.8V
Battery capacity range: 40Ah

The practical Peak Power Pack batteries are characterized by the following features:

• Low weight and easy installation
• Effective protection against improper use
• Outputs:
  - "Mover": High-capacity output for caravan movers and other applications requiring a lot of energy.
  - "Domestic": for low DC loads (not available for the 8 Ah model).
• Inputs:
  - "Car/Solar": Charging while driving or via a solar panel.
  - "Adapter": The included adapter can be connected to this.
• Fast charging possible via the high-current output (high power output 1), only for 30 Ah and 40 Ah models.
• Storage mode reduces power consumption almost to zero by protecting against excessive discharge.
• Remote control with status indicator
• VE.Direct Port: Can be connected to a PC or a smartphone.
  ("VE.Direct to USB" cable or "VE.Direct Bluetooth Smart Dongle" required)

The Peak Power Pack can be charged via your vehicle, a solar panel, or a power connection at your campsite. If you charge the battery while driving, it will be fully charged upon arrival, and you can manoeuvre your caravan as desired. Thanks to the included cable, the Peak Power Pack is very easy to use. A push button operates a built-in LED light with different colours, which indicate the battery status.

Technical Data

Capacity (Ah)	40 Ah
Stored Energy (Wh)	512 Wh
Battery Type	Lithium-ion (LiFePO4)
Continuous current at output	150 A
Protection	Overload / Short circuit / Overtemperature / Deep discharge
Max. charging voltage	14.2 V
Operating temperature	-20°C to 40°C
Special features	Data exchange via USB or Bluetooth possible
Weight	8.6 kg
Dimensions (H x W x D)	212 x 190 x 172 mm
