Victron Phoenix Inverter 12/800 230V VE.Direct IEC

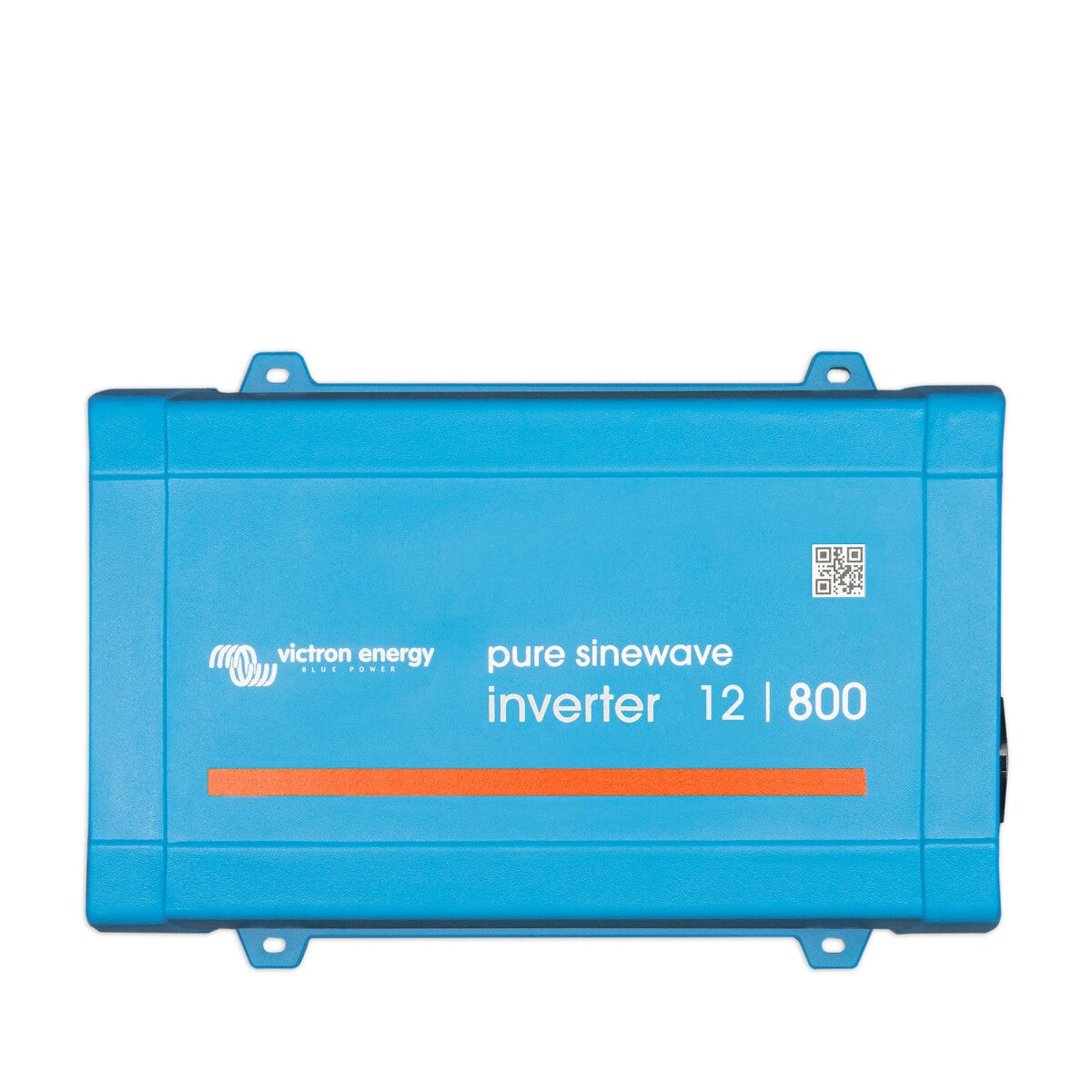

The Victron Phoenix Inverter 12/800 230V VE.Direct IEC

The VE.Direct port significantly expands the device's connectivity, allowing connection to:

• Computers (requires a VE.Direct to USB interface cable)
• Smartphones and tablets (Apple and Android), Macbooks or other devices (requires a VE.Direct Bluetooth Smart Dongle)

Full Configurability

The inverter offers extensive adjustment options:

• Thresholds for low battery alarm
• Thresholds for shutdown and restart at low battery voltages
• Dynamic cut-off based on load
• Adjustable output voltage between 210 – 245 V
• Selectable frequency of 50 Hz or 60 Hz
• ECO mode settings

Monitoring Functions

Monitored are:

• Input and output voltages
• Load percentage
• Alarm states

Proven Reliability

The combination of full bridge topology and ring transformer topology ensures durability and safety. The devices are short-circuit proof and protected against overheating, whether due to overload or high ambient temperatures.

High Start-up Power

The inverter is ideally suited for devices that require high start-up power, such as voltage converters for LED or halogen lamps, as well as power tools.

ECO Mode

In ECO mode, the inverter reduces its energy consumption by switching to standby mode at low load and only activating briefly to check if the load increases again.

Remote On/Off Switching

A remote on/off switch can be easily connected, allowing flexible control.

LED Diagnostics

The LED indicators provide quick diagnostic information according to the description in the manual.

Automatic Transfer Switch

For low-power inverters, the Filax Automatic Transfer Switch is recommended, which ensures uninterrupted operation of computer systems and other electronic devices through fast switching times.

Documents & Downloads

• Datasheet Phoenix 12/800
• Manual Phoenix 12/800
