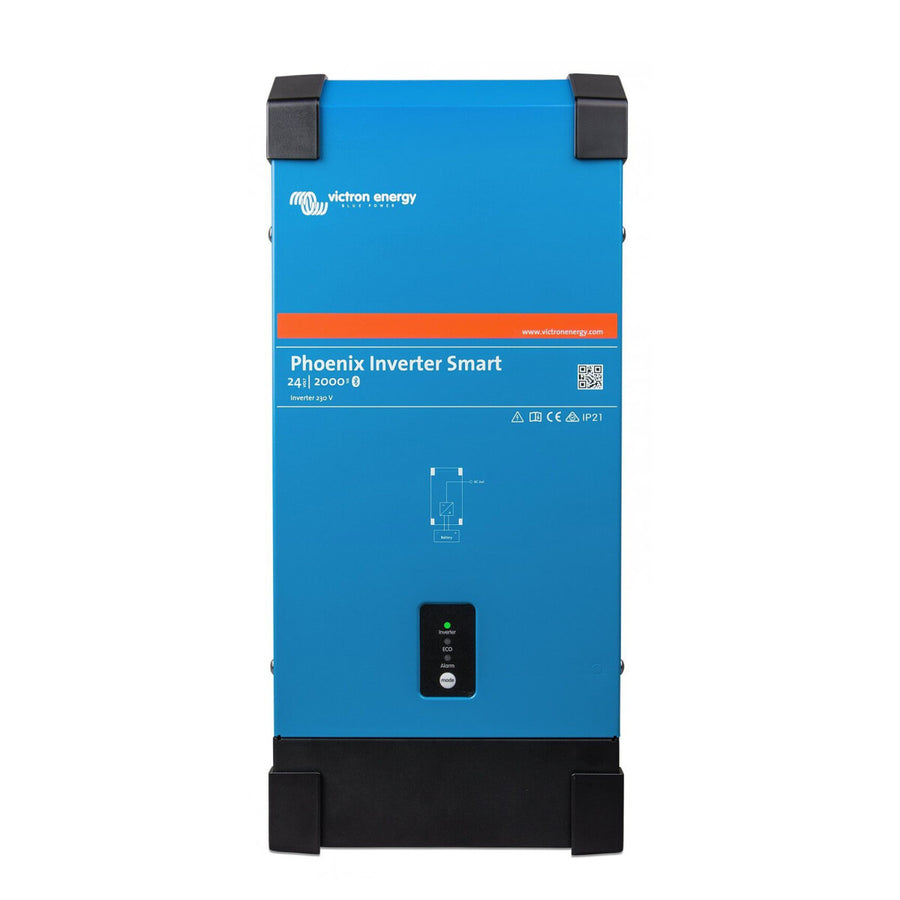

Victron Phoenix Inverter 24/2000 230V Smart

Victron Phoenix Inverter 24/2000 230V Smart: Your Smart Energy Manager

The Victron Phoenix Inverter 24/2000 230V Smart combines advanced technology and user-friendly features to elevate your energy supply to a new level. Thanks to the built-in Bluetooth function, the device can be easily configured and monitored via a tablet or smartphone.

Intuitive Bluetooth Control

Control your inverter comfortably and adapt it to your needs:

• Low battery voltage alarm
• Setting thresholds for shutdown and restart at low battery voltage levels
• Dynamic shutdown based on current load
• Adjustable output voltage (210 – 245 V) and frequency (50 Hz or 60 Hz)
• Configuration of ECO mode for energy efficiency

Comprehensive Monitoring

Keep important operating parameters such as input and output voltage, load, and alarms always in view to ensure safe and efficient operation.

VE.Direct for Extended Connectivity

The VE.Direct Port enables a direct connection to a computer, allowing the same parameters to be configured and monitored as via Bluetooth.

Reliability You Can Count On

With a proven combination of full bridging and toroidal transformer topology, the Phoenix Inverter offers robust protection against short circuits and overheating.

Powerful Starting of Your Devices

The high inrush current capability of the inverter is ideal for starting loads such as voltage converters for LED lamps, halogen lamps, or power tools.

Save Energy with ECO Mode

In ECO mode, the inverter reduces energy consumption by switching to standby mode when the load falls below a certain value, and regularly checks whether activation is necessary.

Flexible Remote Control

Take advantage of the option to connect a remote on/off switch or a relay contact for simple and direct control.

LED Diagnostics

The LED diagnostic function provides a quick and easy way to check the inverter's status. Details can be found in the manual.

Reliable Load Transfer

The Filax Automatic Transfer Switch ensures fast switching in less than 20 milliseconds to guarantee uninterrupted operation of your electronic devices. Alternatively, you can also choose a MultiPlus with a built-in transfer switch.

Documents & Downloads

• Datasheet Phoenix 24/2000
• Manual Phoenix 24/2000
