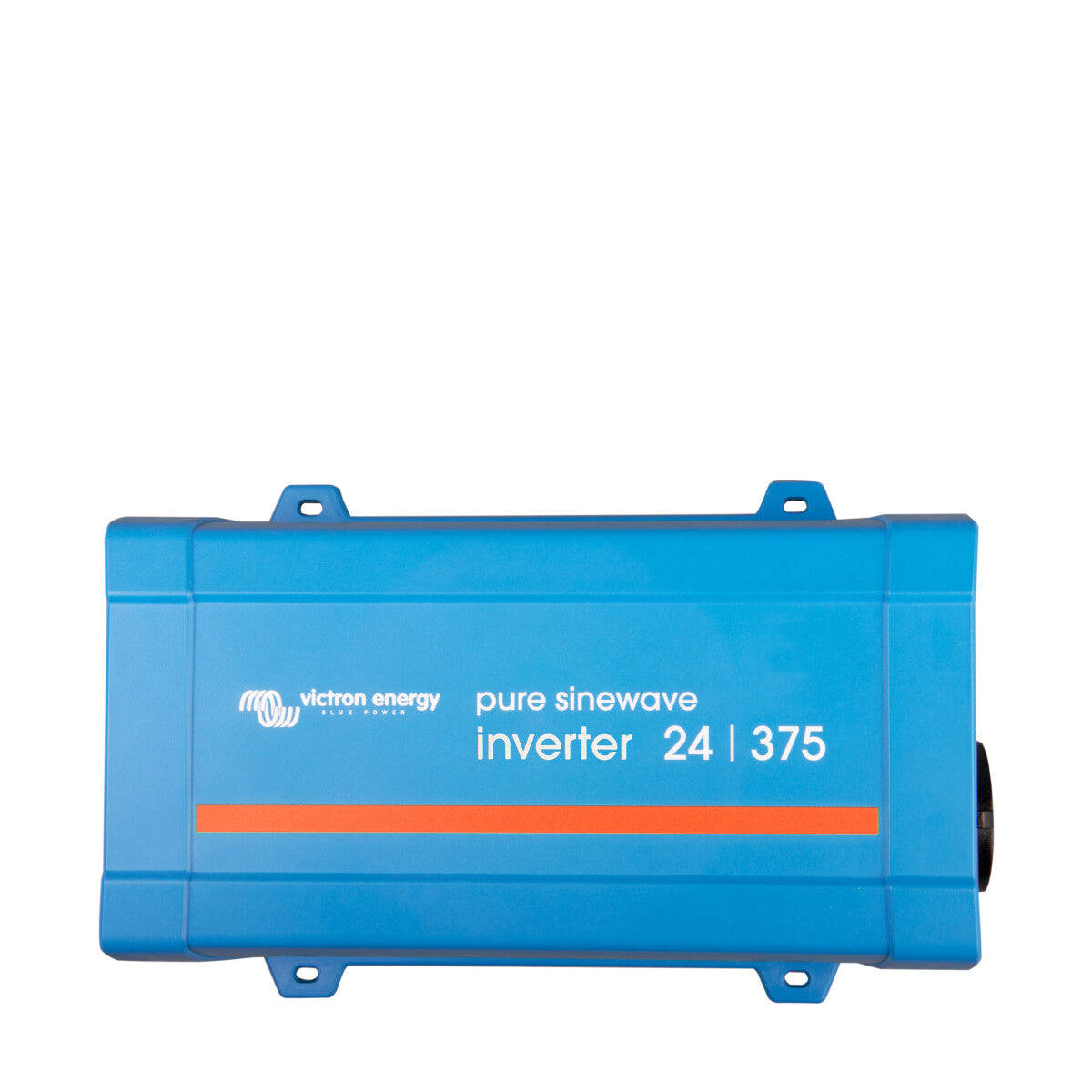

Victron Phoenix Inverter 24/375 230V VE.Direct SCHUKO

Discover the Victron Phoenix VE.Direct Schuko Inverter – Your Solution for Efficient Energy Conversion

The Victron Phoenix VE.Direct Schuko Inverter stands for high efficiency and reliability, with efficiency levels of up to an impressive 91%. Available in power ratings from 250VA (200W) to 1200VA (1000W) and in 12V and 24V versions, this inverter offers the right solution for every requirement. Equipped with a Schuko socket for AC output and a configurable ECO mode, the Phoenix inverter combines user-friendliness with powerful technology.

Protection functions for your safety:

• Short-circuit protection
• Overload protection for high inrush currents
• Overvoltage protection
• Configurable shutdown for low battery voltage
• Overheat protection

Extended Connectivity:

Connect your Phoenix VE.Direct inverter to the VictronConnect app via the Victron VE.Direct Bluetooth Smart Dongle to adjust settings, configure alarms, and control output parameters. For a direct connection to a computer, the VE.Direct to USB interface cable is available.

Note:

Please note that the internal DC fuse is not replaceable on all models. For detailed information on fuses and cable cross-section recommendations, please refer to the operating manual.

Documents & Downloads

• Datasheet Victron Phoenix 24/375
• Manual Victron Phoenix 24/375
