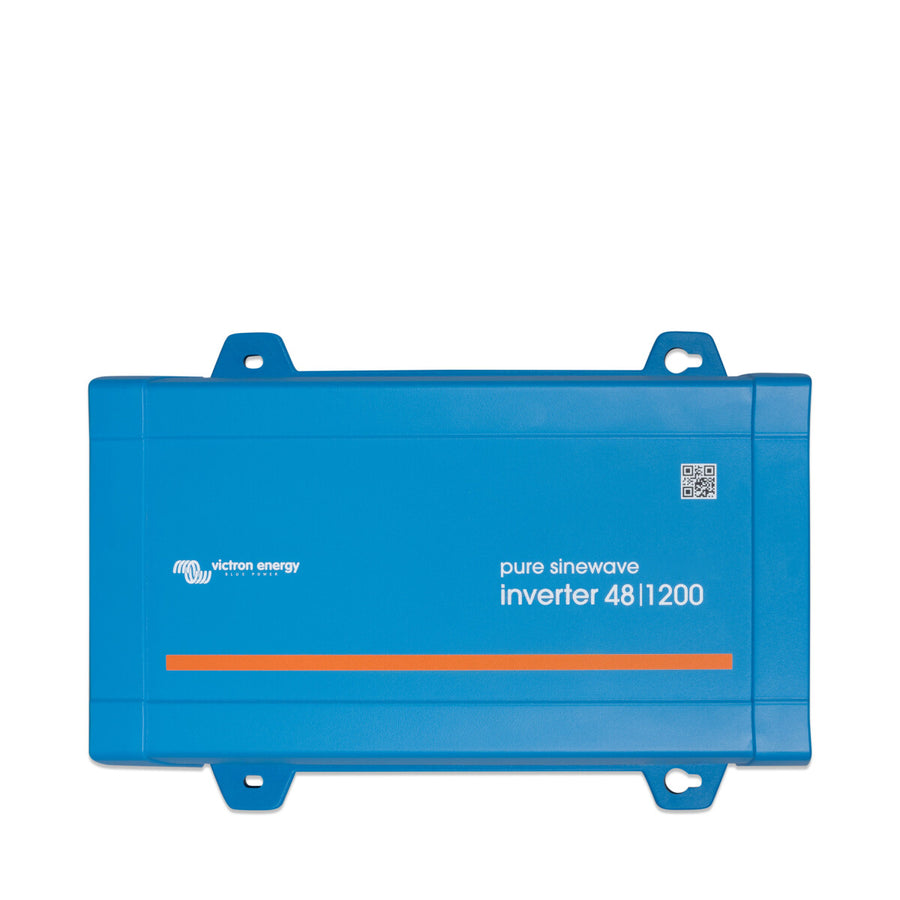

Victron Phoenix Inverter 48/1200 230V VE.Direct IEC

Victron Phoenix Inverter 48/1200 230V VE.Direct IEC: Your Smart Energy Partner

The Victron Energy Phoenix Inverter 48|1200, with a continuous power output of 1000W and a maximum power output of 2200W, is defined by the following points: This high-quality pure sine wave inverter enables disturbance-free operation of sensitive electronic devices such as televisions, shavers, power supplies, measuring equipment, and more.

With the optional VE.Direct Bluetooth dongle, the Victron Phoenix Inverter can also be remotely controlled and monitored. The integrated ECO mode also enables efficient use of your battery. At low loads, the inverter switches to standby mode and immediately returns to normal operation when more power is needed again. This is particularly battery-friendly for long-lasting loads.

The Victron Phoenix Inverter 48/1200 230V VE.Direct IEC is the ideal solution for an efficient and reliable power supply. With its advanced technology and the option for wireless configuration, it adapts perfectly to your individual needs.

Versatile Connectivity

• For PC: Connect effortlessly using a VE.Direct to USB interface cable.
• For mobile devices: Use the VE.Direct Bluetooth Smart Dongle to connect your smartphone, tablet, or MacBook.
• Customized Configuration

Set up your inverter exactly as you need it:

• Set alarm thresholds for low battery charge.
• Define thresholds for shutdown and restart at low battery voltage.
• Utilize dynamic shutdown that responds to the load.
• Adjust the output voltage (210 – 245 V) and frequency (50 Hz or 60 Hz).
• Configure ECO mode according to your preferences.
• Real-time Monitoring
• Keep constant track of input and output voltage, percentage load, and all alarms.

Proven Reliability

Thanks to the proven toroidal transformer topology and full bridging, the inverter is short-circuit proof and protected against overheating.

High Inrush Power

The inverter provides the necessary power to start loads such as voltage converters for LED lamps, halogen lamps, or power tools.

ECO Mode for Energy Efficiency

In ECO mode, the inverter switches to standby when the load falls below a preset value, and regularly checks whether it needs to become active again.

Remote Control for More Convenience

A remote on/off switch can be easily connected with the two-pole connector or directly to the battery.

LED Diagnostics

For quick troubleshooting, consult the manual to use the LED diagnostic functions.

Safe Operation with the Filax Automatic Transfer Switch

For uninterrupted operation, we recommend the Filax Automatic Transfer Switch, which guarantees rapid switching. Alternatively, a MultiPlus with a built-in transfer switch is also available.

Documents & Downloads

• Datasheet Phoenix 48/1200
• Manual Phoenix 48/1200
