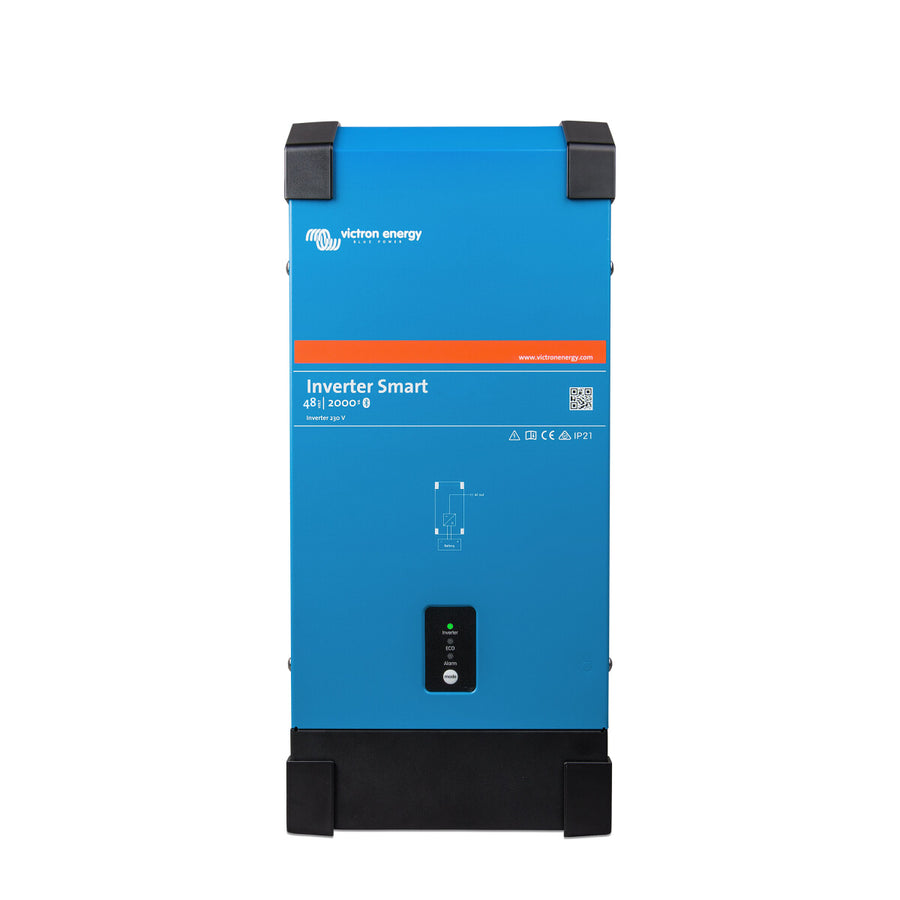

Victron Phoenix Inverter 48/2000 230V Smart

Victron Phoenix Inverter 48/2000 230V Smart: Full Control via Bluetooth

Discover the reliable performance of Victron sine wave inverters, known for their proven quality. The Phoenix Inverter Smart 48|2000 stands out with its 48 volts and a maximum continuous output of 1,600W (and an impressive 4,000W peak power). Enjoy stable voltage, frequency, and a first-class sine wave, packaged in a robust all-metal housing. Thanks to integrated Bluetooth, you can conveniently control the device via your smartphone and the VictronConnect app.

Easy Configuration via Your Mobile Device

With the Victron Phoenix Inverter 48/2000 230V Smart, you have the freedom to adjust your system directly via your tablet or smartphone, thanks to the built-in Bluetooth function. You can conveniently configure the following parameters:

• Low battery voltage alarm
• Low battery voltage shutdown and restart thresholds
• Dynamic cut-off based on load
• Output voltage between 210 – 245 V
• Frequency selectable 50 Hz or 60 Hz
• ECO mode settings for on/off and sensor
• Alarm relay
• Real-time monitoring
• Always keep track of input and output voltage, load, and alarms to optimally manage your system.

VE.Direct Communication Port for Extended Options

The VE.Direct port allows you to connect the inverter to a computer. With the VE.Direct to USB interface cable, you can configure and monitor the same parameters as via Bluetooth.

Reliability You Can Count On

Through full bridging and ring transformer topology, we offer you an inverter that is short-circuit proof and does not overheat even with overload or extreme ambient temperatures.

High Power on Startup

Do you need power to start loads such as LED lamps, halogen lamps, or power tools? This inverter delivers the necessary high inrush current.

Energy Efficiency with ECO Mode

In ECO mode, the inverter reduces energy consumption by entering standby mode when the load falls below a certain value. It briefly activates every 2.5 seconds to check if it needs to switch back on.

Remote Control for More Convenience

With a remote on/off switch or a relay contact connected to the two-pole connector, you have full control. You can also make a direct connection to the battery for even simpler handling.

LED Diagnostics for Quick Error Detection

A look in the manual will tell you how to check the status of your system with the LED diagnostic function.

Seamless Load Transfer For low-power inverters, our Filax Automatic Transfer Switch is the perfect choice to switch over in less than 20 milliseconds, ensuring uninterrupted operation. Alternatively, a MultiPlus with a built-in transfer switch is also available.

Documents & Downloads

• Datasheet Phoenix 48/2000
• Manual Phoenix 48/2000
