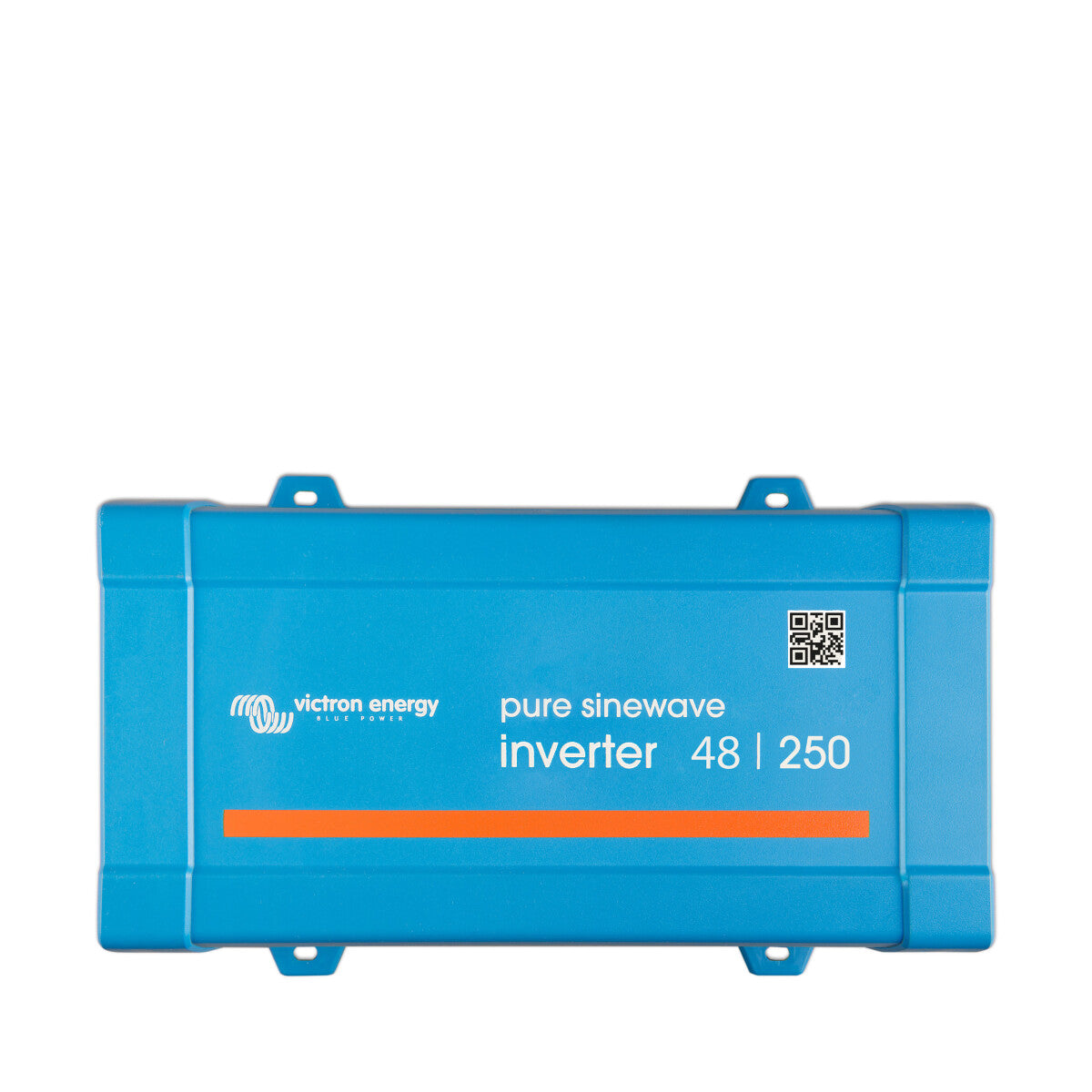

Victron Phoenix Inverter 48/250 230V VE.Direct IEC

Victron Phoenix Inverter 48/250 230V VE.Direct IEC: A complete solution for your energy needs

The Victron Phoenix Inverter 48/250 230V VE.Direct IEC offers you seamless and flexible energy management that integrates perfectly into your existing system. With its advanced technology and extensive configuration options, it is the ideal choice for a reliable power supply.

Simple and Versatile Connectivity

• With a computer: Simply connect the inverter via the VE.Direct to USB interface cable.
• With mobile devices: Apple and Android smartphones, tablets, Macbooks and other devices can be easily paired with the VE.Direct Bluetooth Smart Dongle.
• Fully configurable to your wishes
• Alarm thresholds: Set when alarms for low battery charge are triggered and reset.
• Shutdown and restart thresholds: Determine the battery voltage values for shutdown and restart.
• Dynamic shutdown: Automatically adapts to the current load.
• Output voltage and frequency: Choose between 210 – 245 V and 50 Hz or 60 Hz.
• ECO mode: Configure the threshold for ECO mode on/off and the ECO mode sensor.
• Monitoring at a glance
• Keep an eye on input and output voltage, the percentage load and all alarms to ensure smooth operation.

Reliability that convinces

Thanks to the toroidal transformer topology and full bridging, the inverters are short-circuit proof and protected against overheating – for years of safety and reliability.

High Inrush Power

The high inrush power enables the problem-free switching on of loads such as voltage converters for LED lamps, halogen lamps or power tools.

Energy efficient with ECO mode

ECO mode minimizes energy consumption by switching the inverter to standby mode when the load falls below a preset value. It reactivates automatically when needed.

Easy Remote Control

With a remote on/off switch that can be easily connected with a two-pin plug or directly to the battery, you have full control.

LED Diagnostics

The LED diagnostics function makes it easier to check the system status – for quick and effective troubleshooting.

Seamless Load Transfer

The Filax Automatic Transfer Switch ensures lightning-fast switching in less than 20 milliseconds, guaranteeing uninterrupted operation of computers and other electronic devices.

With the Victron Phoenix Inverter 48/250 230V VE.Direct IEC, you have a powerful and adaptable solution that makes your power supply reliable and efficient.

Documents & Downloads

• Datasheet Phoenix 48/250
• Manual Phoenix 48/250
