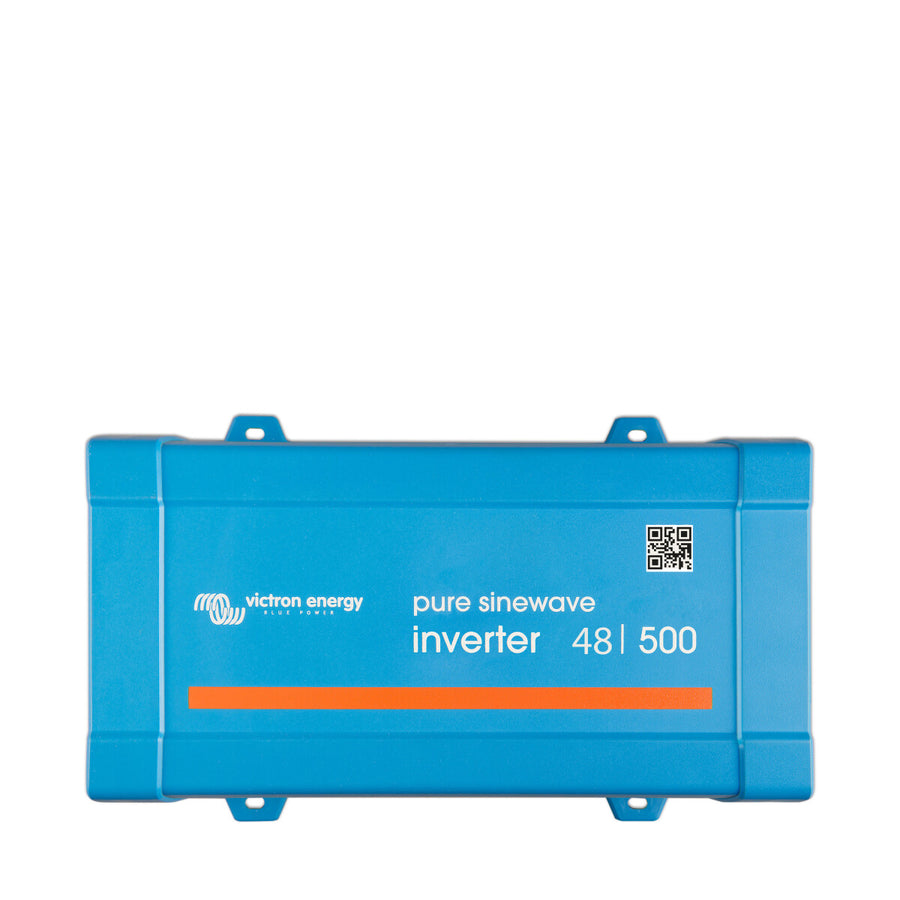

Victron Phoenix Inverter 48/500 230V VE.Direct IEC

Discover the possibilities with VE.Direct

Connect and customize

With the VE.Direct communication port, you have the freedom to connect a wide range of devices easily and directly:

• Computers: Grab a VE.Direct to USB interface cable, and you're connected.
• Smartphones and Tablets: Whether Apple or Android, pair your device in an instant with the VE.Direct Bluetooth Smart Dongle.
• Design to your wishes

The VE.Direct port gives you full control over your settings:

• Set thresholds at which alarms for low battery charge are triggered and reset.
• Determine at which battery voltage values your system should shut down and restart.
• Use dynamic shutdown, which adjusts to the current load.
• Set your desired output voltage between 210 – 245 V and the frequency to 50 Hz or 60 Hz.
• Activate or deactivate ECO mode and adjust the ECO mode sensor to your needs.
• Always keep an eye on everything
• Always monitor input and output voltage, percentage load, and all alarms to optimally manage your system.

Reliability you can count on

Thanks to the proven combination of full bridge and toroidal transformer topology, you can rely on your inverters to perform even under extreme conditions – they are short-circuit proof and protected against overheating.

Strong performance when it counts

Do you need power to start your LED lamps, halogen lamps, or power tools? The high inrush power has you covered.

Save energy with ECO mode

ECO mode reduces energy consumption by having the inverter switch to standby when the load falls below a set value. If the load remains consistently above this value, the inverter stays active.

Remote control made easy

With a remote on/off switch that you can easily connect with a two-pole plug, you have full control.

Diagnose with LEDs

A look at the manual will tell you how to quickly identify problems using LED diagnostics.

Switching AC sources? No problem!

Our Filax Automatic Transfer Switch is the first choice for low-power inverters. Switching is lightning-fast, taking less than 20 milliseconds, ensuring uninterrupted operation even with sensitive devices like computers.

Documents & Downloads

• Datasheet Phoenix 48/5000
• Manual Phoenix 48/500
