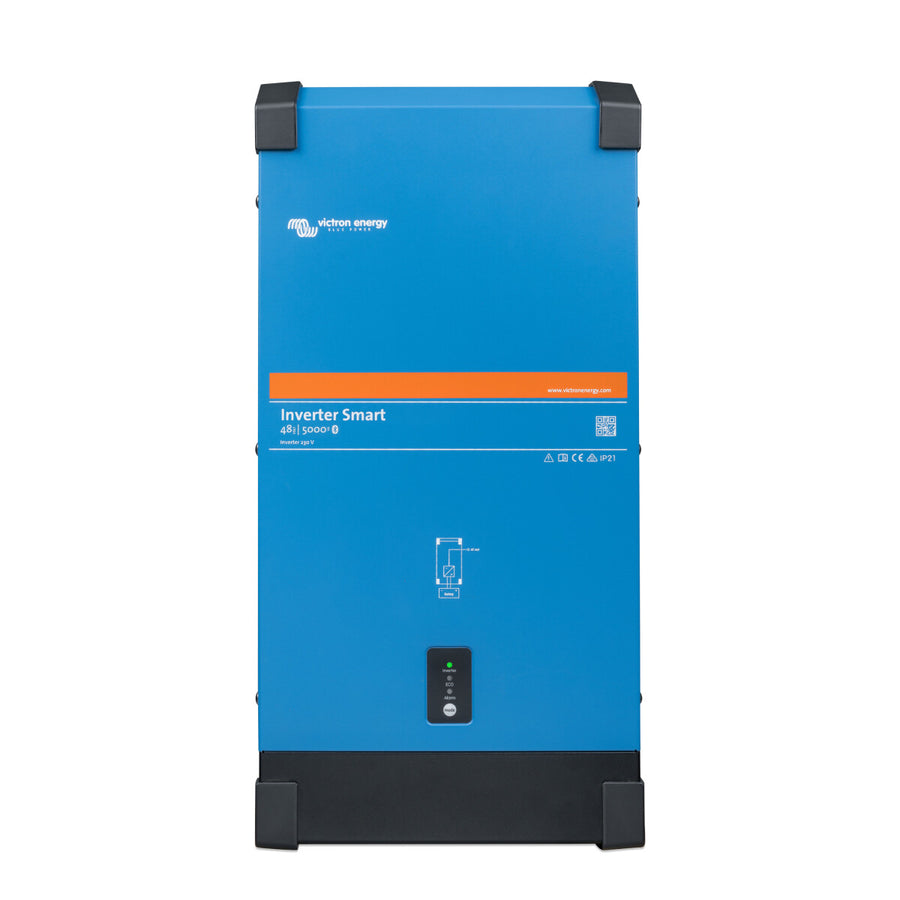

Victron Phoenix Inverter 48/5000 230V Smart

Optimize Your Power Supply with the Victron Energy Phoenix 48/5000 Smart Inverter

The Victron Energy Phoenix 48/5000 Smart Inverter marks the pinnacle of inverter technology. This top-of-the-line device, based on the proven Phoenix series, stands out not only with its impressive continuous power output of 5000W, but is also specially designed for 48V battery voltages. The Phoenix Smart series distinguishes itself from its predecessors with additional features such as the integrated Bluetooth module and the VE.Direct output. These functions facilitate wireless remote monitoring and system configuration, allowing you to revolutionize your energy efficiency and system management.

Outstanding Performance Features

The Phoenix 48/5000 Smart Inverter impresses with its exceptional performance and reliability. With its ability to handle high inrush currents and the integrated ECO mode that reduces self-consumption, this inverter redefines the standard in its class. Key features include:

• Designed for 48V battery voltage with an output voltage of 230 VAC ±2%.
• Impressive output power of 5000W and a linear continuous load of 4000W at 25 degrees Celsius ambient temperature.
• Ability to handle peak loads up to 10000W, ideal for devices with high starting currents.
• Wireless monitoring and system integration thanks to the integrated Bluetooth module and VE.Direct port.
• Designed for high inrush currents, with integrated alarm relay and ECO mode.

Flexible Configuration and Monitoring

The Phoenix Smart series offers extensive configuration options via Bluetooth or VE.Direct, including:

• Setting low battery voltage alarms.
• Setting thresholds for shutdown and restart at low battery voltages.
• Dynamic shutdown depending on the load.
• Adjustments for output voltage, frequency, and ECO mode.

Reliability through Advanced Technology

The application of toroidal transformer topology in the Phoenix Smart inverters guarantees outstanding reliability and protection against short circuits and overheating. This proven technology promises long-lasting performance and safety for your system.

The ECO Mode: Saving Energy

The integrated ECO mode of the Phoenix 48/5000 Smart Inverter optimizes energy consumption by switching the inverter to standby mode as soon as the load falls below a preset value. This ensures efficient energy use and reduces self-consumption.

Remote Operation

The option to connect a remote on/off switch or relay via the two-pole connector extends flexibility and convenience in system management. This option enables seamless integration into existing systems and simplifies handling.

Documents & Downloads

• Datasheet Phoenix 48/5000
• Manual Phoenix 48/5000
