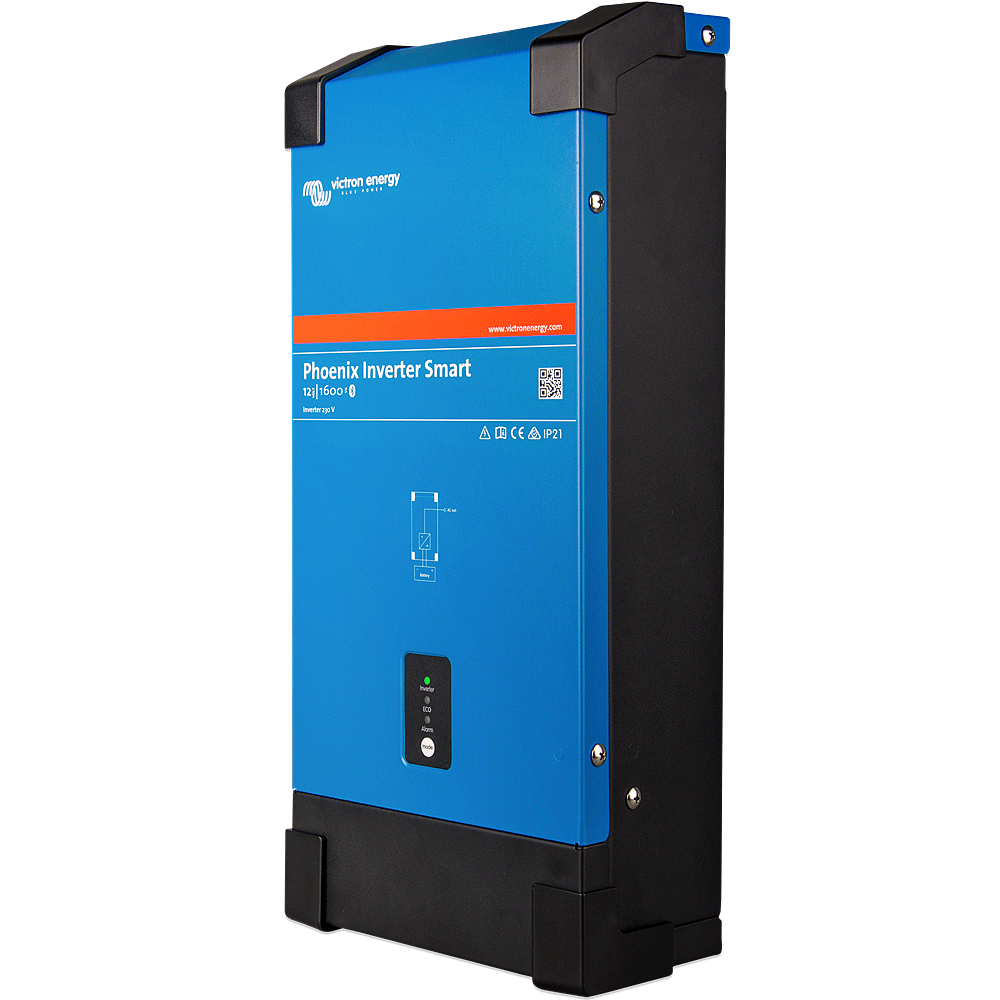

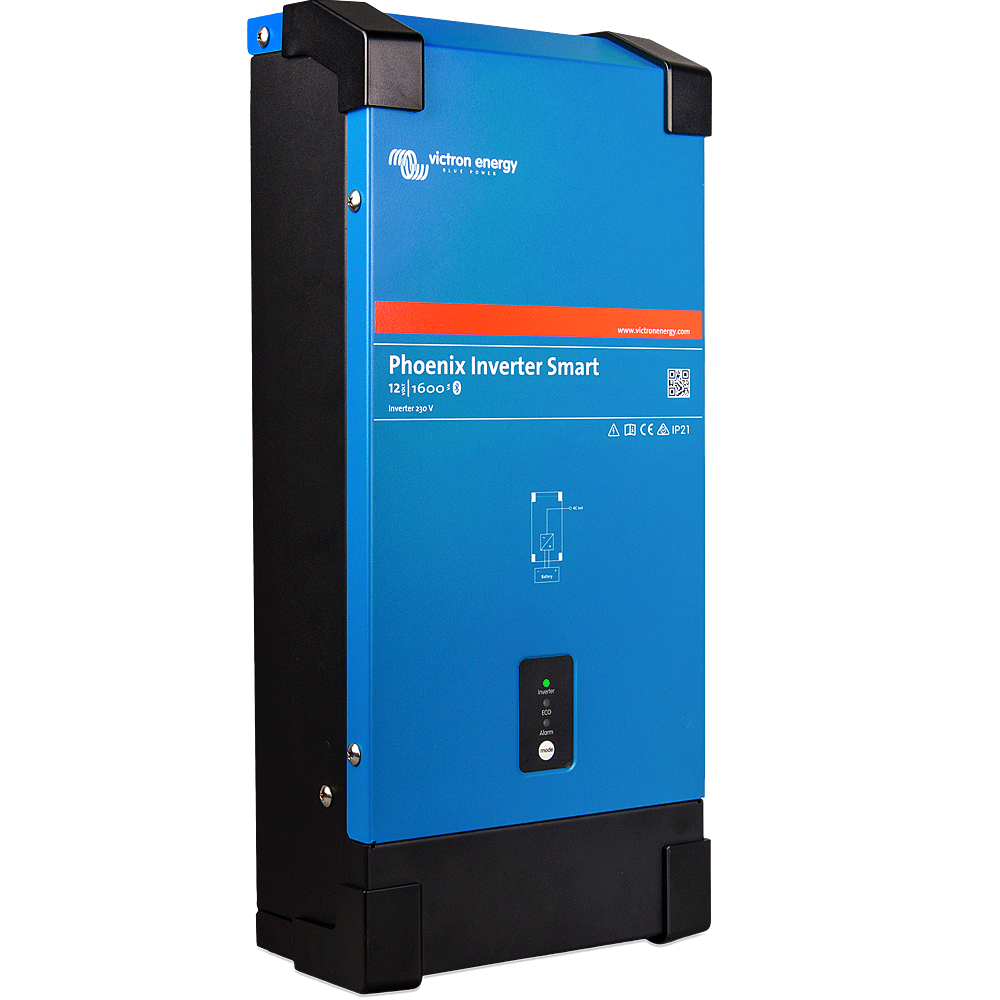

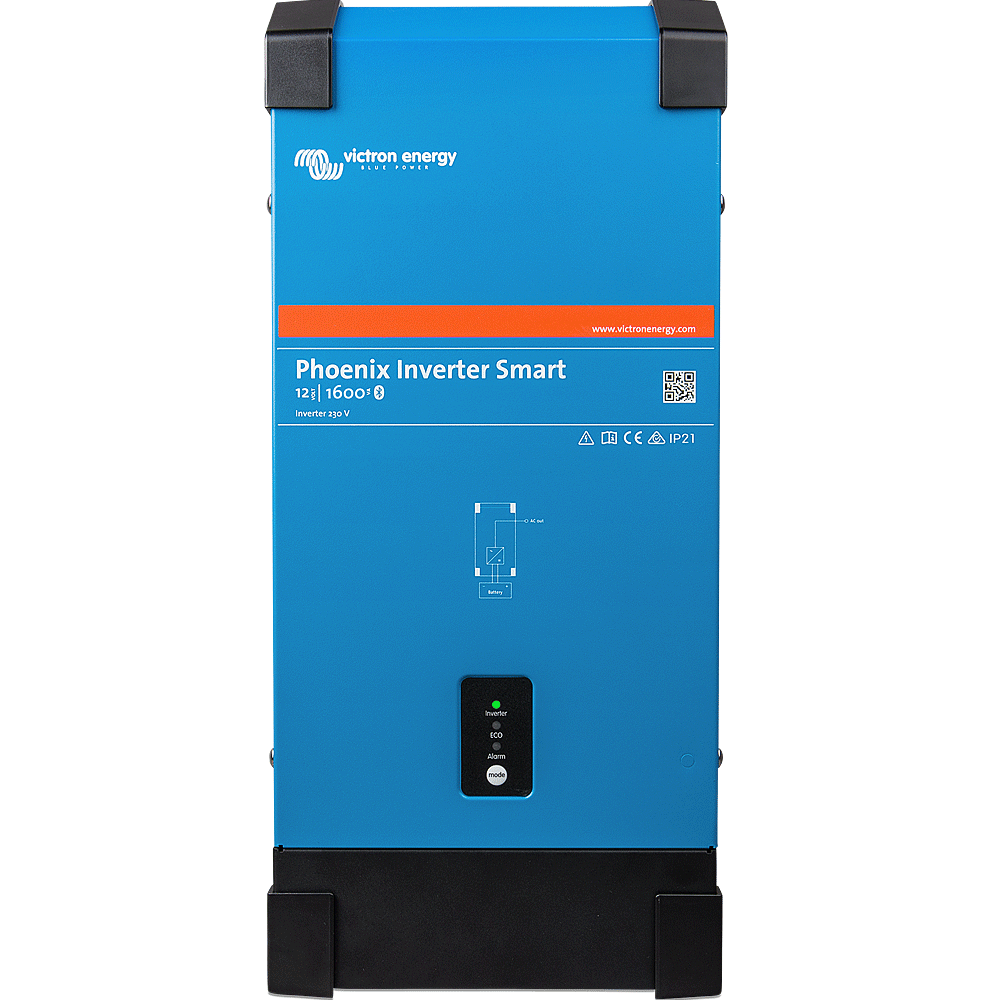

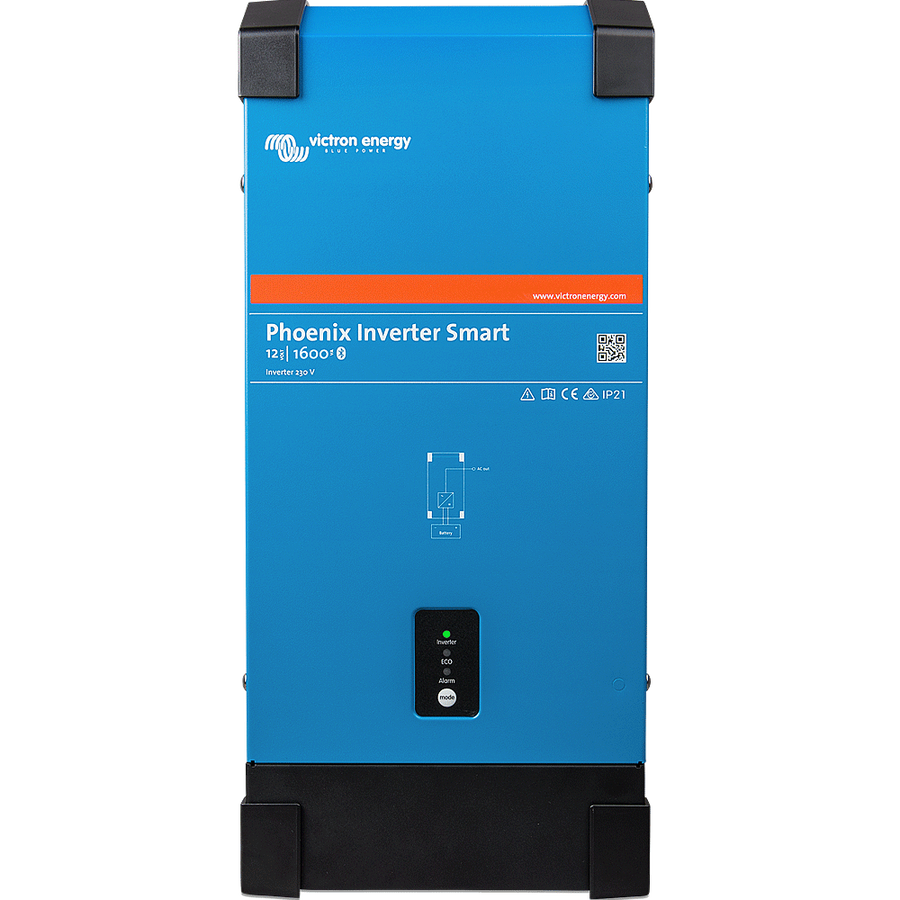

Victron Phoenix Smart 12/1600 Inverter 1300 W Bluetooth
Victron Phoenix Smart 12/1600 Inverter 1300 W Bluetooth
SKU:WS300-30172
Regular price
€424,56 EUR
Regular price
Sale price
€424,56 EUR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Victron Inverter 1300 W Continuous Power for 12 V Systems with Integrated Bluetooth
The Victron Phoenix 12/1600 Smart is a high-quality inverter, perfectly suited to power your 230 V household appliances with a pure sine wave voltage.The convenient Bluetooth function allows you to monitor and program the device using your smartphone or tablet.
VE.Direct communication port
The VE.Direct port can be connected to a computer (a VE.Direct to USB interface cable is required) to configure and monitor the same parameters.
Proven reliability
The full bridging, additionally with a toroidal transformer topology, has proven itself for years.
The inverters are short-circuit proof and protected against overheating (whether caused by overload or ambient temperature).
High Inrush Power
This is required for switching on loads such as voltage converters for LED lamps, halogen lamps or power tools.
ECO mode
In ECO mode, the inverter switches to standby as soon as the load drops below a preset value. In standby mode, the inverter then switches on for a short period every 2.5 seconds (adjustable).
If the load exceeds the preset threshold, the inverter remains switched on.
Remote On/Off switching
A remote on/off switch or a relay contact can be connected to the two-pole plug.
Alternatively, terminal H (left) of the two-pole plug can be connected to a battery positive terminal, or terminal L (right) of the two-pole plug can be connected to the battery negative terminal (or, for example, to the chassis of a vehicle).
The device is characterized by
- Built-in Bluetooth function for convenient remote monitoring
- 230 V pure sine wave voltage with high output power
- Fully configurable via tablet or smartphone.
- Low battery voltage alarm
- Thresholds for switching off and restarting at low battery voltage values.
- Dynamic shutdown: load-dependent shutdown threshold
- Output voltage: 230V AC
- Frequency: 50 Hz or 60 Hz
- Threshold for ECO mode on/off and ECO mode sensor
