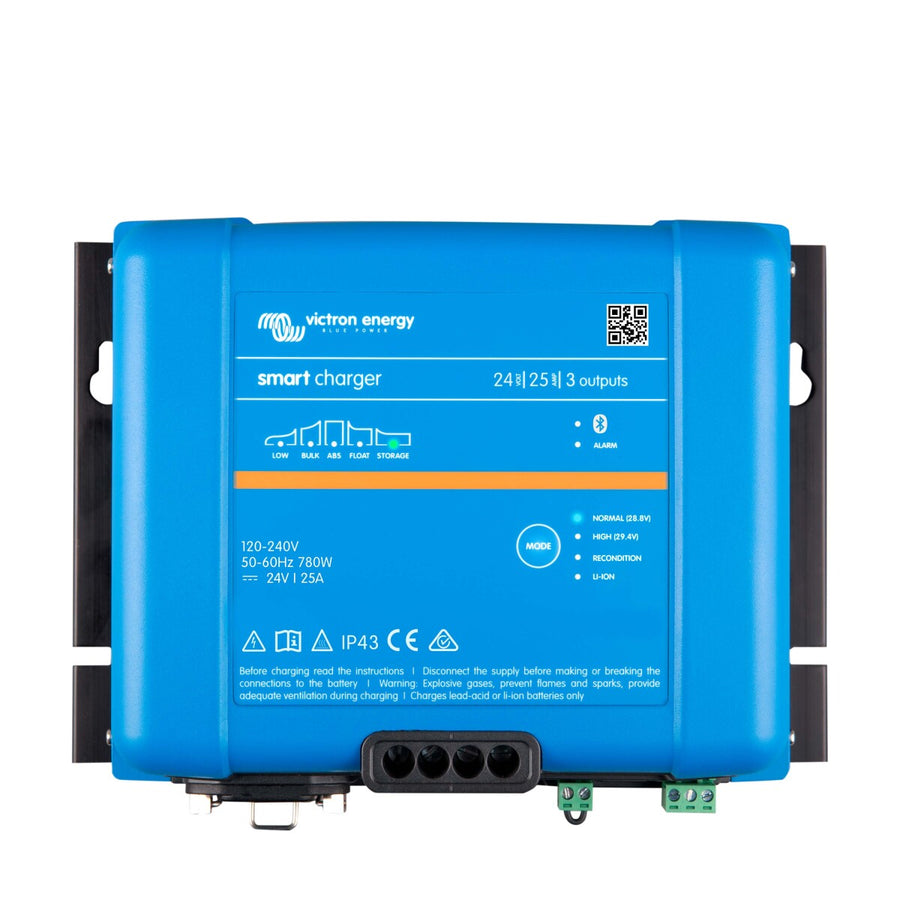

Victron Phoenix Smart IP43 Charger 24/25 (3)

Victron Phoenix Smart IP43 Charger 24/25 (3) – 24 V battery charger with 25 A, 3 charging outputs & Bluetooth

The Victron Phoenix Smart IP43 Charger 24/25 (3) is an intelligent 24 V battery charger with up to 25 A charging current and three equivalent charging outputs. Each output can individually supply up to 25 A (total max. 25 A) – ideal if you want to supply several battery banks or consumers cleanly and flexibly. Via Bluetooth and the – for stable performance and a longer service life. Using the, you can conveniently monitor and configure the charger by smartphone, tablet or laptop. With VE.Direct and VE.Smart Networking, it is also perfectly suited to modern Victron systems.

3 equivalent charging outputs – more flexibility on board

Unlike classic solutions with a separate maintenance output, this model offers three full-value main outputs. Depending on your system set-up, you can charge several batteries without having to commit to a “main battery plus maintenance” arrangement – and you keep full control over the set-up.

Suitable modes for common battery types – fully programmable

The charger provides dedicated modes for lead, AGM and gel and is fully programmable. This lets you set the charge to suit the battery – an important point if you want to care for the battery gently in the long term and get it reliably full.

Adaptive 6-stage charging algorithm

The adaptive 6-stage algorithm adapts the charging process to the battery condition. This means charging is not “rigid” but done so that battery care and reliable charging go together – particularly practical with changing usage (e.g. seasonal, periods of standing, shore power).

Remote on/off & programmable relay – directly integrated

For system integration, the Phoenix Smart IP43 comes with Remote On/Off and a programmable relay. This allows the charger to be integrated cleanly into an energy or switching concept without necessarily requiring additional accessories.

Protection rating & connection: made for practical installation

The electronics are protected to IP43 (connection area IP22). Mains connection is via an IEC C14 appliance inlet (mains cable separate); on the DC side, connection is via screw terminals up to 16 mm² – practical for a tidy, service-friendly installation.

Your benefits at a glance

• 24 V / 25 A battery charger for reliable charging in the system
• 3 equivalent charging outputs (up to 25 A per output, total max. 25 A)
• Bluetooth + – for stable performance and a longer service life. Using the for monitoring & configuration
• VE.Direct and VE.Smart Networking for modern Victron integration
• Adaptive 6-stage charging algorithm for appropriate battery care
• Remote On/Off and a programmable relay integrated
• IP43 (electronics) / IP22 (connection area) for installation

Note: The mains cable is separate. External battery sensing/temperature information can be added – depending on the set-up – via compatible Victron components (e.g. Smart Battery Sense, SmartShunt or BMV-712).

Documents & downloads

• Data sheet Phoenix Smart IP43 24/25
• Manual Phoenix Smart IP43 24/25
