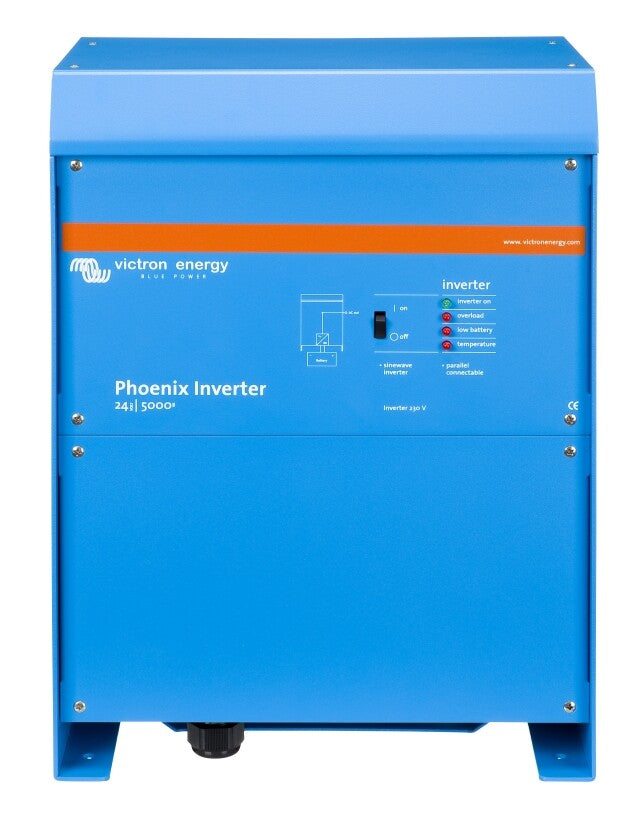

Victron Phoenix VE.Bus 24/5000 Inverter 4000 W

Victron Inverter 4000 W Continuous Power for 24 V Systems

SinusMax – Leading Technology
The Phoenix inverter series was developed for commercial use; it is suitable for a variety of applications. The development uncompromisingly aimed at an inverter with a clean sine wave output at high efficiency. By applying the latest hybrid HF technology, it was possible to introduce a quality product with compact dimensions and low weight, which can easily deliver any desired power.Highest Start-up Power
A key feature of SinusMax technology is its particularly high start-up power. This is not possible with conventional HF technology. Phoenix inverters are able to handle high inrush currents, e.g., from refrigeration compressors, power tool motors, and similar devices.

Virtually Unlimited Power through Parallel Connection and Three-Phase Operation
Up to six inverter units can be connected in parallel to increase power. Six 24/5000 units, for example, can deliver 24kW / 30kVA of power. Three-phase operation is also possible. Load switching to other AC sources: The automatic load transfer switch For smaller outputs, we recommend the Filax automatic transfer switch. Computers and other sensitive electronic devices can thus continue to operate virtually uninterrupted, as the switching times are very short (under 20 msec).

Computer Interfaces
All models have an RS-485 port. You only need our MK2 Interface (see also under Accessories). This interface provides galvanic isolation between the inverter and the computer and converts from RS-485 to RS-232. An RS-232 to USB conversion cable is also available. With our VEConfigure software, which can be downloaded free of charge from our website www.victronenergy.com, the inverters can be adapted as required. This includes the output voltage and frequency, the upper and lower voltage limits, and the programming of the relay. The relay can be used, for example, to generate signals in special situations or to start a generator.

The inverters can also be used with VENet, Victron Energy's innovative power monitoring network, or other computer-based control and monitoring systems.

Technical Data

Item Number	300-3022
Manufacturer Part Number	PIN245020000
Product Type	12V DC to 230V AC Voltage Converter. The voltage converter has a pure sine wave and should be connected directly to the battery/accumulator.
Manufacturer	Victron Energy
AC Continuous Power (W)	4000W
Input Voltage Range (V DC)	19 - 33V
Output Voltage (V)	230V AC / Alternating Current
No-load Consumption	30W
AC Output Frequency Range (Hz)	50Hz / +-0.1Hz or 50Hz / +-0.1Hz (adjustable)
Power Quality	true sine wave
No-load Consumption in Power Saving Mode	10W
Operating Ambient Temperature Range	-40°C to 65°C
IP Protection Class	IP21
AC Peak Power (W)	10000W
Permissible Humidity	max. 95 % RH
Voltage Regulation	24V DC / 230V AC
Dimensions (LxWxH)	44.4 x 32.8 x 28 cm
Weight	28.00 kg
