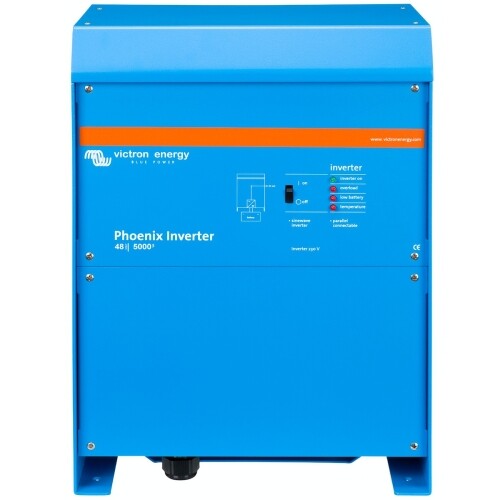

Victron Phoenix VE.Direct 48/5000 Inverter

Victron Phoenix Inverter VE.Direct 48/5000

SinusMax – Superior engineering

The Phoenix inverter series was developed for commercial use and is suitable for a wide range of applications. The development uncompromisingly aimed at an inverter with a clean sine wave output at high efficiency. By applying the latest hybrid HF technology, it was possible to introduce a quality product with compact dimensions and low weight, which can easily deliver any desired power.

High start-up power

A key feature of SinusMax technology is its particularly high start-up power. This is not possible with conventional HF technology. Phoenix inverters are able to handle the high inrush currents of, for example, refrigeration compressors, power tool motors and similar equipment.

Virtually unlimited power through parallel connection and three-phase operation

Up to six inverter units can be connected in parallel to increase power. For example, six 24/5000 units can deliver 24kW / 30kVA of power. Three-phase operation is also possible. Load transfer to other AC sources: The automatic load transfer switch For smaller loads, we recommend the Filax automatic transfer switch. Computers and other sensitive electronic devices can continue to operate practically without interruption, as the switching times are very short (under 20 msec).

Computer interfaces

All models have an RS-485 port. You only need our MK2 interface (see also under accessories). This interface provides galvanic isolation between the inverter and the computer and converts from RS-485 to RS-232. An RS-232 to USB conversion cable is also available. With our VEConfigure software, which can be downloaded free of charge from our website www.victronenergy.com, the inverters can be adjusted as required. This includes the output voltage and frequency, the upper and lower voltage limits, and the programming of the relay. The relay can, for example, be used to generate signals in special situations or to start a generator.

The inverters can also be used with VENet, Victron Energy's innovative power monitoring network, or other computer-controlled regulation and monitoring systems.

Technical data

Documents & Downloads

• Datasheet
