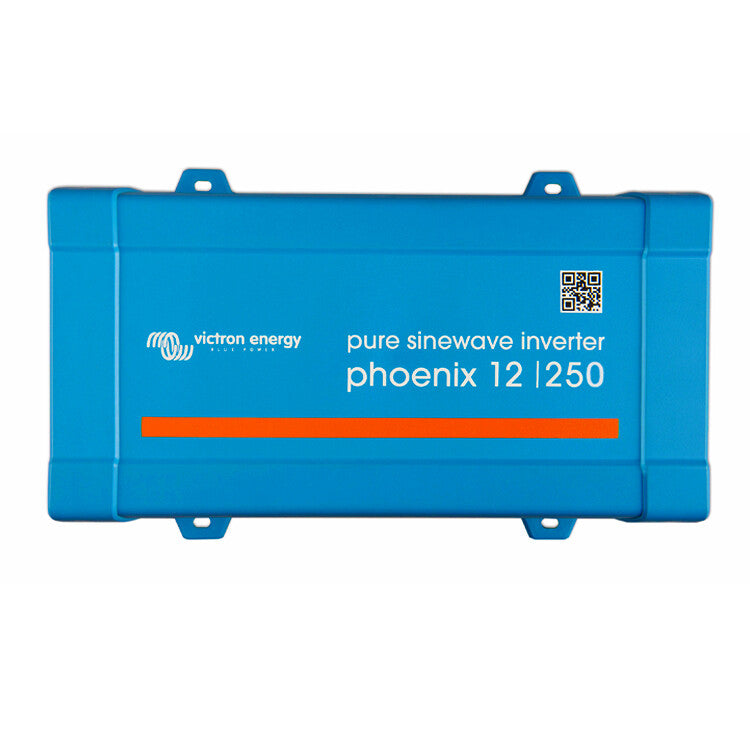

Victron Phoenix VE.Direct Schuko12/250 Inverter 200 W

Victron Phoenix Inverter 200W

High-quality sine wave inverter for a stable 230V supply for small consumers

The Phoenix 12/250 VE.Direct from Victron is a high-quality sine wave inverter, ideal for operating small 230V consumers on board. The continuous output power is 200 watts, making it sufficient for small consumers such as laptops, battery chargers, mini PCs and other devices with low power requirements. However, it is also excellently suited for highly sensitive radio, reception and medical devices.

Proven reliability
The full bridge topology, additionally combined with a toroidal transformer, has proven its worth for years. The inverters are short-circuit proof and protected against overheating (whether caused by overload or ambient temperature).

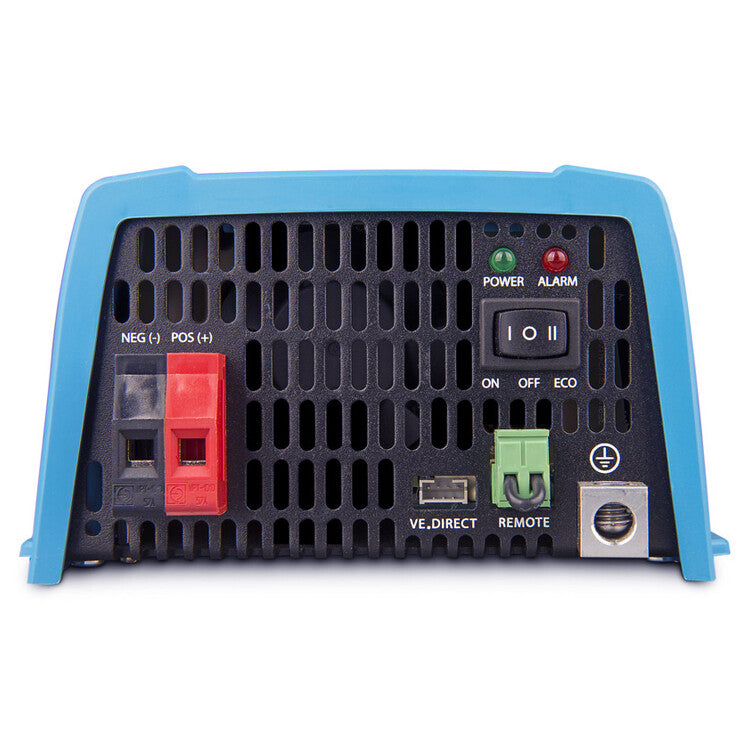

VE.Direct communication port
The VE.Direct port can be connected to the following devices:

• To a computer (VE.Direct to USB interface cable required)
• To Apple and Android smartphones, tablets, Macbooks or other devices (VE.Direct Bluetooth Smart Dongle required)

Fully configurable:

• Thresholds for triggering and resetting low battery charge alarms.
• Thresholds for switching off and restarting at low battery voltage values.
• Output voltage 210 - 245V
• Frequency 50 Hz or 60 Hz
• Threshold for ECO mode on/off and ECO mode sensor monitoring:
• Input and output voltage and current alarms

Further features at a glance:

• Power 200 W
• Brand quality from the Netherlands
• Output voltage with mains quality (pure sine wave)
• Compromise-free and trouble-free operation of small consumers such as laptops or chargers or mini PCs.
• Compact, light, robust and reliable
• programmable via VE.Direct port
• numerous pieces of information readable via VE.Direct port

Documents & Downloads

• Datasheet
• Manual
