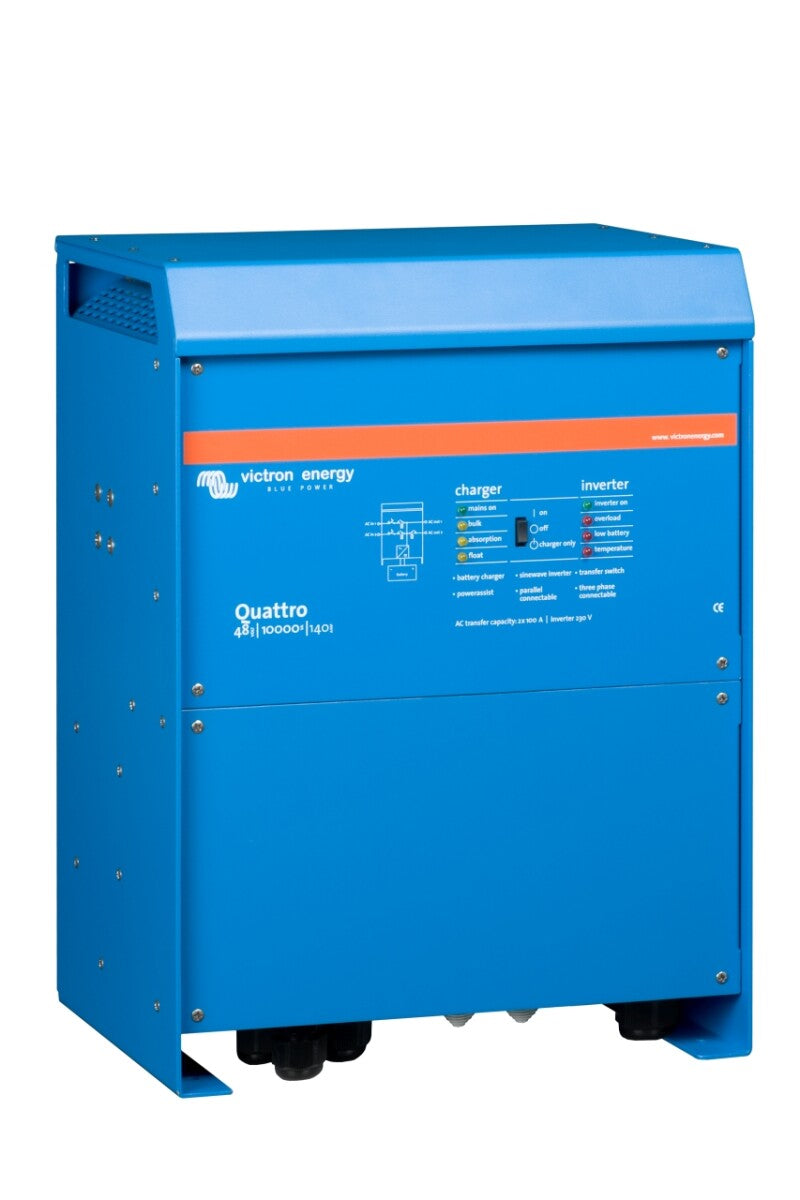

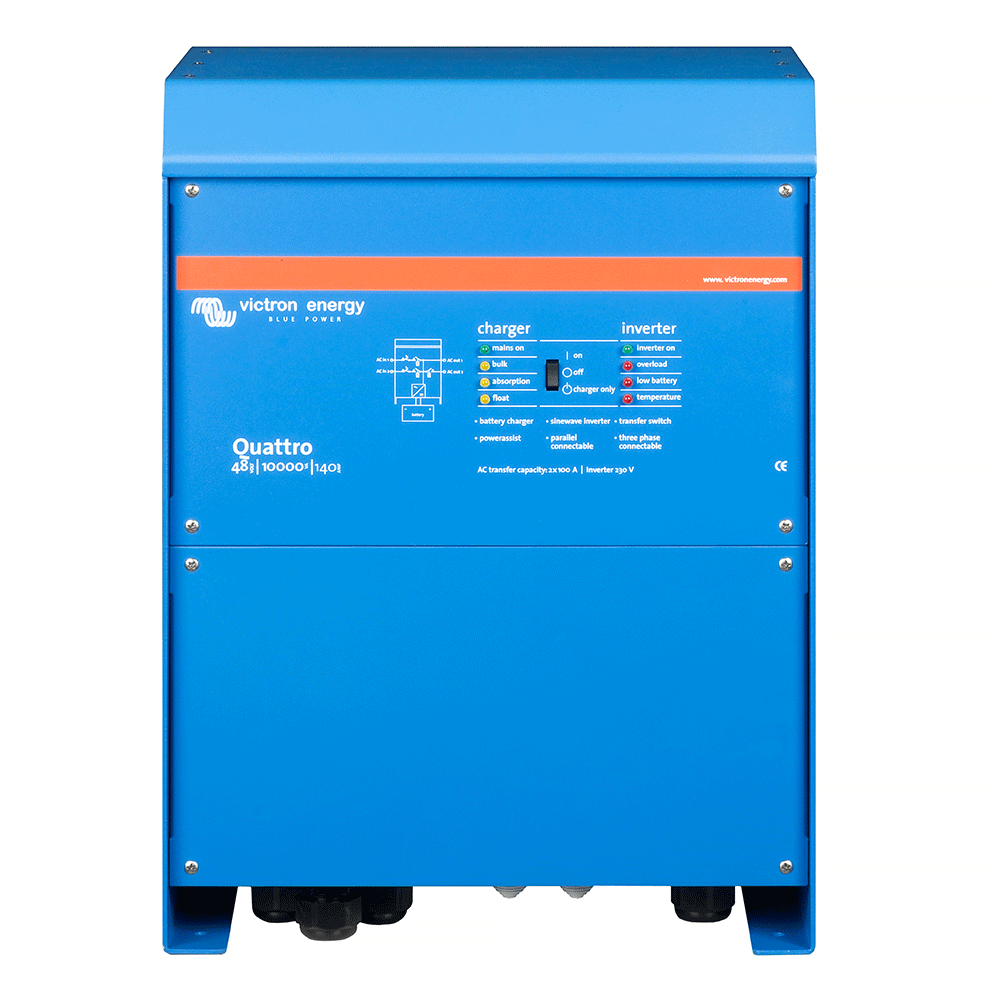

Victron Quattro 48/10000/140-100/100 Inverter and Charger 230 V VE.Bus

Two AC inputs with integrated transfer switch

The Quattro can be connected to two independent AC sources: for example, the public grid and a generator, or two generators. The Quattro automatically connects to the active source.

Two AC outputs

The main output ensures uninterrupted operation. In the event of a power outage or an interruption of shore/generator power, the Quattro takes over the supply of connected consumers. The transfer happens so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic devices is guaranteed. The second output only supplies power when AC is available at one of the Quattro's inputs. Consumers that must not discharge the battery, such as a water heater, can be connected to this output.

Virtually unlimited power through parallel connection

Up to 6 Quattros can be connected in parallel. For example, six 48/10000/140 units provide 54 kW/60 kVA of power or 840 A of charging current. Three-phase operation Three units can be connected in a three-phase configuration. But that's not all: up to 6 sets of three units can be connected in parallel, providing 162 kW/180 kVA of inverter power and over 2,500 A of charging capacity.

PowerControl – Working with limited generator power, limited shore or grid power

The Quattro is a very powerful battery charger. Therefore, it draws a lot of current from the generator or shore power supply (16 A per 5 kVA Quattro at 230 VAC). A current limit can be set at each of the AC inputs. The Quattro then takes into account other connected AC consumers and only uses the remaining current for charging. This prevents overloading of the generator or grid connection.

PowerAssist – Increasing shore connection or generator power

With this function, the PowerControl principle gains a new dimension, as the Quattro supports any undersized alternative source. Load peaks often occur only for a limited period. In such a case, the Quattro ensures that an undersized grid or generator power is immediately compensated by energy from the battery. If the load is reduced, i.e., consumers are switched off, the then sufficiently available energy can be used to charge the batteries.

Solar power: AC even in case of power failure

The Quattro can be used in both off-grid and grid-connected PV systems, as well as in other alternative energy systems. Software for detecting a power outage is available.

System configuration - If settings need to be changed on a single device, this can be done within minutes using a DIP switch setting procedure. - Parallel connected and three-phase systems can be configured with the VE.Bus Quick Configure and VE.Bus System Configurator software. - Off-grid, grid-connected and self-consumption systems, in which grid-tie inverters and/or MPPT solar chargers are used, can be configured using assistants (associated software for the respective systems).

On-site monitoring and control

Several options are available: battery monitor, Multi Control Panel, Ve.Net Blue Power Panel, Color Control Panel, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232).

Remote monitoring and control

Victron Ethernet Remote, Victron Global Remote and the Color Control Panel. Data can be stored and viewed free of charge on our VRM (Victron Remote Management) website. Remote configuration: If systems with a Color Control Panel are connected to Ethernet, they can be accessed and settings can be changed remotely.

Technical Data

Item number	300-3058
AC continuous power (W)	8000W
Voltage regulation	48V DC / 230V AC
No-load self-consumption	55W
No-load self-consumption in economy mode	20W
Operating ambient temperature range	-40°C to 65°C
Number of battery outputs	1
Battery voltage	48V
Protection class IP	IP21
Output voltage (V)	230V AC / alternating current
Current quality	true sine wave
AC output frequency range (Hz)	50Hz / +-0.1Hz
Manufacturer part number	QUA481030010
Product type	Powerful pure sine wave inverter, battery charger with adaptive charging technology and transfer switch. In addition, the Quattro Series can be connected to two independent AC sources.
Transfer switch	2
Manufacturer	Victron Energy
Weight	55 kg
Warranty	5 years manufacturer's warranty
Transfer switch switching capacity (A)	2x 100A
