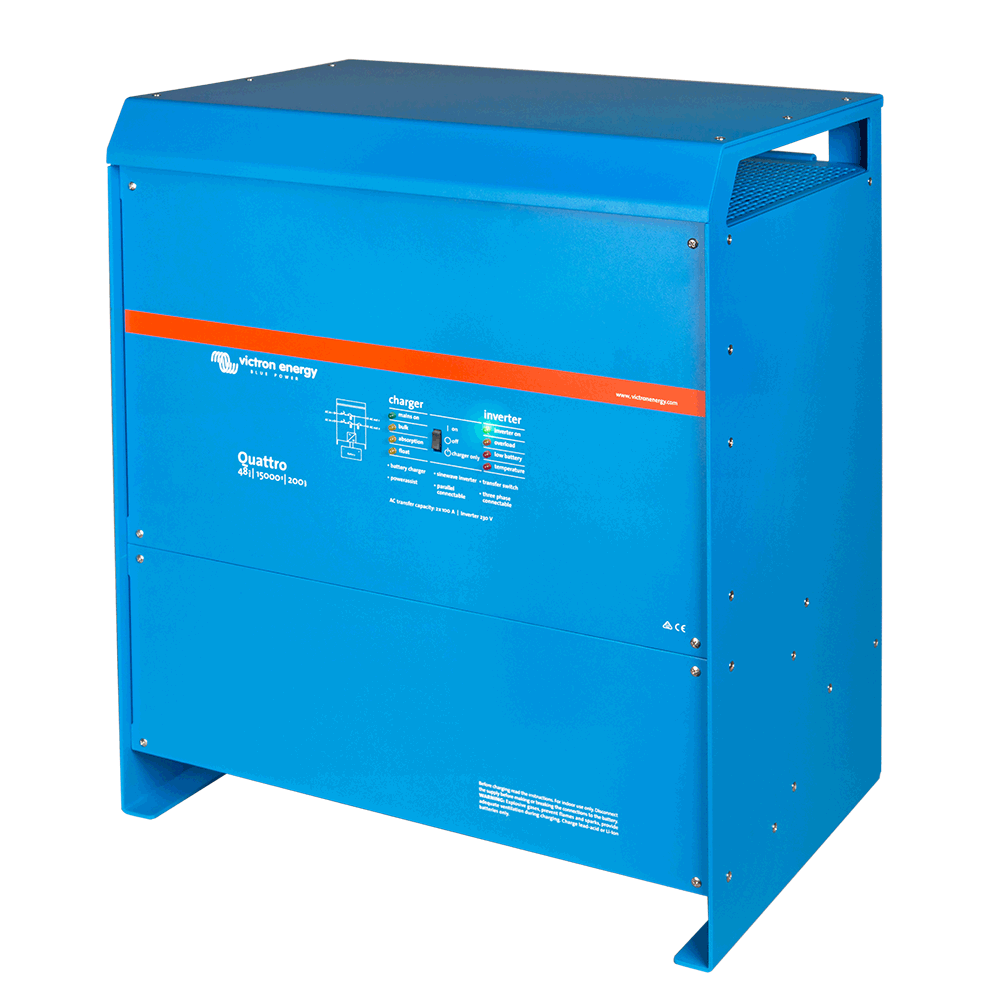

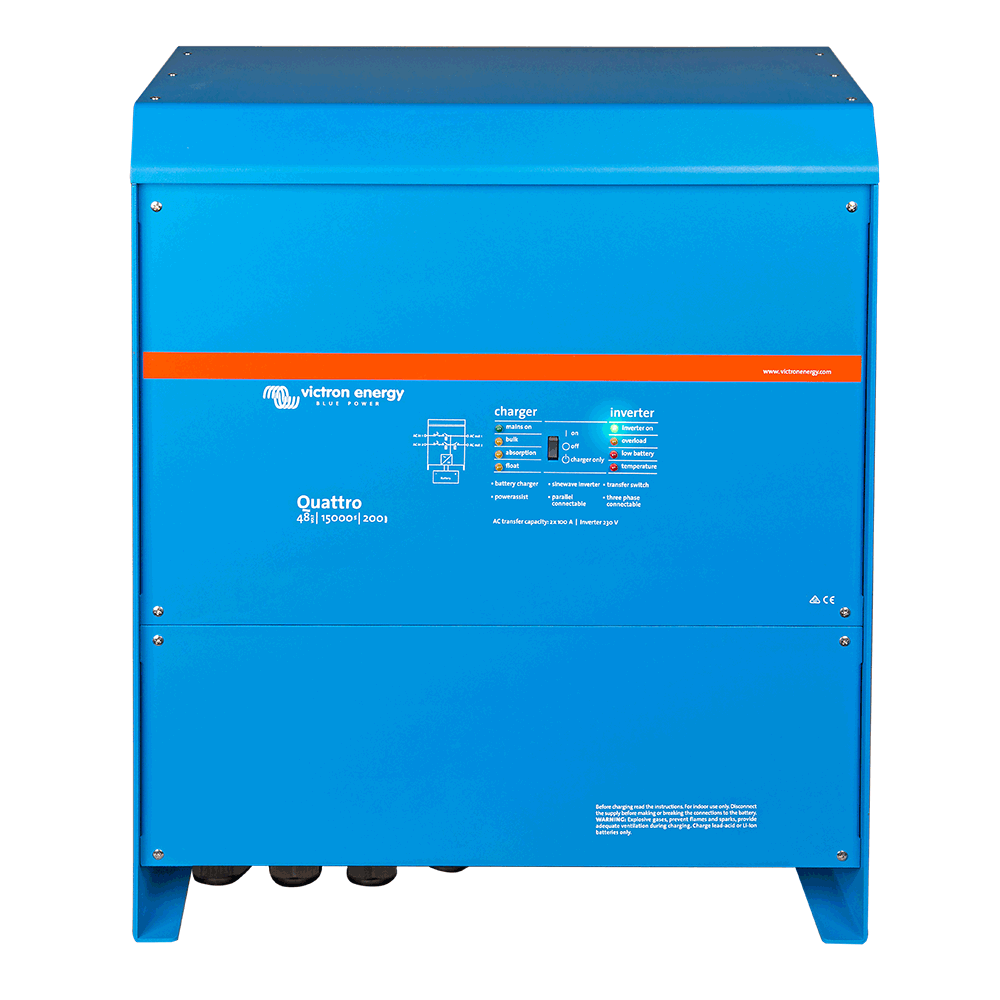

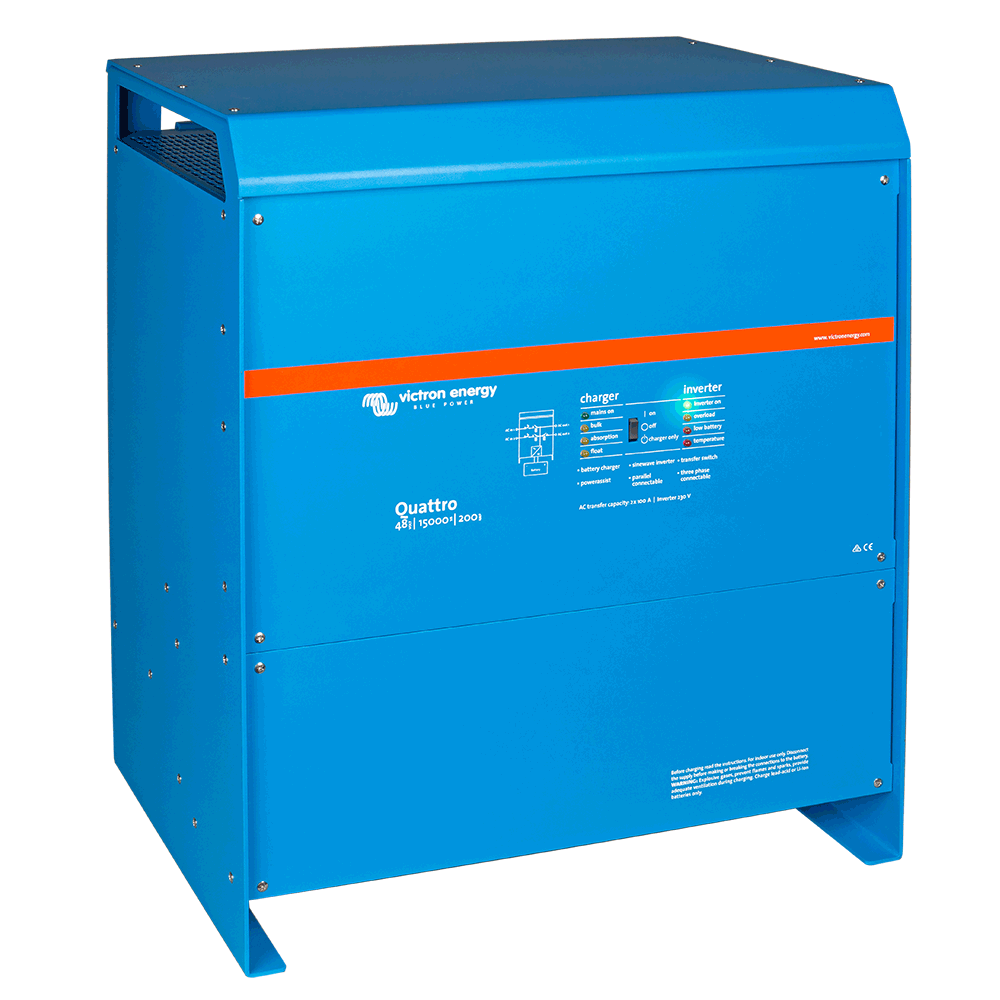

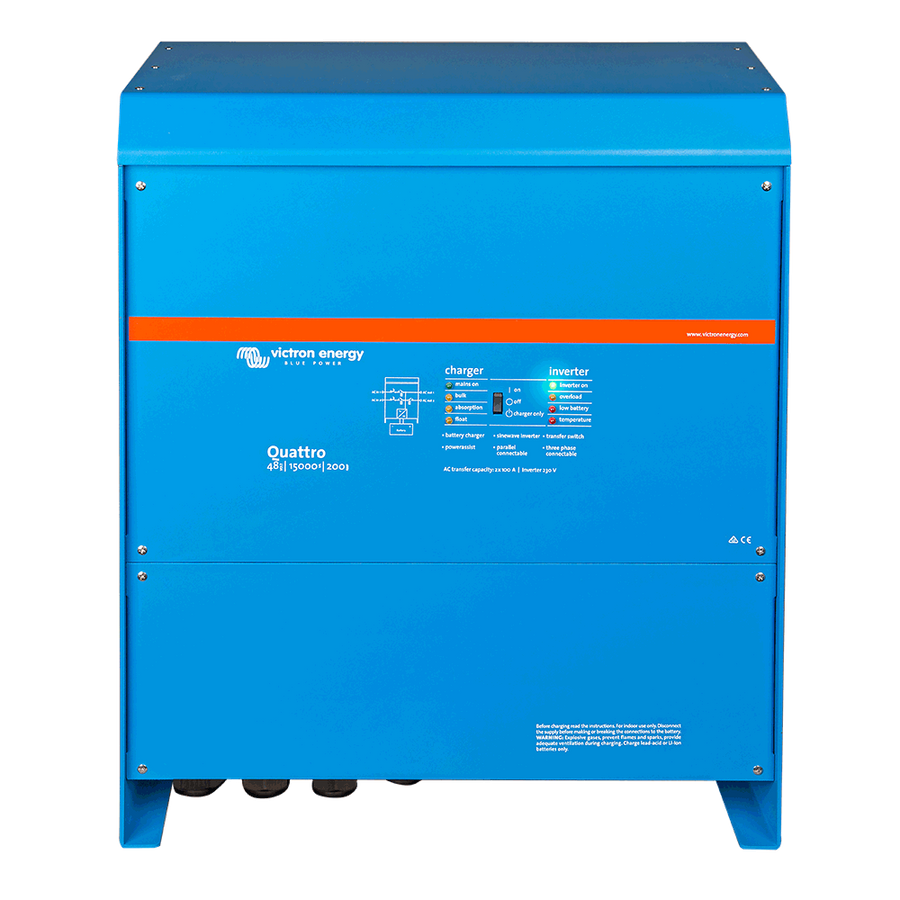

Victron Quattro 48/15000/200-100/100 Inverter and Charger 230 V VE.Bus

Victron Quattro 48/15000/200-100/100 Inverter and Charger 230 V VE.Bus

Two AC inputs with integrated transfer switch

The Quattro can be connected to two independent AC sources: for example, to the public grid and a generator or even to two generators. The Quattro automatically connects to the active source.

Two AC outputs

The main output ensures uninterrupted operation. In the event of a power outage or an interruption of shore/generator power, the Quattro takes over the supply of connected loads. The switchover happens so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic devices is ensured. The second output only supplies power when AC power is available at one of the Quattro's inputs. Loads that must not discharge the battery, such as a water heater, can be connected to this output.

Virtually unlimited power through parallel connection

Up to 6 Quattros can be connected in parallel. This results in, for example, six 48/10000/140 units providing 54 kW/60 kVA of power or 840 A of charging current. Three-phase operation: Three units can be connected in a three-phase configuration. But that's not all: Up to 6 sets of three devices can be connected in parallel, providing 162 kW/180 kVA of inverter power and over 2,500 A of charging capacity.

PowerControl – Working with limited generator power, restricted shore or grid power

The Quattro is a very powerful battery charger. Therefore, it draws a lot of current from the generator or shore power supply (16 A per 5 kVA Quattro at 230 VAC). A current limit can be set for each of the AC inputs. The Quattro then takes into account other connected AC loads and only uses the remaining "leftover" current for charging. This prevents the generator or grid connection from being overloaded.

PowerAssist – Increasing shore connection or generator power

This function adds a new dimension to the PowerControl principle, as the Quattro supports any undersized alternative source. Peak loads often only occur for a limited period. In such a case, the Quattro ensures that an insufficient grid power or generator power is immediately compensated by energy from the battery. If the load is reduced, i.e., consumers are switched off, the then sufficiently available energy can be used to charge the batteries.

Solar power: AC even in the event of a power outage

The Quattro can be used in both off-grid and grid-tied PV systems, as well as in other alternative energy systems. Software for detecting a power outage is available.

System configuration - If settings need to be changed on a single device, this can be done within minutes using a DIP switch setting procedure. - Parallel and three-phase systems can be configured with the VE.Bus Quick Configure and VE.Bus System Configurator software. - Off-grid, grid-tied and self-consumption systems, in which grid-tie inverters and/or MPPT solar chargers are used, can be configured with the help of assistants (associated software for the respective systems).

Local monitoring and control

Several options are available: Battery monitor, Multi Control Panel, Ve.Net Blue Power Panel, Color Control Panel, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232).

Remote monitoring and control

Victron Ethernet Remote, Victron Global Remote and the Color Control Panel. Data can be stored and viewed free of charge on our VRM (Victron Remote Management) website. Remote configuration: If systems with a Color Control Panel are connected to the Ethernet, they can be accessed and settings can be changed remotely.

Technical Data

Documents & Downloads

• Datasheet
