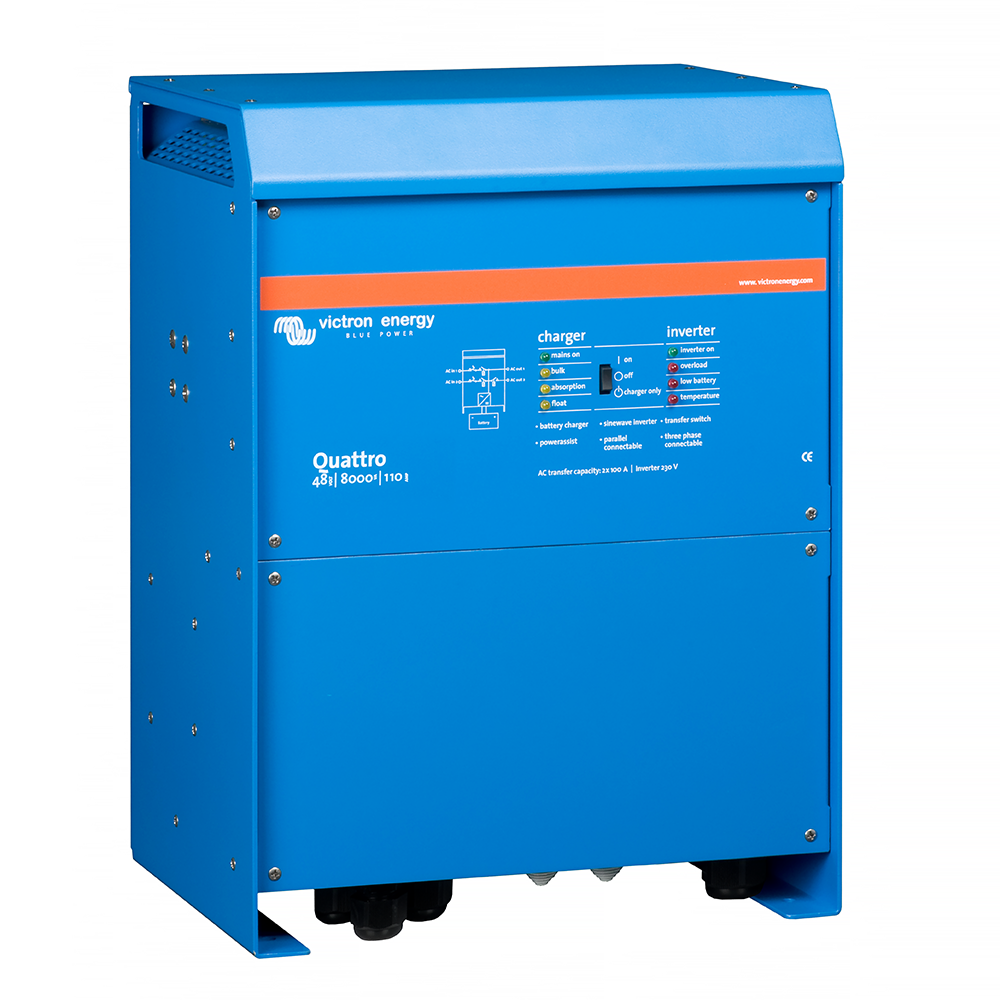

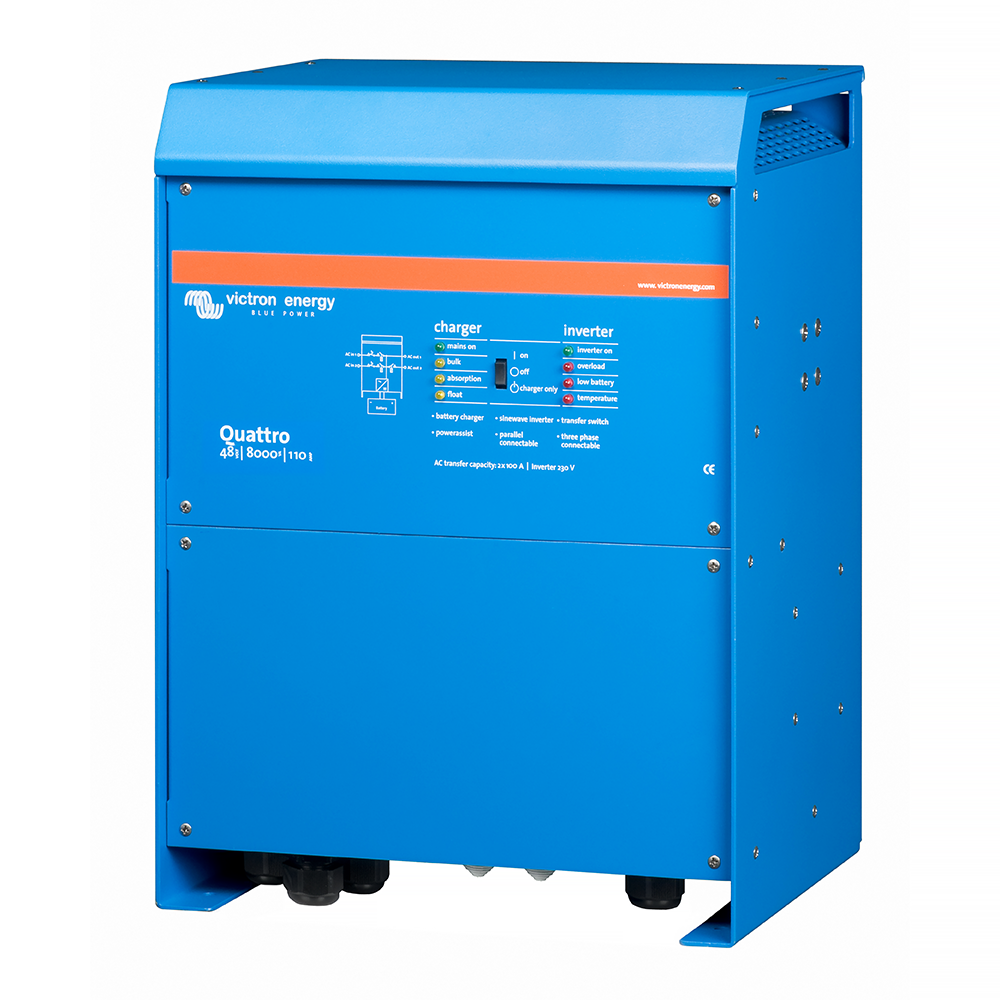

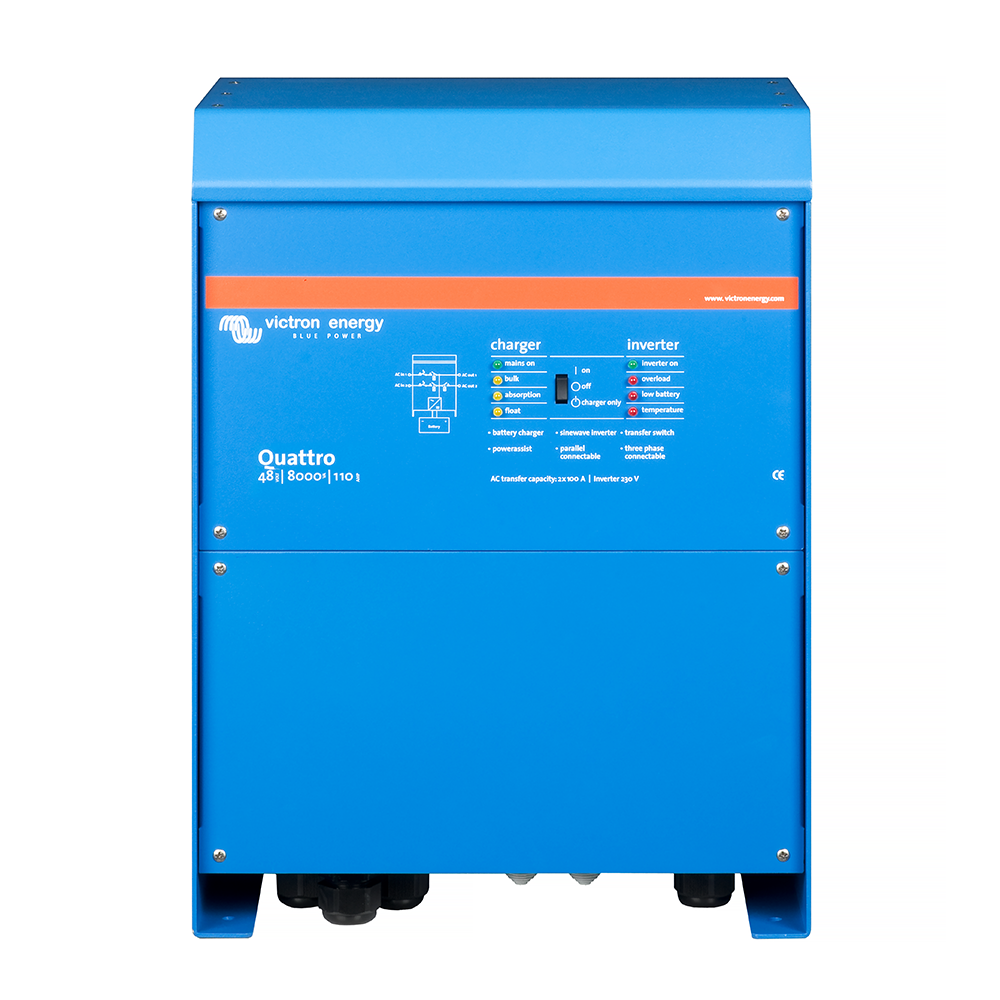

Victron Quattro 48/8000/110-100/100 Inverter and Charger 48 V VE.Bus

Two AC Inputs with Integrated Transfer Switch

The Quattro can be connected to two independent AC sources: for example, the public grid and a generator, or even two generators. The Quattro automatically connects to the active source.

Two AC Outputs

The main output ensures uninterrupted operation. In the event of a grid failure or an interruption of shore/generator power, the Quattro takes over the supply of connected loads. The switchover happens so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic devices is guaranteed. The second output only supplies power when AC power is available at one of the Quattro's inputs. Consumers that should not discharge the battery, such as a water heater, can be connected to this output.

Virtually Unlimited Power Through Parallel Connection

Up to 6 Quattros can be connected in parallel. For example, six 48/10000/140 units provide 54 kW/60 kVA of power or 840 A of charging current. Three-Phase Operation Three units can be connected in a three-phase configuration. But that's not all: up to 6 sets of three devices can be connected in parallel, resulting in 162 kW/180 kVA inverter power and over 2,500 A charging capacity.

PowerControl – Working with Limited Generator Power, Limited Shore or Grid Power

The Quattro is a very powerful battery charger. Therefore, it draws a lot of current from the generator or shore power supply (16 A per 5 kVA Quattro at 230 VAC). A current limit can be set at each of the AC inputs. The Quattro then takes into account other connected AC loads and only uses the remaining "leftover" current for charging. This prevents overloading of the generator or grid connection.

PowerAssist – Boosting Shore Connection or Generator Power

With this function, the PowerControl principle takes on a new dimension, as the Quattro supports any undersized alternative source. Peak loads often occur only for a limited period. In such a case, the Quattro ensures that an undersized grid or generator power is immediately compensated by energy from the battery. If the load is reduced, i.e., consumers are switched off, the then sufficiently available energy can be used to charge the batteries.

Solar Power: AC Even in the Event of a Power Outage

The Quattro can be used with both off-grid and grid-connected PV systems, as well as other alternative energy systems. Software for detecting a power outage is available.

System Configuration - If settings on a single device need to be changed, this can be done within a few minutes using a DIP switch setting procedure. - Parallel connected and three-phase systems can be configured with the VE.Bus Quick Configure and VE.Bus System Configurator software. - Off-grid, grid-connected, and self-consumption systems that use grid-tie inverters and/or MPPT solar chargers can be configured using assistants (associated software for the respective systems).

Local Monitoring and Control

Several options are available: battery monitor, Multi Control Panel, Ve.Net Blue Power Panel, Color Control Panel, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232).

Remote Monitoring and Control

Victron Ethernet Remote, Victron Global Remote, and the Color Control Panel. Data can be stored and viewed free of charge on our VRM (Victron Remote Management) website. Remote configuration: If systems with a Color Control Panel are connected to the Ethernet, they can be accessed and settings can be changed remotely.

Technical Data

Item Number	300-3057
AC Continuous Power (W)	6500W
Voltage Regulation	48V DC / 230V AC
No-Load Self-Consumption	50W
No-Load Self-Consumption in Energy Saving Mode	20W
Operating Ambient Temperature Range	-40°C to 65°C
Number of Battery Outputs	1
Battery Voltage	48V
IP Protection Class	IP21
Output Voltage (V)	230V AC / Alternating Current
Power Quality	True Sine Wave
AC Output Frequency Range (Hz)	50Hz / +-0.1Hz
Manufacturer Part Number	QUA488020000
Product Type	Powerful Inverter with Pure Sine Wave, Battery Charger with Adaptive Charging Technology and Transfer Switch. Additionally, the Quattro series can be connected to two independent AC sources.
Transfer Switch	2
Manufacturer	Victron Energy
Weight	50 kg
Warranty	5 Years Manufacturer's Warranty
Transfer Switch Switching Capacity (A)	2x 100A

Documents & Downloads

• Datasheet
