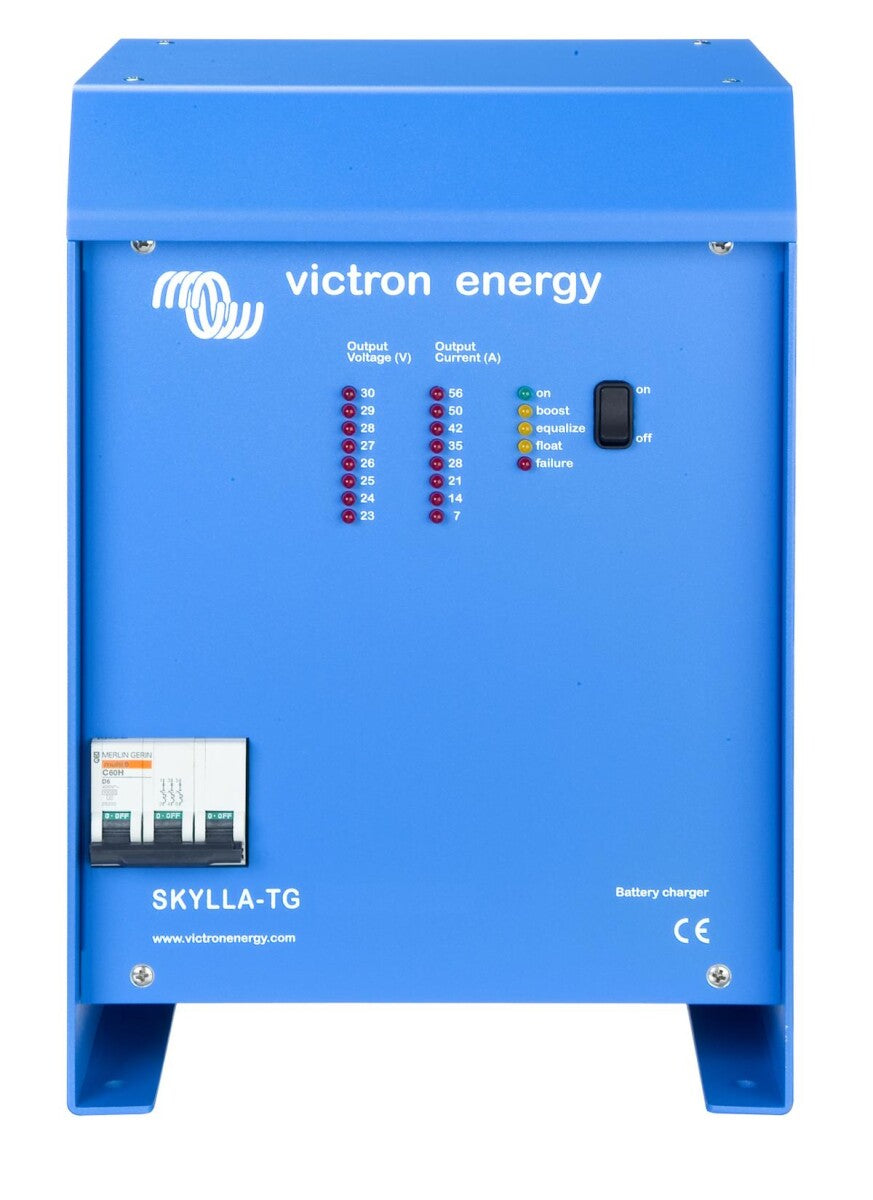

Victron Skylla-TG 24/30 (1+1) 230V Battery Charger 30A 24V

Victron Battery Charger Skylla-TG for 24V Batteries

One output with full rated power and an auxiliary charging output with 4 A are available. The charging voltage can be precisely adjusted to any battery system.
The charger input is 230 V at 50/60 Hz. The charging voltage can be measured directly at the battery terminals to compensate for voltage loss due to cable resistance. An external sensor allows measuring the battery temperature and compensating the charging voltage accordingly.

Pure power, compact format

TG generation battery chargers are light and compact due to the use of high-frequency technology. The charging voltage can be adjusted to any open and closed battery type. For sealed, maintenance-free batteries in particular, a stable charging voltage is very important. Overvoltage leads to excessive gas development and dehydration.

Controlled charging

Each TG charger has a microprocessor that precisely controls the charging process in three stages. The charging process follows the IUoUo characteristic and is faster than other charging processes.

Can be used as a power supply

Thanks to its perfectly stabilized output voltage, a TG charger can be used as a power supply in the absence of batteries or large buffer capacitors.

Two outputs for charging two batteries

TG chargers have two isolated outputs. The second output is intended for charging a starter battery. It has a slightly lower output voltage and is limited to 4 A.

Longer battery life through temperature compensation

A temperature sensor is supplied with each TG charger. The temperature sensor ensures a decreasing charging voltage as the battery temperature rises. This is particularly important for maintenance-free batteries, which could otherwise dry out due to overcharging.

Voltage Sense: Measuring the charging voltage at the battery or at the DC distributor

To compensate for voltage losses due to cable resistance, TG chargers have a "Voltage Sense" function. It ensures that the battery always receives the correct charging voltage.

Technical data
