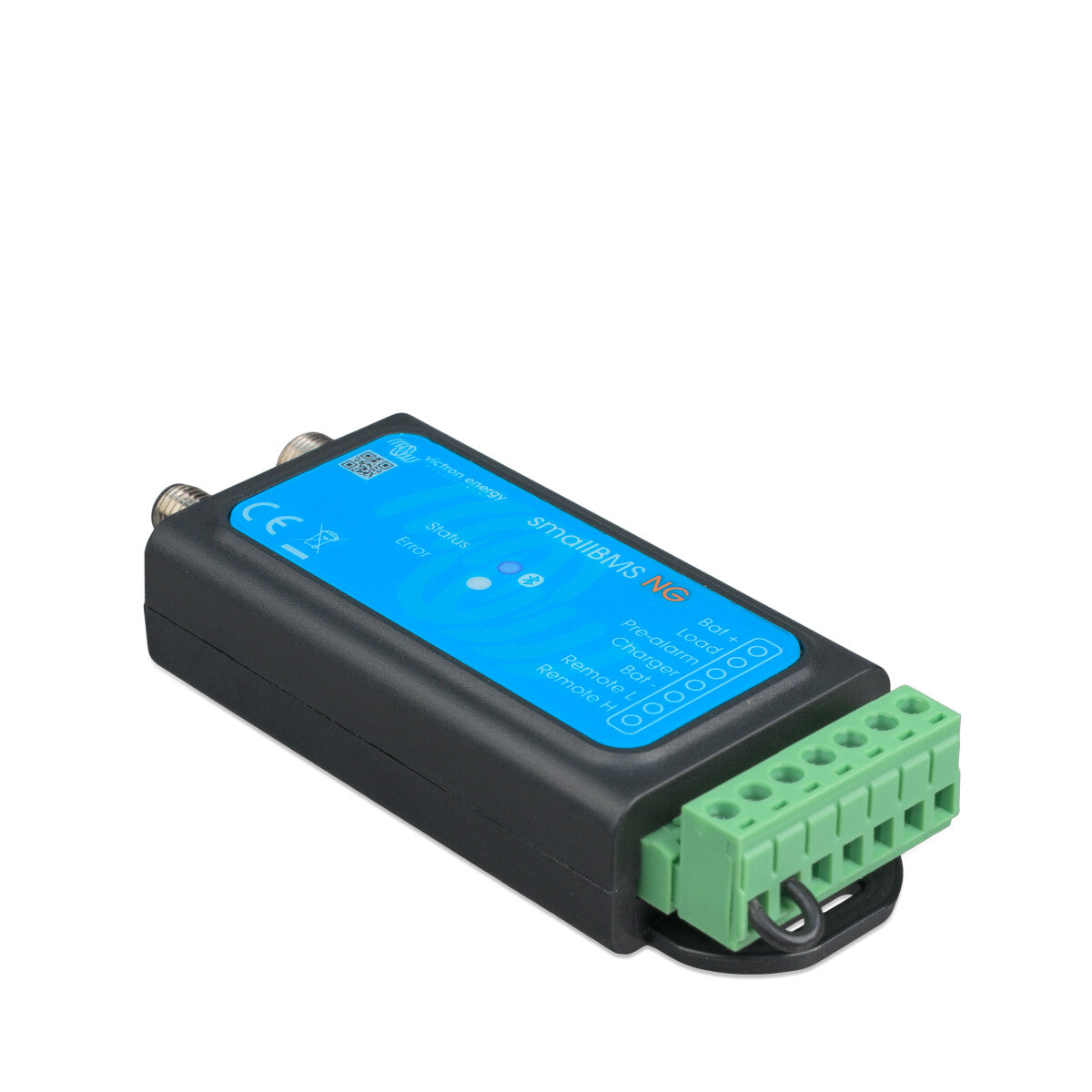

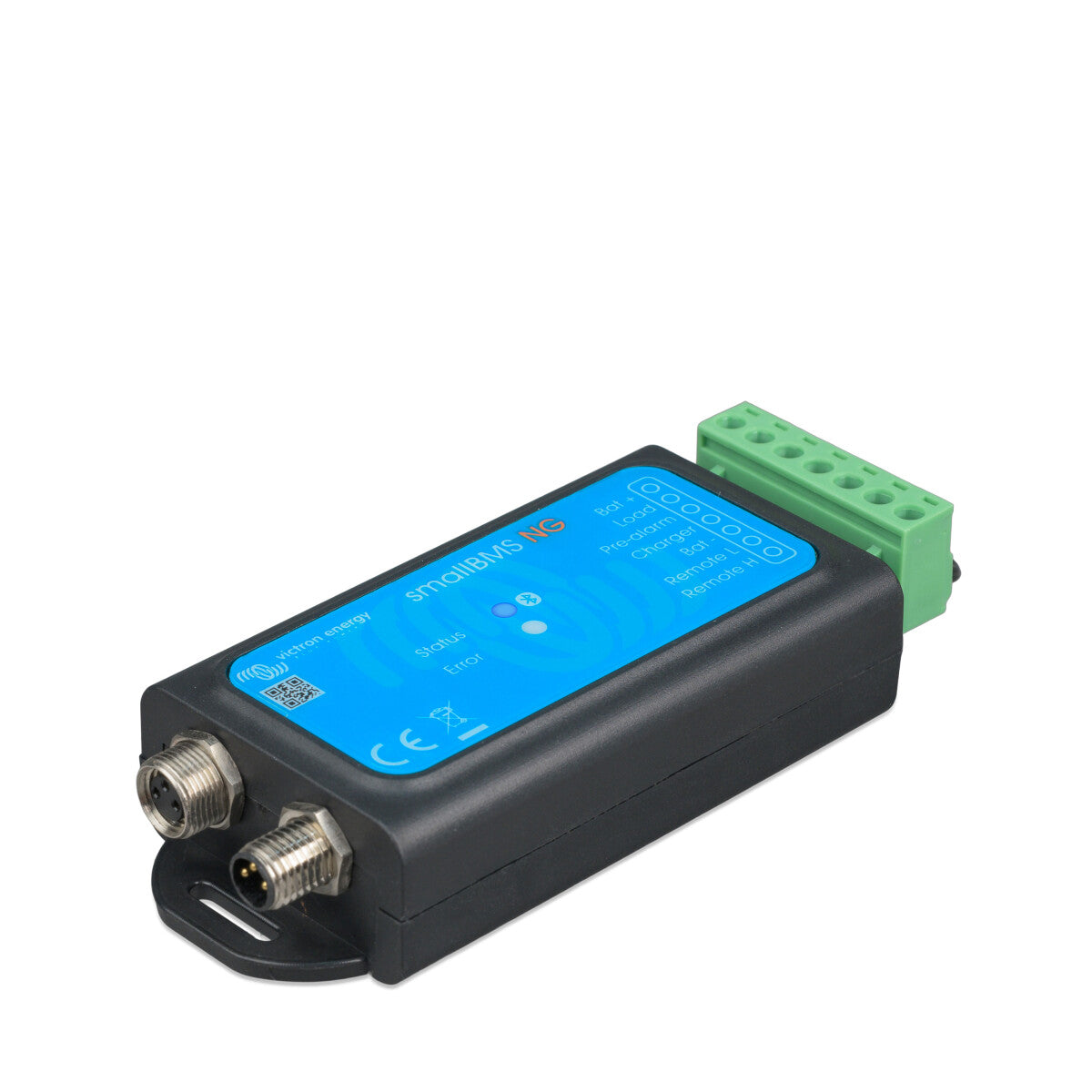

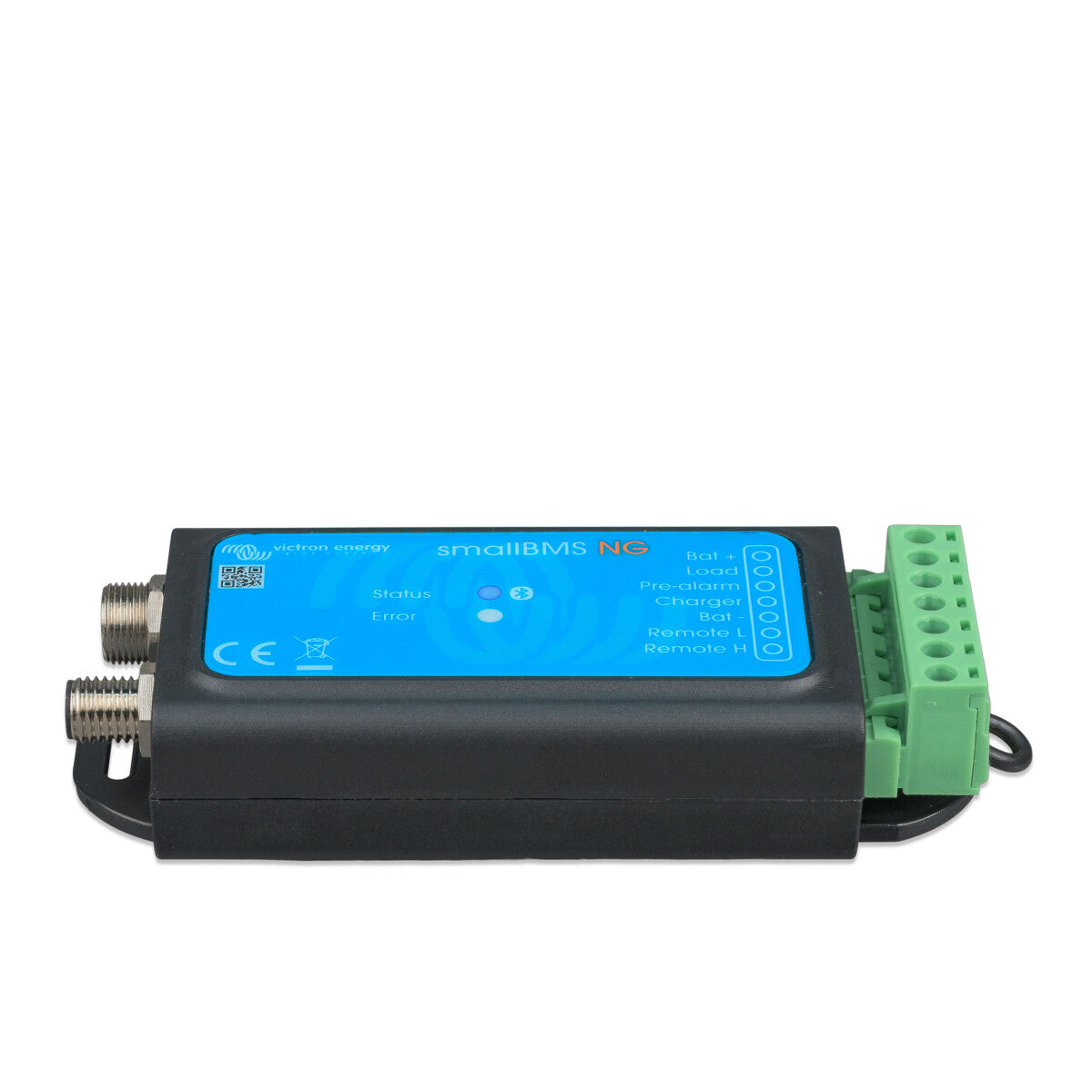

Victron smallBMS NG

Victron smallBMS NG – Compact Battery Management System for Victron Lithium NG Batteries

The Victron smallBMS NG is a compact, intelligent Battery Management System for the safe monitoring and control of Victron Lithium NG batteries – especially for systems without VE.Bus components such as MultiPlus or Quattro. It protects the batteries from deep discharge, overcharge and critical voltage values and is ideal for off-grid applications where efficiency and simplicity are paramount.

Simple, efficient and Bluetooth-enabled

Thanks to the integrated Bluetooth interface, no separate monitoring device like a SmartShunt is required. Via the VictronConnect App, you can view the state of charge, battery voltage and warnings conveniently on your smartphone or tablet at any time.

Key features at a glance

• Compatible with Victron Lithium NG batteries (not with Lithium Smart)
• Bluetooth monitoring via VictronConnect – no SmartShunt needed
• Charge Disconnect: Control of e.g. IP43 chargers or Cyrix relays
• Load Disconnect: Protection against deep discharge by targeted disconnection of DC loads or inverters
• Pre-Alarm Output: Early warning system before critical voltage drop – controllable via LED, buzzer or relay
• Remote On/Off: External control of charge and load relays possible
• Status indicator via LED: Bluetooth (blue) & warnings/errors (red)

Flexible System Integration

• Supports 12V, 24V and 48V systems
• Series connection, parallel connection or mixed configurations possible
• Up to 50 batteries at 12V/24V or 25 batteries at 48V
• Maximum storage capacity: up to 384 kWh (24V systems)

The Victron smallBMS NG is the ideal solution for anyone looking for a cost-effective and reliable control and monitoring of their Lithium NG batteries – without complex system integration.

Documents & Downloads

• Datasheet SmallBMS NG
• Manual SmallBMS NG
