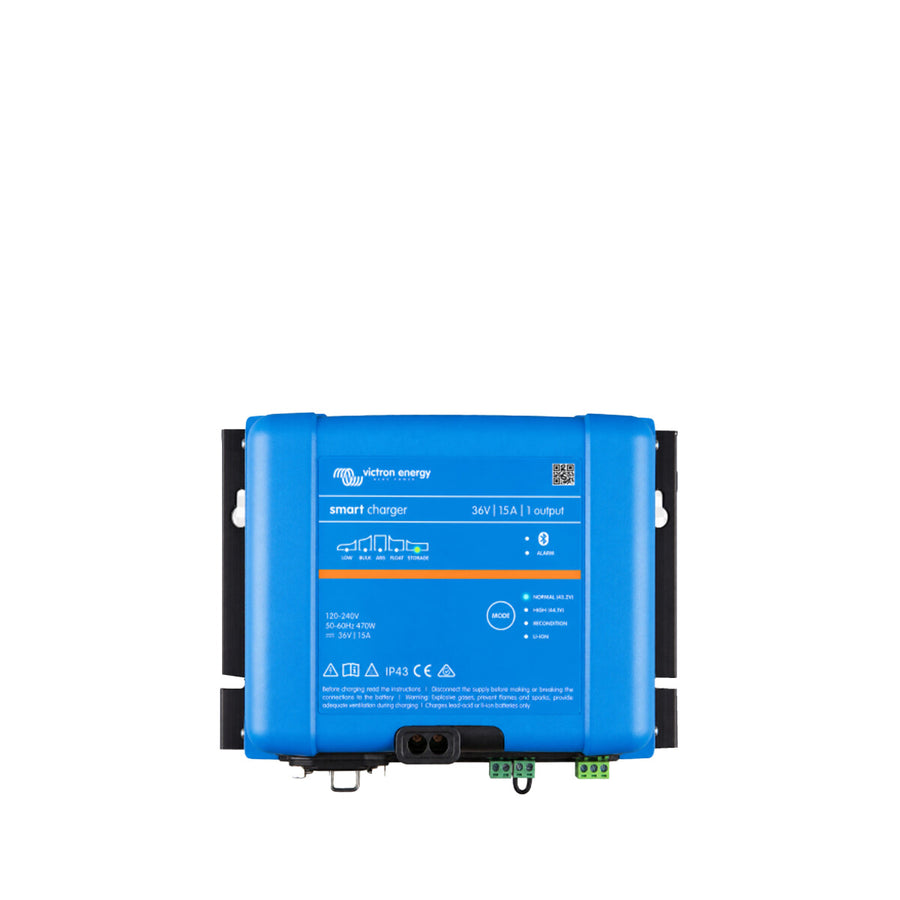

Victron Smart IP43 Charger 36/15(1) 120-240V

Victron Smart IP43 Charger 36/15(1) – Smart 36V Charger with Bluetooth, 15A Adjustable and Silent (120–240V)

The Victron Smart IP43 Charger 36/15(1) is a 36V battery charger with a max of 15A (adjustable), which you can conveniently configure via Bluetooth using your smartphone. With a 6-stage charging algorithm and adaptive charging adjustment, it supports battery-friendly charging – including pre-set charging profiles for various battery types (including Lithium). If you need more precision, the charging characteristics can be custom-set, up to a max of 49.5V. Thanks to passive cooling without a fan, the device operates completely silently, and with IP43, it is well-suited for protected installations in technical rooms, vehicle, or control cabinet environments.

Pre-settings for battery types – or individual curves

Depending on the battery chemistry, you can select appropriate charging cycles by battery type. For special applications (e.g., if the battery manufacturer specifies exact voltage values), charging can be individually configured.

Smartphone instead of screwdriver: Bluetooth configuration

You can comfortably set up the charger via Bluetooth. Additionally, the charger is externally switchable, which facilitates integration into existing control systems or switching concepts.

Also usable as a power supply unit – with flexible power input

In addition to classic charging, the Smart Charger can also be used as a power supply unit. The power input is flexible: 100–250V AC (45–65 Hz) or alternatively 90–375V DC. For wiring, connection terminals up to 16 mm² are available; a connector plug without cable is included.

Robust and quiet in operation

The aluminum housing simultaneously serves as a heat sink – this means the charger does not require a fan and remains silent. It is designed for -20 °C to +60 °C (with reduced output power above +40 °C) and can be operated at up to 95% humidity. In addition, a programmable relay is available (5A at 230V AC / 36V DC).

Your advantages at a glance

• 36V charger, max. 15A (adjustable)
• 6-stage charging algorithm with adaptive charging adjustment
• For many battery types, incl. Lithium – profiles selectable
• Custom configurable up to 49.5V
• Bluetooth: setup via smartphone
• Also usable as a power supply unit
• Input: 100–250V AC or 90–375V DC
• Passively cooled (fanless): silent via aluminum housing
• IP43, humidity up to 95%
• Programmable relay (5A at 230V AC / 36V DC)
• Externally switchable
• Compact: 180 × 249 × 100 mm, 2.7 kg

If you are looking for a powerful 36V charger that is quiet, flexible, and at the same time cleanly configurable via Bluetooth, the Victron Smart IP43 Charger 36/15(1) is particularly well-suited for professional 36V energy systems.
