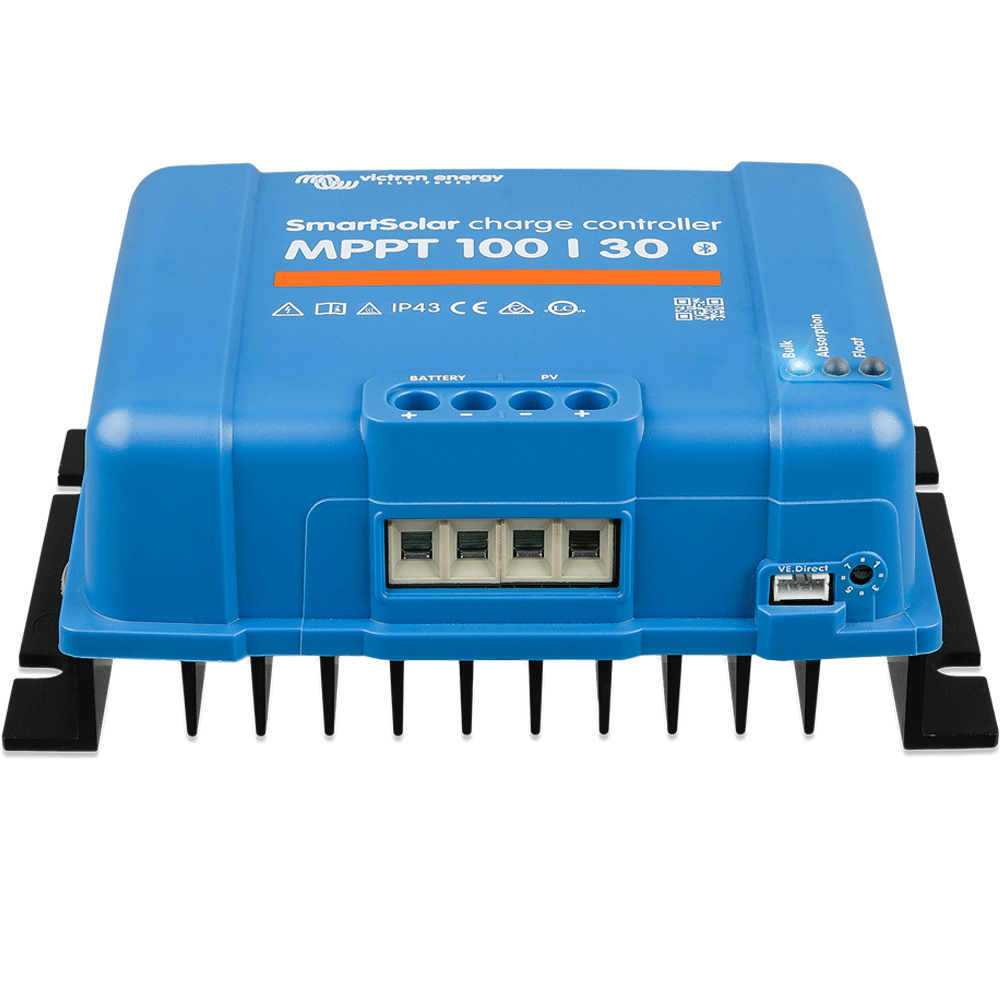

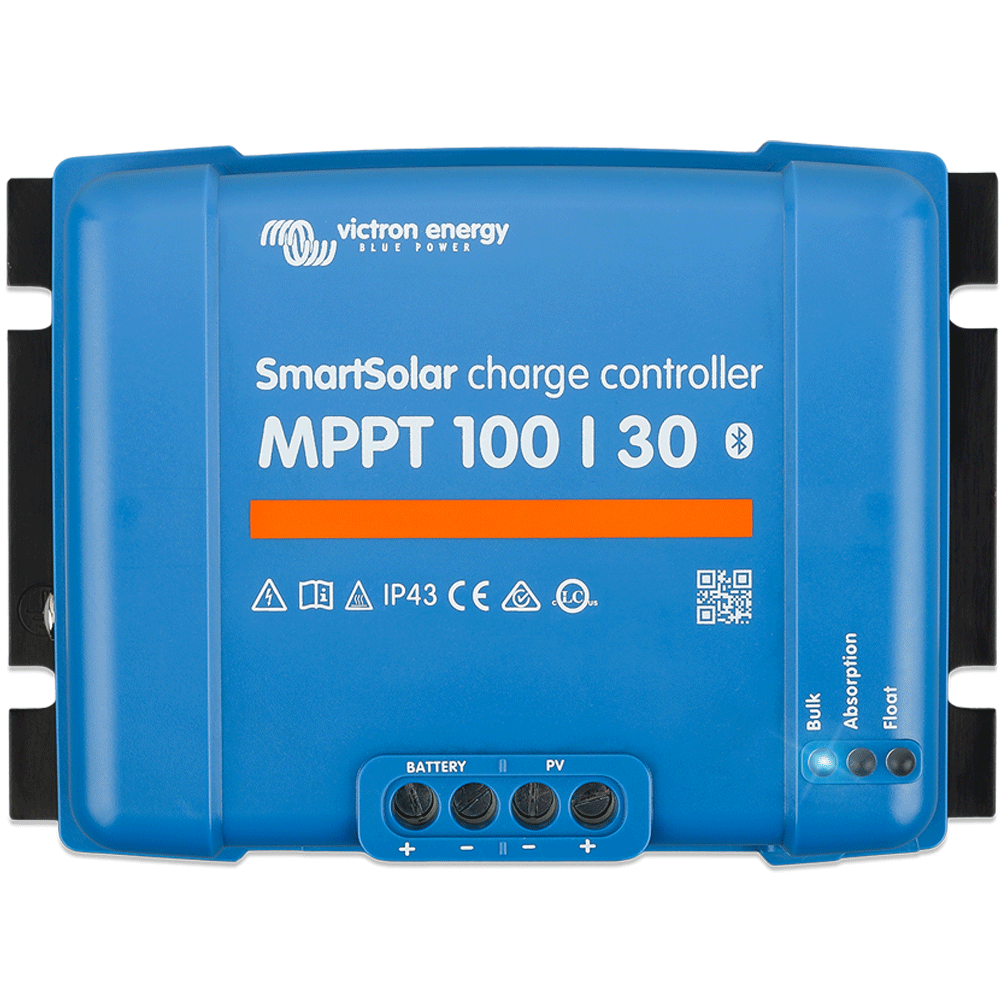

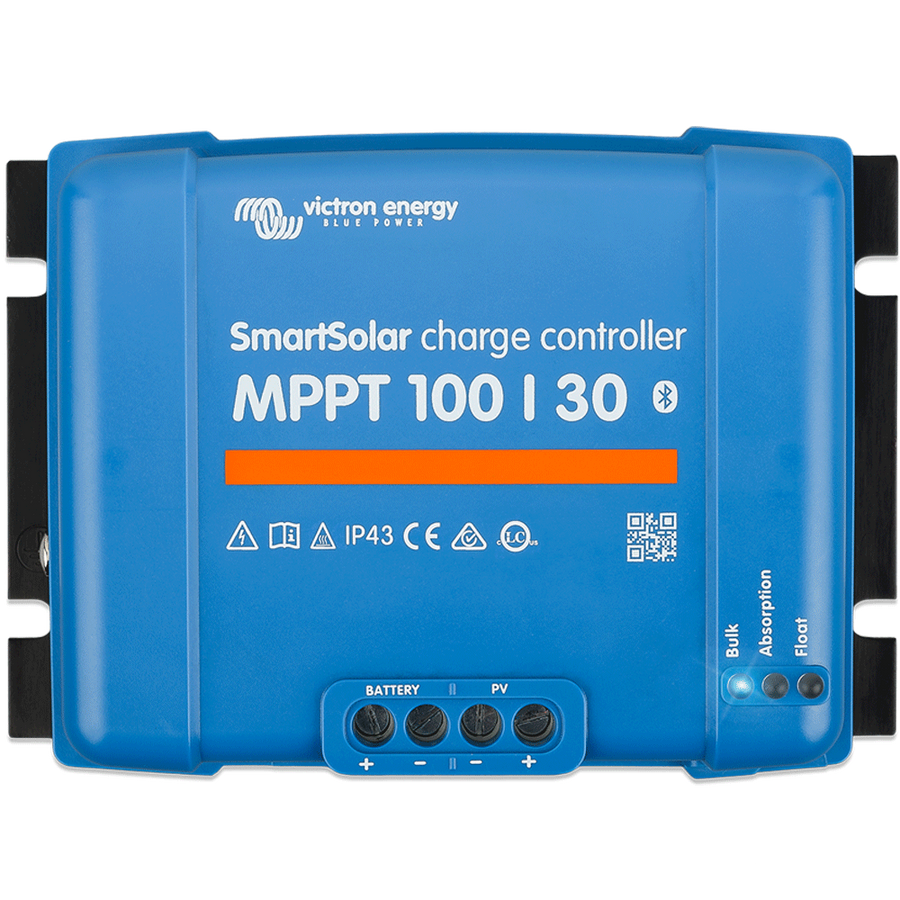

Victron SmartSolar MPPT 100/30 with integrated Bluetooth

MPPT SmartSolar 100/30 Solar Charge Controller from Victron.

Ultra-fast MPPT Tracking
Especially in cloudy conditions, when light intensity is constantly changing, the ultra-fast MPPT algorithm improves energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in case of partial shading. In case of partial shading, two or more Maximum Power Points (MPP) may be present on the current-voltage curve. Conventional MPPTs tend to lock to a local MPP. However, this may not be the optimal MPP. The innovative algorithm of the SmartSolar device will always maximize energy harvest by locking to the optimal MPP.

Highlight: Real-time data display on your smartphone! Built-in Bluetooth Smart: No dongle necessary

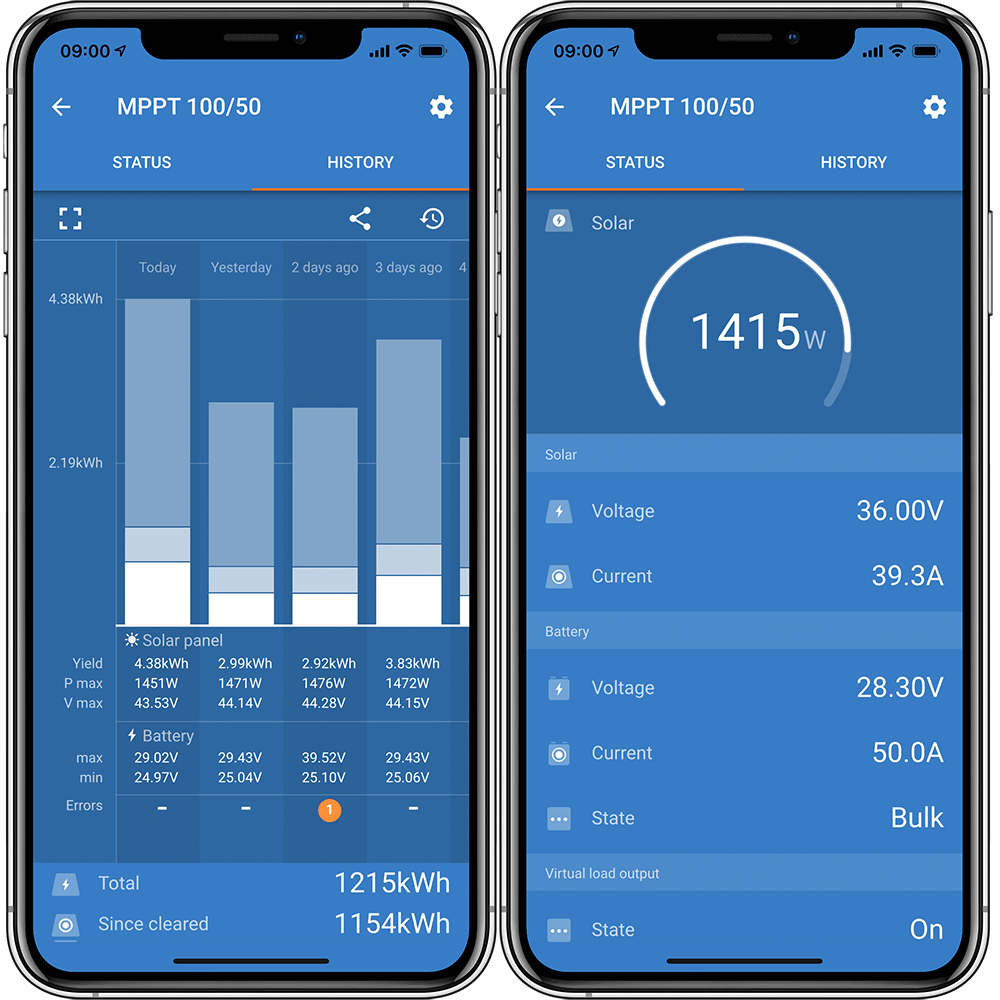

A Bluetooth-enabled smartphone can display a variety of data live. The wireless solution for setting up, monitoring, and updating the controller using Apple and Android smartphones, tablets or other devices.
Unlike the BlueSolar controllers, the Bluetooth interface is already built-in, so no additional accessories need to be purchased.

Intelligent battery management with the BatteryLife Algorithm
The BatteryLife algorithm monitors the battery's state of charge and slightly increases the load disconnect threshold daily until the bulk voltage is reached. From this point, the load disconnect threshold is modulated so that the bulk voltage is reached approximately once a week.
The BatteryLife algorithm will extend the operating life of the battery compared to conventional battery algorithms that always cycle between partially charged and fully charged (due to low self-discharge)

Documents & Downloads

• Datasheet SmartSolar 100/30
• Manual SmartSolar 100/30
