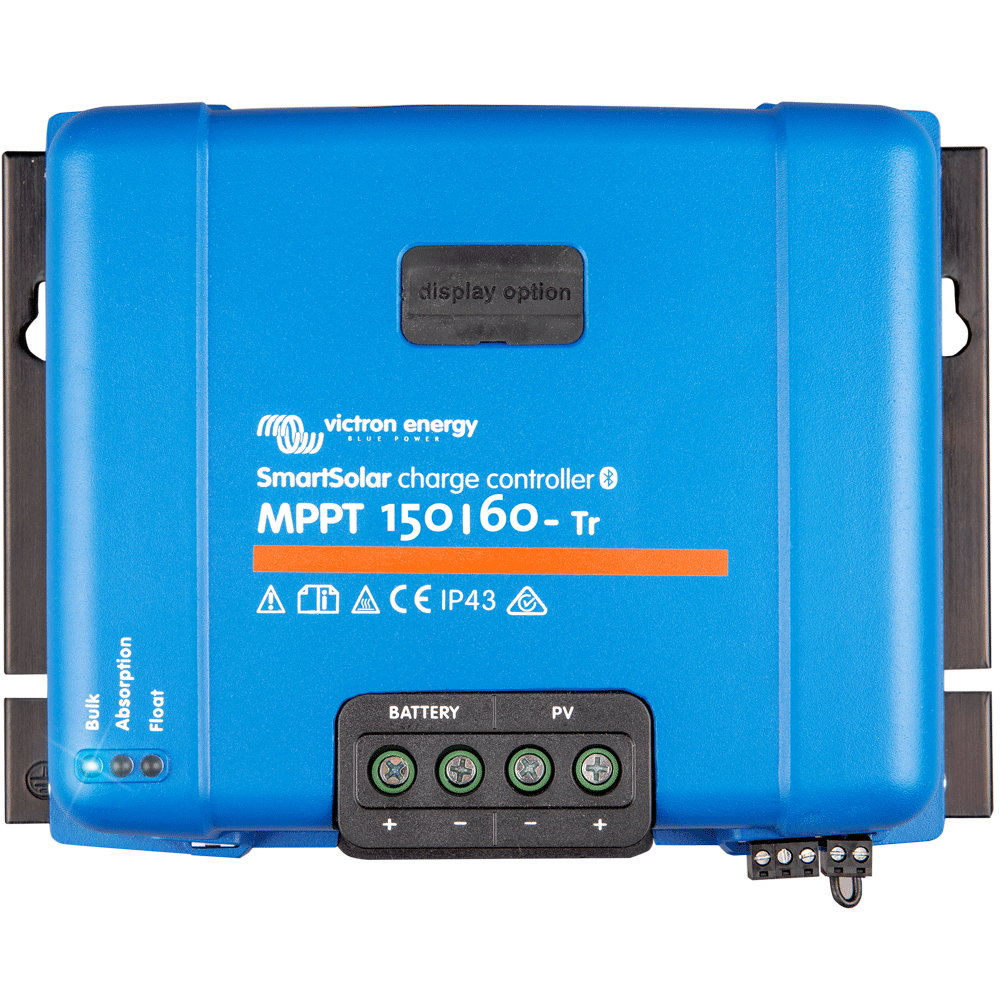

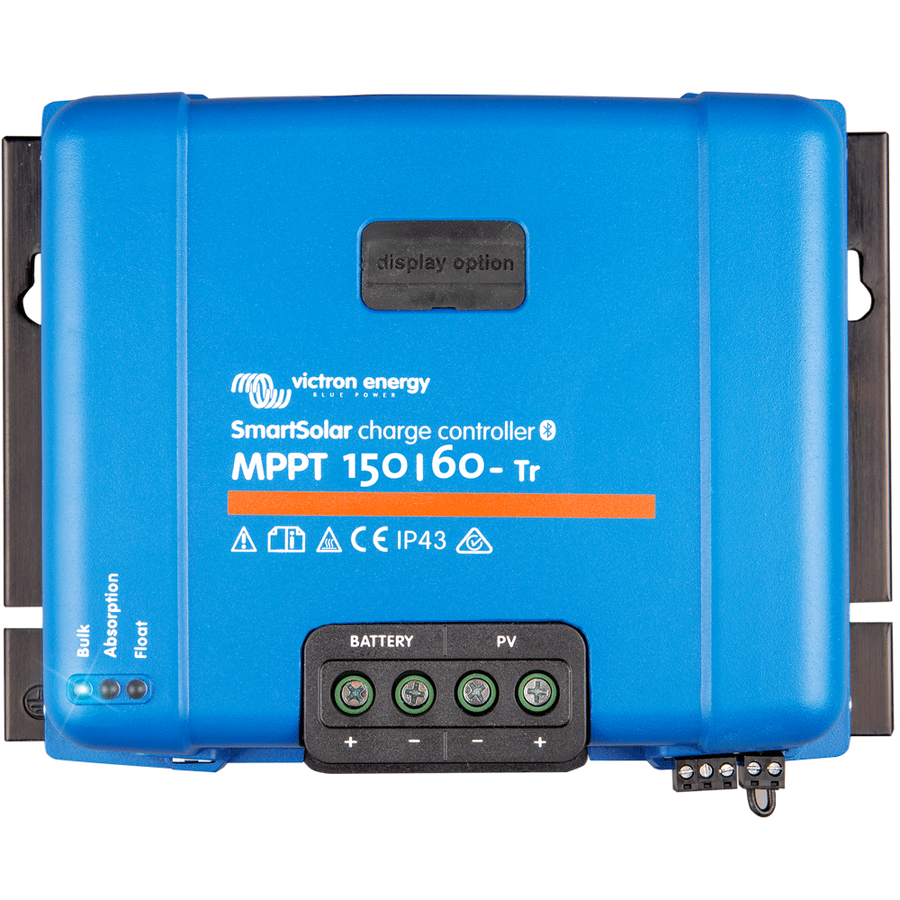

Victron SmartSolar MPPT 150/60-Tr with integrated Bluetooth
Victron SmartSolar MPPT 150/60-Tr with integrated Bluetooth
SKU:WS300-3223
Couldn't load pickup availability
MPP Solar Charge Controller MPPT SmartSolar 150/60-Tr by Victron.
Ultra-fast MPPT Tracking
Especially during cloudy weather, when light intensity changes constantly, the super-fast MPPT algorithm improves energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in case of partial shading. In the event of partial shading, there may be two or more maximum power points (MPP) on the current-voltage curve. Conventional MPPTs tend to lock onto a local MPP. However, this may not be the optimal MPP. The innovative algorithm of the SmartSolar device will always maximize energy yield by locking onto the optimal MPP.

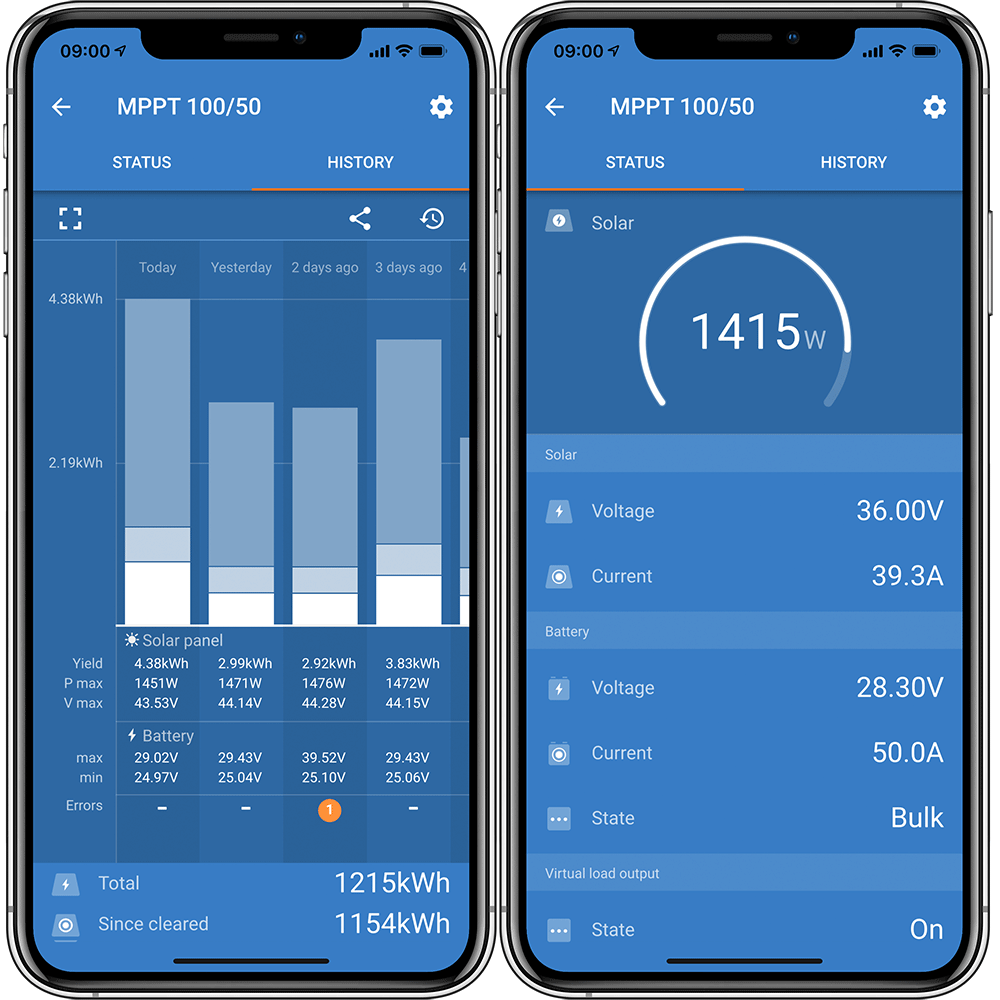

Highlight: Real-time data display on your smartphone! Built-in Bluetooth Smart: No dongle necessary
A Bluetooth-enabled smartphone can display a variety of data live. The wireless solution for setting up, monitoring, and updating the controller using Apple and Android smartphones, tablets, or other devices.
Unlike the BlueSolar controllers, the Bluetooth interface is already built-in, so no additional accessories need to be purchased.
Intelligent battery management with the BatteryLife Algorithm
The BatteryLife algorithm monitors the battery's state of charge and slightly increases the load disconnection threshold daily until the constant voltage is reached. From this point, the load disconnection threshold is modulated so that the constant voltage is reached approximately once a week.
The BatteryLife algorithm will extend the battery's operating life compared to conventional battery algorithms that always switch between "partially charged" and "fully charged" (due to low self-discharge).
Internal Temperature Sensor
Compensates constant and float voltages based on temperature
Comprehensive electronic protection
- Overheating protection and power derating at high temperatures.
- Protection against PV short circuit and PV reverse polarity.
- PV reverse current protection.
Excellent Efficiency
No cooling fan. Maximum efficiency over 98%. Full output current up to 40 °C.
| Technical data | BlueSolar MPPT 150 / 60 |
|---|---|
| Battery voltage | 12 V / 24 V / 48 V |
| Rated charge current | 60 A |
| Rated PV power 12 V | 860 W |
| Rated PV power 24 V | 1720 W |
| Rated PV power 48 V | 2440 W |
| Max. PV open circuit voltage | 150 V |
| Max. PV short-circuit current | 50 A |
| Efficiency | 98 % |
| Constant - charge voltage | 14.4 V / 28.8 V / 57.6 V |
| Float - charge voltage | 13.8 V / 27.6 V / 41.4 V / 55.2 V |
| Operating temperature | - 30 °C - + 60 °C |
| Weight | 3 kg |
| Dimensions | 185 x 250 x 95 mm |
