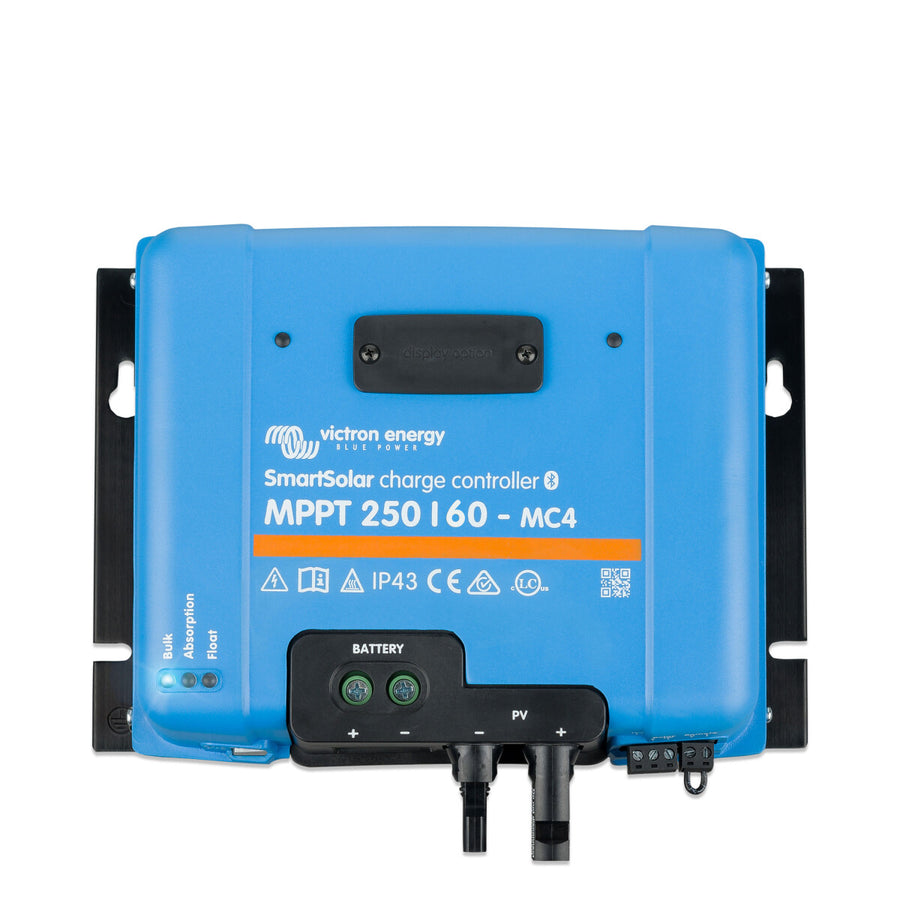

Victron SmartSolar MPPT 250/60-MC4

The Victron SmartSolar MPPT 250/60-MC4

The MPPT solar charge controller with integrated Bluetooth interface and an optional display offers advanced Maximum Power Point Tracking (MPPT) to optimize energy harvesting from your solar system. With the ability to handle a charging current of up to 60A and a photovoltaic (PV) voltage of up to 250V, this controller is compatible with 12V, 24V, or 48V battery systems.

Features of the SmartSolar MPPT Charge Controller:

• Ultra-fast MPPT: Especially under changing light conditions, such as those occurring with cloudy skies, the controller can increase yield by up to 30% compared to PWM charge controllers and up to 10% compared to slower MPPT controllers.
• Advanced Maximum Power Point detection in partial shading: Unlike conventional MPPT controllers, which might settle for a less efficient MPP, the SmartSolar MPPT always finds the optimal point for maximum energy yield.
• Efficiency: The controller operates without a cooling fan and achieves an efficiency of over 98%.
• Flexible charging algorithms: The charging process is fully programmable, and eight pre-programmed algorithms are available to allow optimal adaptation to various battery types and conditions.
• Comprehensive protection: The controller offers protection against overheating, PV short circuit, PV reverse polarity, and PV reverse current, ensuring the safety and longevity of the system.
• Internal temperature sensor: This compensates the charging voltages according to temperature, ensuring efficient and safe battery charging.

• Thanks to the integrated Bluetooth interface, the charge controller can be easily monitored and configured with a smartphone or tablet, allowing for convenient control and adjustment of settings. Whether for a small solar installation or a more demanding system, this MPPT solar charge controller offers an efficient solution to get the maximum out of your solar system.

Documents & Downloads

• Datasheet SmartSolar MPPT 250
• Manual SmartSolar MPPT 250
