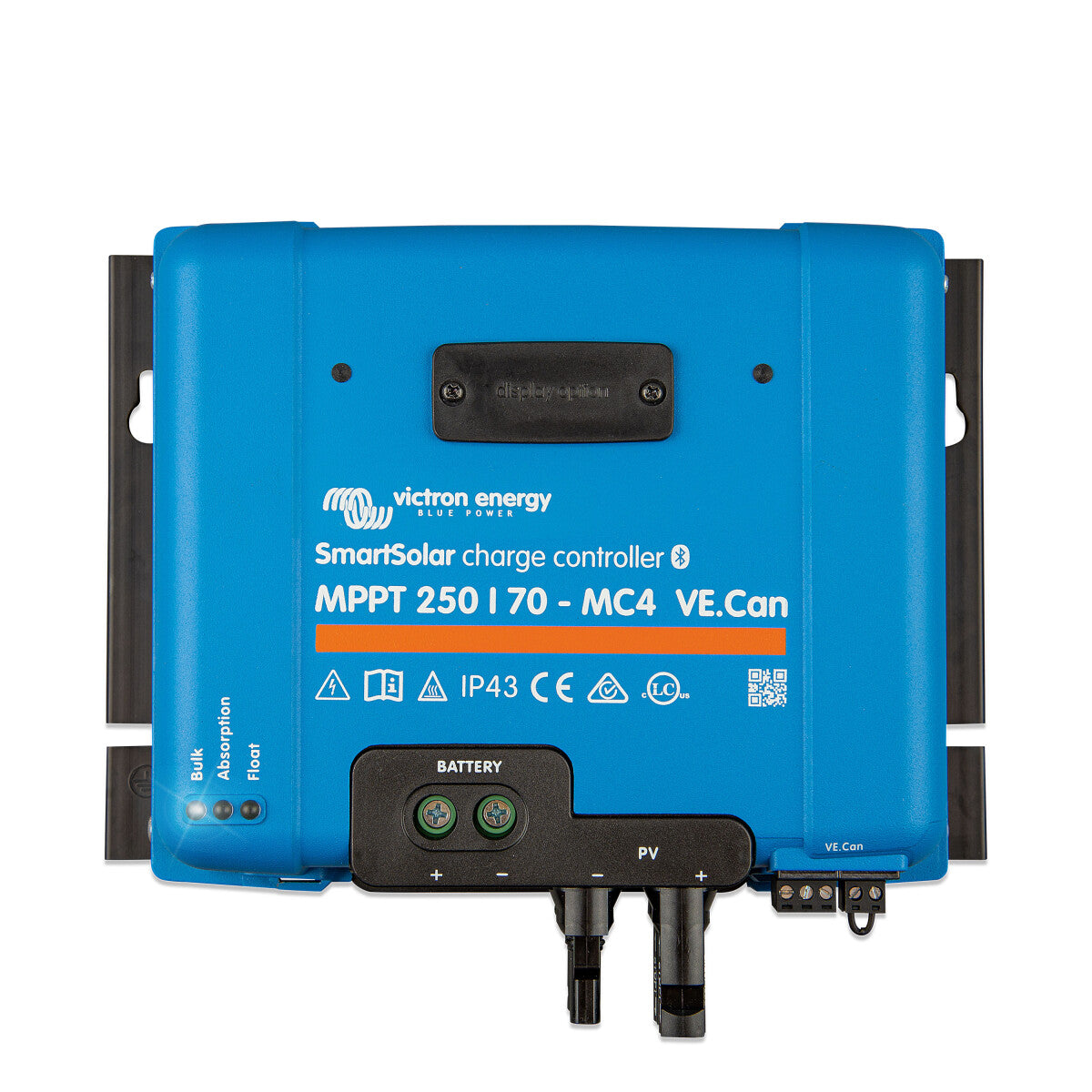

Victron SmartSolar MPPT 250/70-MC4 VE.Can

Experience the next generation of solar energy management with Victron Energy's SmartSolar MPPT VE.Can Charge Controller.

This state-of-the-art solar charge controller not only features an integrated Bluetooth interface for easy monitoring and control via your smartphone or tablet, but also offers the option of a plug-in LCD display for direct interaction.

Key Features and Benefits:

Choose the SmartSolar MPPT VE.Can Charge Controller for advanced, efficient, and flexible management of your solar energy and maximize the potential of your solar system.

• Ultra-fast MPPT: Maximize your energy yield, especially in changing light conditions such as cloudy skies, with ultra-fast Maximum Power Point Tracking. Achieves up to 30% more energy yield compared to PWM charge controllers and up to 10% more than slower MPPT controllers.
• Advanced MPP detection in partial shading: In situations with partial shading, the innovative algorithm of the SmartSolar Charge Controller detects all possible Maximum Power Points to always adjust to the optimal point and thus maximize energy yield.
• Excellent efficiency: Enjoy maximum efficiency with an efficiency of over 98%, without the need for a cooling fan.
• Flexible charging algorithms: The SmartSolar Charge Controller is fully programmable and offers eight pre-programmed algorithms for various applications, which can be easily selected via a rotary knob.
• Programmable auxiliary relay: Ideal for triggering an alarm or starting a generator, this feature offers additional flexibility in your energy system.
• VE.Can for multiple controllers: Synchronize up to 25 controllers in your system for comprehensive and coordinated control of your solar energy system.
• Optional LCD display: For direct interaction and monitoring, the optional SmartSolar LCD display can be easily installed by removing the rubber seal on the controller and plugging in the display.
• The SmartSolar MPPT VE.Can Charge Controller is suitable for 12V, 24V, and 48V battery systems and supports PV voltages of up to 250V, with a charging current of up to 70A. This makes it the ideal choice for a variety of solar applications, from RVs and boats to off-grid energy systems.

Documents & Downloads

• Datasheet SmartSolar MPPT 250
• Manual SmartSolar MPPT 250
