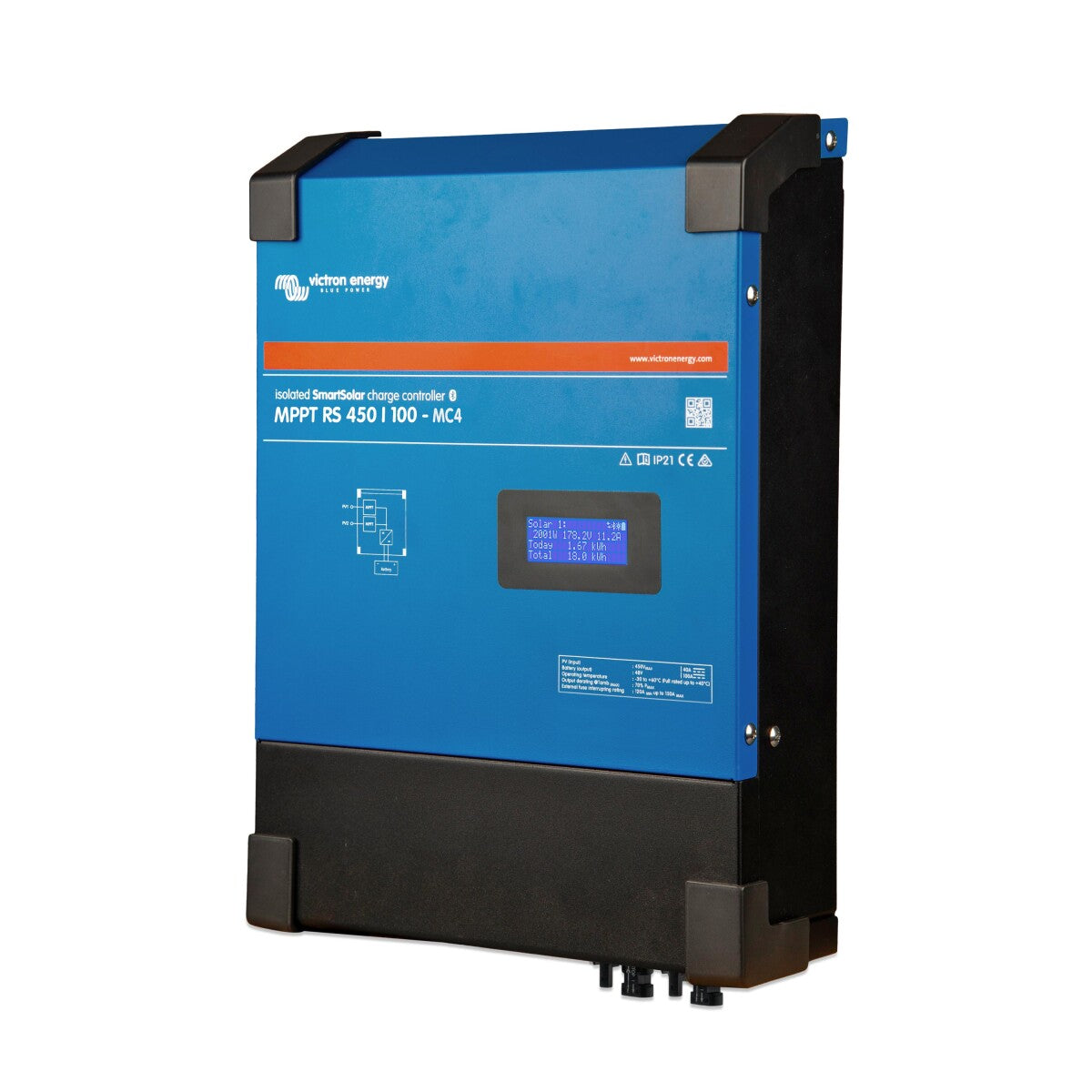

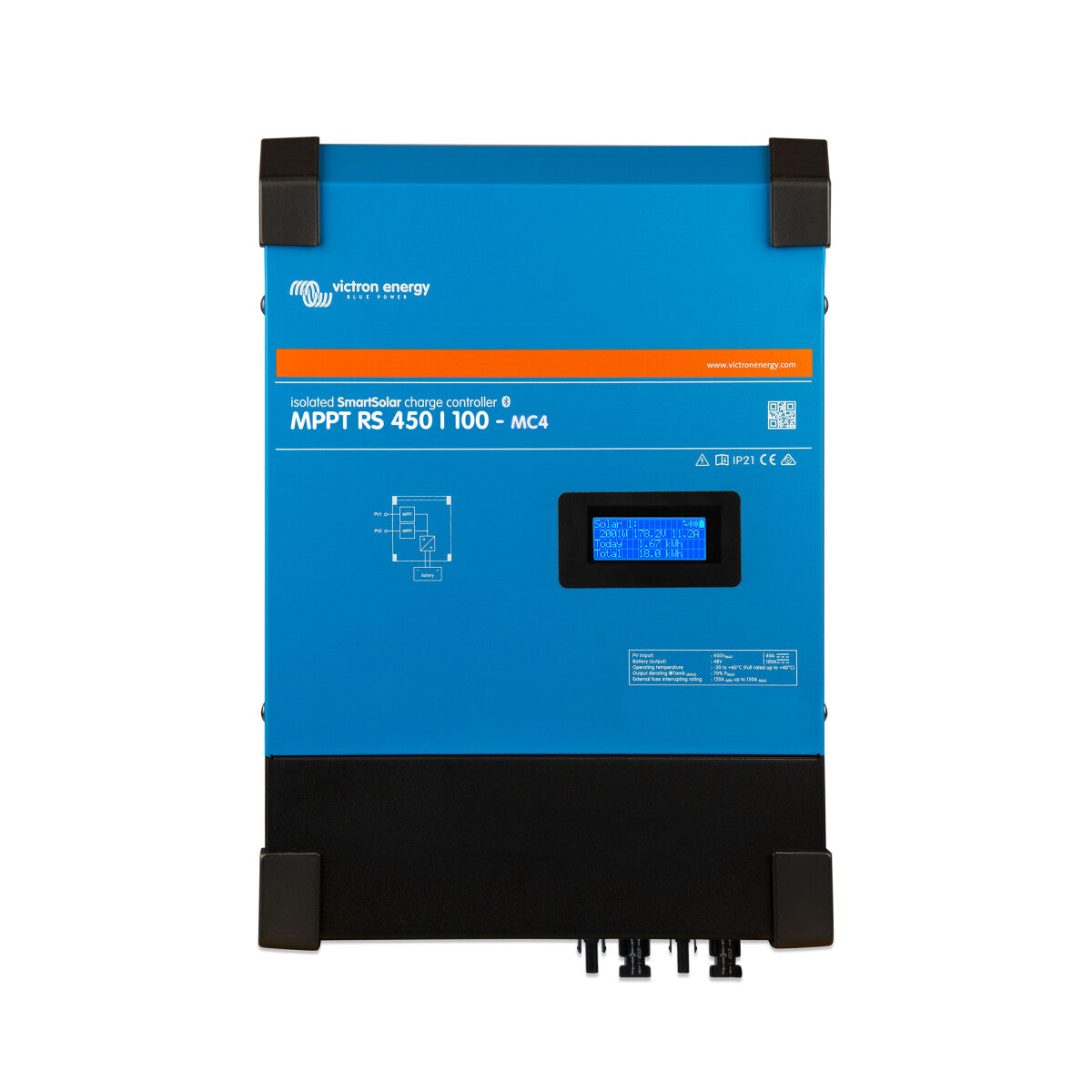

Victron SmartSolar MPPT RS 450/100-MC4

Victron SmartSolar MPPT RS 450/100-MC4 – High-Performance Solar Charge Controller with Advanced MPPT Technology

The Victron SmartSolar MPPT RS 450/100-MC4 is a modern 48V solar charge controller, perfectly suited for both grid-tied and off-grid applications. With a PV input voltage of up to 450 VDC and an output current of 100 A, you'll get the most out of your solar system, whether at home or on the go.

Key Features of the Victron SmartSolar MPPT RS 450/100-MC4

• Ultra-fast Maximum Power Point Tracking (MPPT): Utilizes the full power of your solar modules, even in changing weather conditions.
• Multiple MPPT Trackers: Thanks to independent MPPT trackers, you can optimally align and configure your solar modules to your environment to maximize efficiency.
• Wide MPPT Voltage Range: Operates in the range of 65–450 VDC, with a PV start voltage of 120 VDC, ideal for versatile solar systems.
• Lightweight, Efficient, and Quiet: Weighs only 7.9 kg thanks to high-frequency technology, offers excellent energy efficiency, and runs extremely quietly.
• Integrated Display and Bluetooth: Monitor and configure your controller easily via the display or the VictronConnect app.
• PV Isolation Resistance Monitoring: Detects faults in the PV array, ensuring maximum safety when using high voltages.
• VE.Can and VE.Direct Connectivity: Connect the controller to a GX device to monitor your system and perform remote updates.
• Flexible I/O Connections: Relays, temperature sensors, and other connections allow for seamless integration into your system.

Documents & Downloads

• Datasheet RS 450/100-MC4
• Manual RS 450/100-MC4
