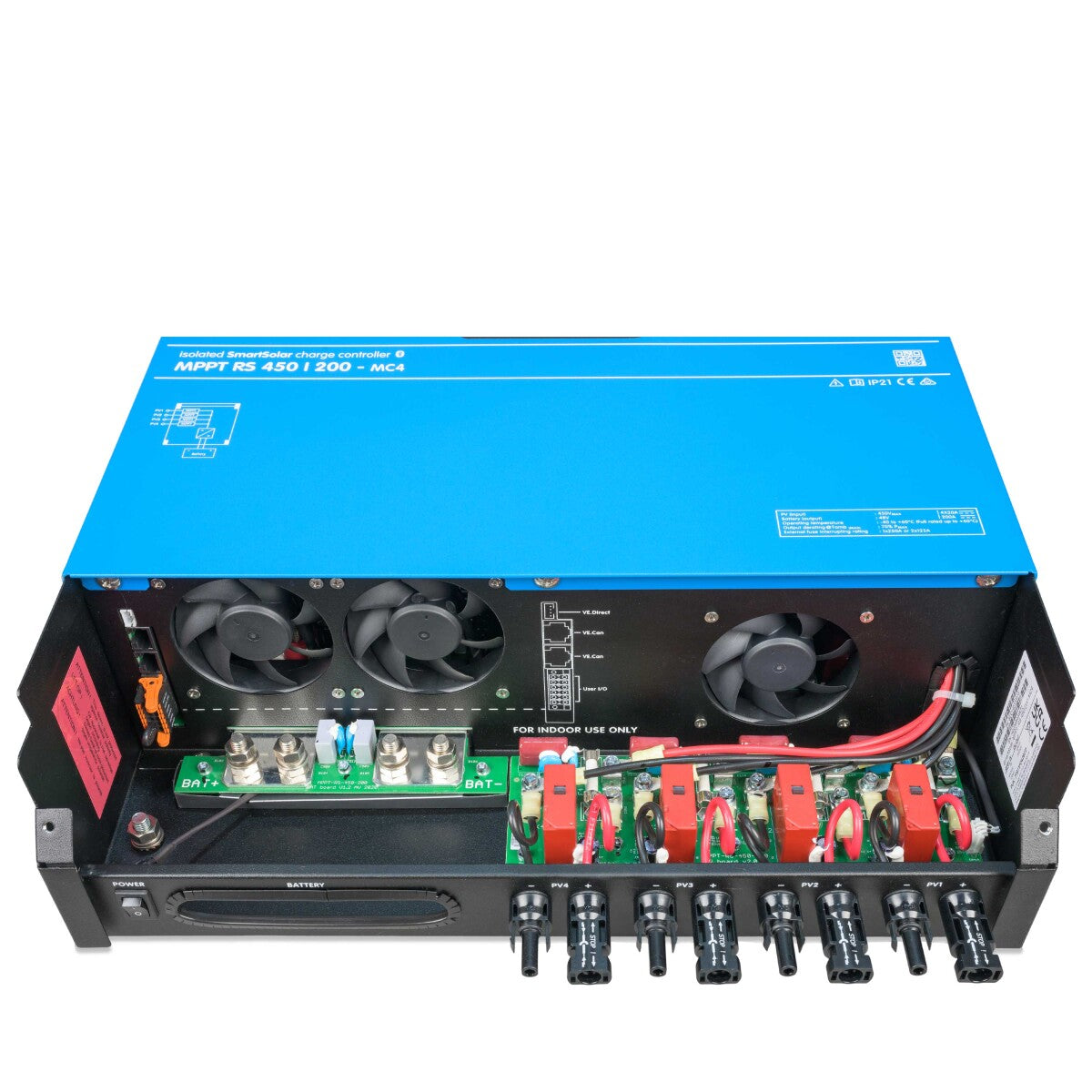

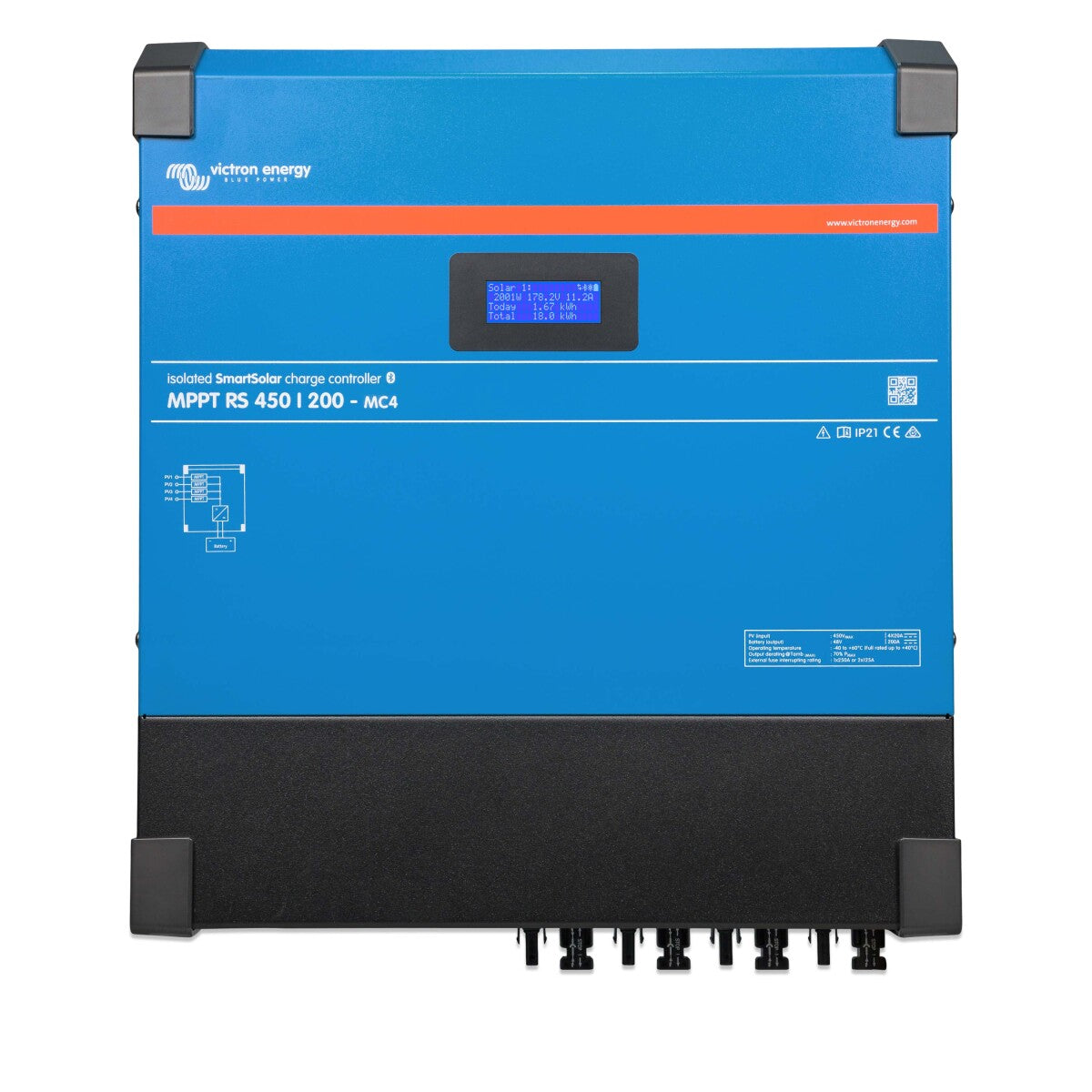

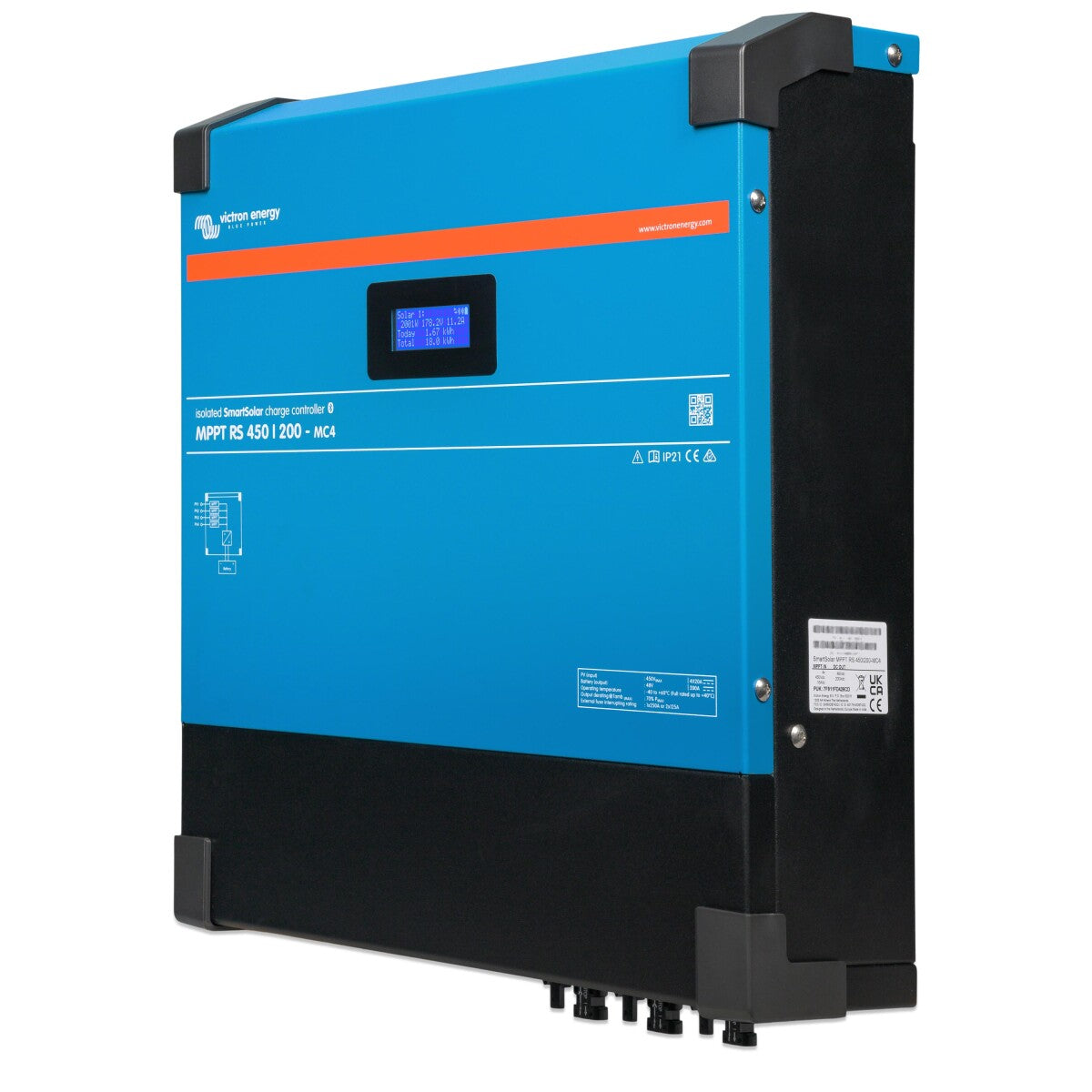

Victron SmartSolar MPPT RS 450/200-MC4

Victron SmartSolar MPPT RS 450/200-MC4 – High-Performance Solar Charge Controller for 48V Systems

The Victron SmartSolar MPPT RS 450/200-MC4 is a powerful solar charge controller specifically designed for 48V solar systems. With a PV input voltage of up to 450 VDC and an output current of 200 A, it is the ideal choice for grid-tied and off-grid applications requiring maximum battery charging power. The charge controller uses the latest Maximum Power Point Tracking (MPPT) technology and offers numerous safety and monitoring functions for reliable operation.

Key Features and Functions

• Ultra-fast MPPT: Maximum energy yield even in changing weather conditions thanks to fast MPPT technology
• Multiple independent MPPT inputs: Optimizes performance even with different orientations or partial shading
• Isolated PV connections: Provides additional safety at higher voltages
• Wide MPPT voltage range: Flexible for various solar system types and configurations
• Lightweight and quiet: Efficient, quiet design for easy installation and low-maintenance operation
• Integrated display and Bluetooth: Enables quick monitoring and configuration via app
• VE.Can and VE.Direct connections: For easy integration into the Victron monitoring system

Monitoring and Configuration with the VictronConnect App

The SmartSolar RS 450/200-MC4 is equipped with Bluetooth, allowing convenient monitoring and configuration via the VictronConnect app. The app displays all important parameters such as battery voltage, PV voltage, historical data, and trends, and enables detailed configuration. For comprehensive performance monitoring and remote management, the charge controller can also be monitored via the Victron Remote Management (VRM) portal when connected to a GX device.

Easy Expansion and Synchronization

Thanks to the VE.Can bus connections, multiple SmartSolar RS and VE.Can MPPT units can be easily connected in series to expand charging capacity. Connected via an RJ45 cable, the charge controllers automatically synchronize and adjust their charging levels. Data transmission for monitoring via a GX device like the Cerbo GX is also possible.

Further Safety and Convenience Features

• PV isolation resistance monitoring: Increased safety for high-voltage operation
• I/O connections: For flexible integration into various solar systems
• Durable and efficient: Designed for low-maintenance and reliable long-term operation

The Victron SmartSolar MPPT RS 450/200-MC4 is the perfect choice for high-performance solar systems that offer reliable and efficient energy conversion as well as comprehensive monitoring capabilities. It seamlessly integrates into the Victron system and can be flexibly expanded to meet even demanding requirements.

Documents & Downloads

• Datasheet Victron RS 450/200 MC4
• Manual Victron RS 450/200 MC4
