Victron Isolation Transformer 4500W 115/230V

Item no.: WS305-1611
€454,95
Incl. VAT, plus shipping
Available again soon
🇩🇪 Ships from Germany
↺ 14-day returns
💬 Advice

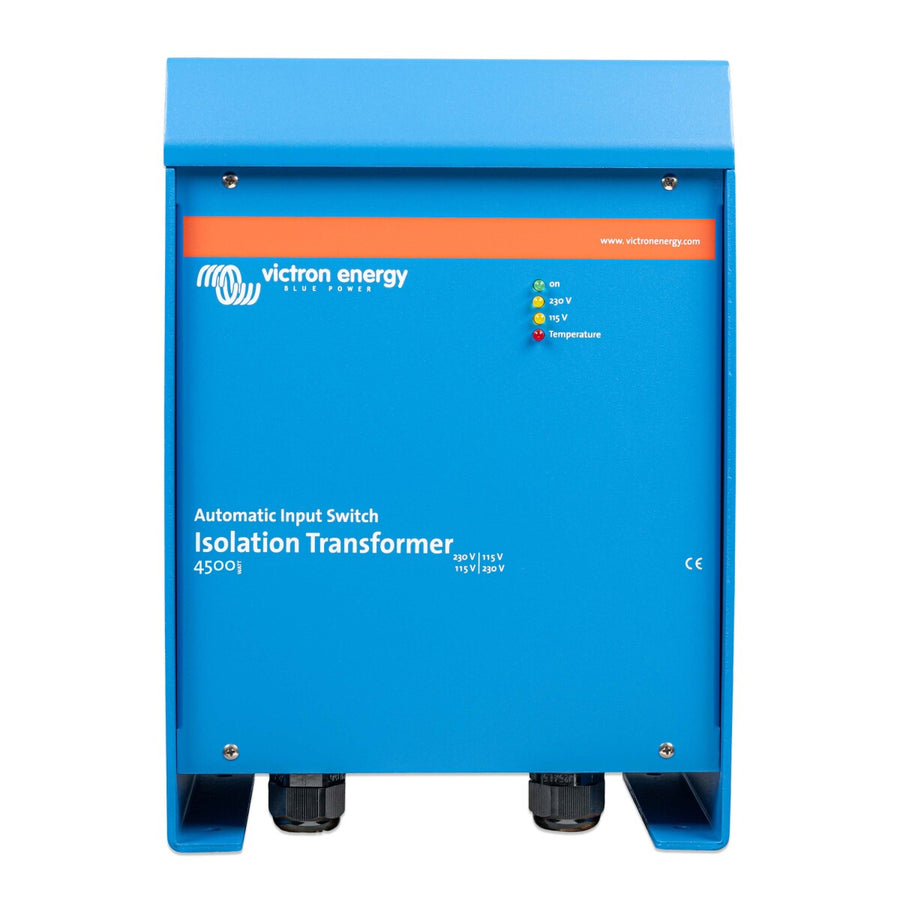

Victron Isolation Transformer 4500 W 115/230 V – powerful isolation transformer

The Victron Isolation Transformer 4500 W 115/230 V provides complete galvanic isolation between shore power and the on-board system. This makes it a very useful component for boats and yachts if you want to reduce galvanic/electrolytic corrosion on metal parts and at the same time improve electrical safety on board.

The low-noise toroidal core technology in combination with soft start ensures that high inrush currents are reduced – this makes operation more pleasant and protects the installation.

With 4,500 W rated power, the transformer is designed for powerful on-board systems. Depending on the voltage, 38 A at 115 V or 19 A at 230 V are available.

Your benefits at a glance

  • 4,500 W isolation transformer for 110/120 V and 230 V systems
  • Galvanic isolation: helps against electrolytic/galvanic corrosion
  • Low-noise toroidal transformer with soft-start circuit

If you run a more powerful on-board system and are looking for a clean, professional solution for a safe shore power connection, the Victron Isolation Transformer 4500 W 115/230 V is the right choice.






Technical data Isolation transformer 4500W 115/230V
Input 115 or 230 V
Output 115 or 230 V
Frequency 50 / 60 Hz
Rated value 38 / 19 A
Protection class IP21
Weight 22.2 kg
Dimensions 362 x 258 x 221 mm
