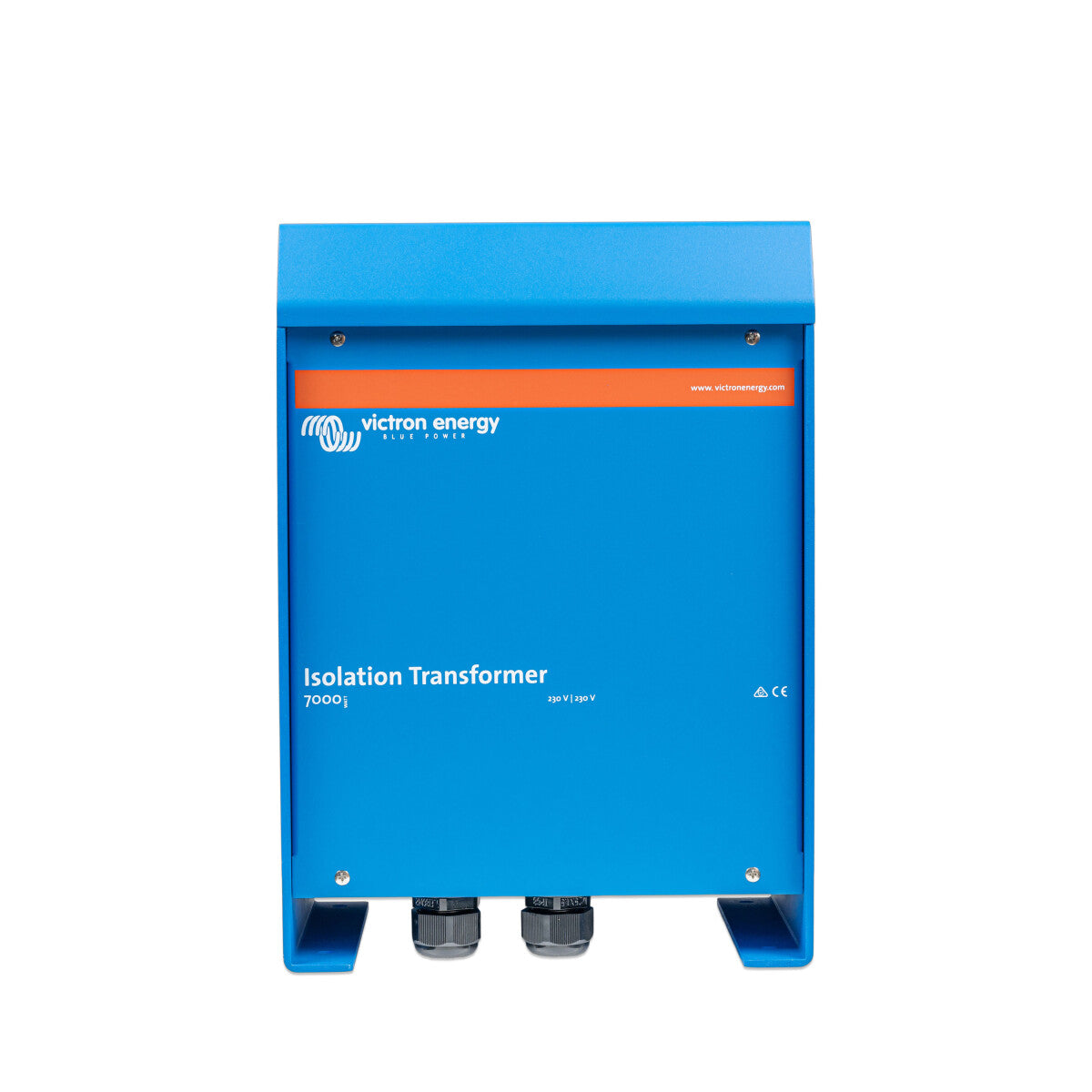

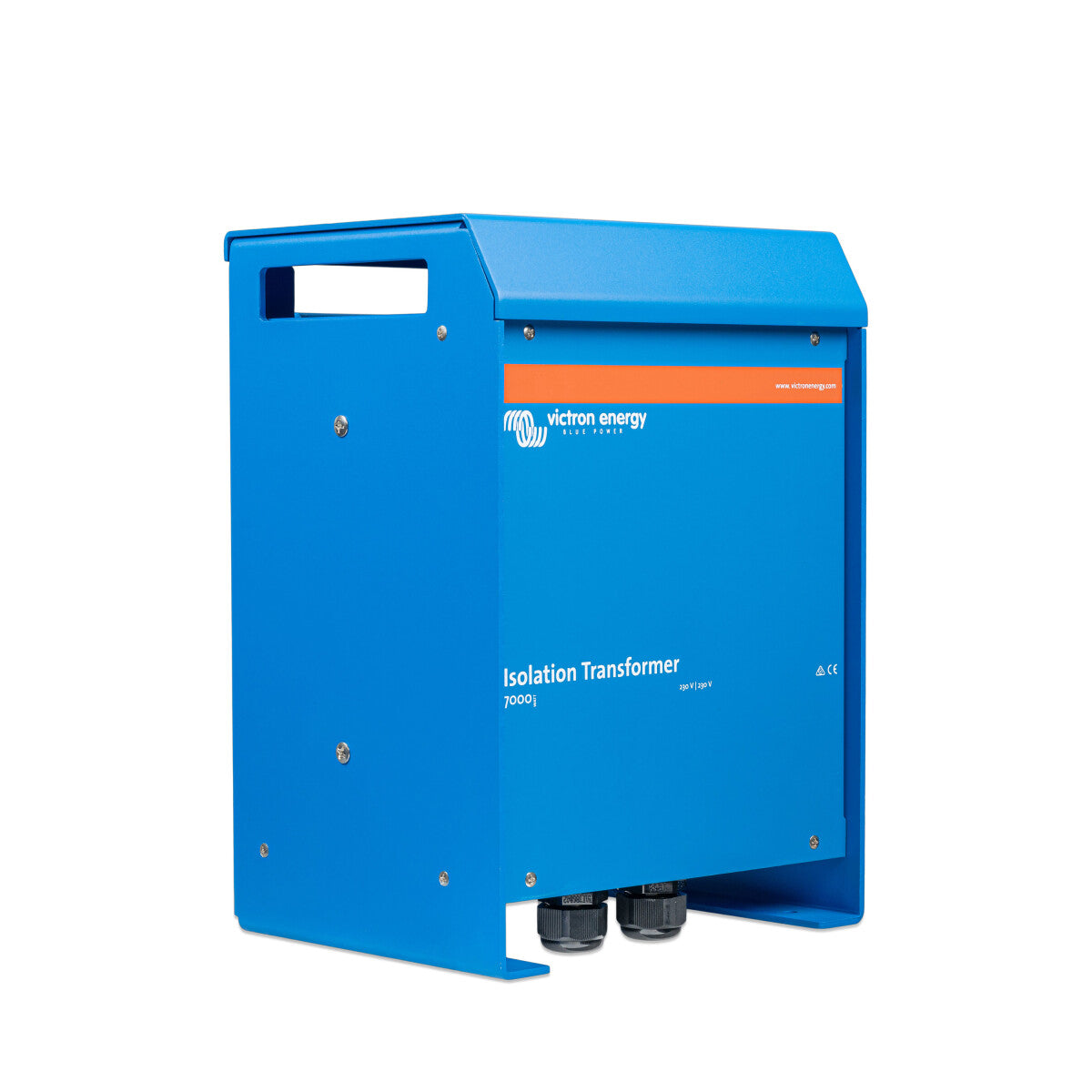

Victron Isolation Transformer 7000W 230V
Victron Isolation Transformer 7000 W 230 V – Maximum Safety for Large Onboard Systems
The Victron Isolation Transformer 7000 W is the reliable solution for powerful marine energy systems. It reliably protects your boat from electrolytic corrosion and ensures a stable, safe power supply on board. With its toroidally wound technology, it operates particularly quietly and offers high efficiency – ideal for professional continuous use.
Safety through Galvanic Isolation
An isolation transformer like this completely separates your onboard electrical system from the shore power supply. This prevents equalization currents through the water that could cause corrosion damage to the hull, drives, or metal parts. This protects your boat long-term and keeps your energy system safe.
Soft-Start Technology for Trouble-Free Operation
When connecting to shore power, the integrated soft-start circuit prevents the shore breaker from tripping unintentionally. This ensures reliable operation without interruptions – even with repeated plugging and unplugging in the harbor.
Strong Performance for Large Systems
- Power: 7,000 W
- Input Voltage: 230 V
- Technology: toroidal winding for high efficiency & quiet operation
- Protection: galvanic isolation for maximum safety
With 7,000 W of power, this isolation transformer is ideal for large yachts, commercial vessels, or boats with particularly high energy demands.
Your Advantages at a Glance
- Effective protection against galvanic corrosion
- Guarantees a stable & safe onboard electrical system
- Soft-start prevents the shore breaker from tripping
- High efficiency & quiet operation due to toroidal design
- Ideal for powerful marine energy systems
Optimal Safety for Your Boat
With the Victron Isolation Transformer 7000 W 230 V, you choose maximum efficiency, long service life, and the highest safety on board. An investment that pays off for every large marine energy system.
| Technical Data | Isolation Transformer 7000W 230V |
| Input | 230/240 V |
| Output | 230/240 V |
| Frequency | 50/60 Hz |
| Rated current | 32 A |
| Protection class | IP21 |
| Weight | 27.9 kg |
| Dimensions | 362 x 258 x 243 mm |
