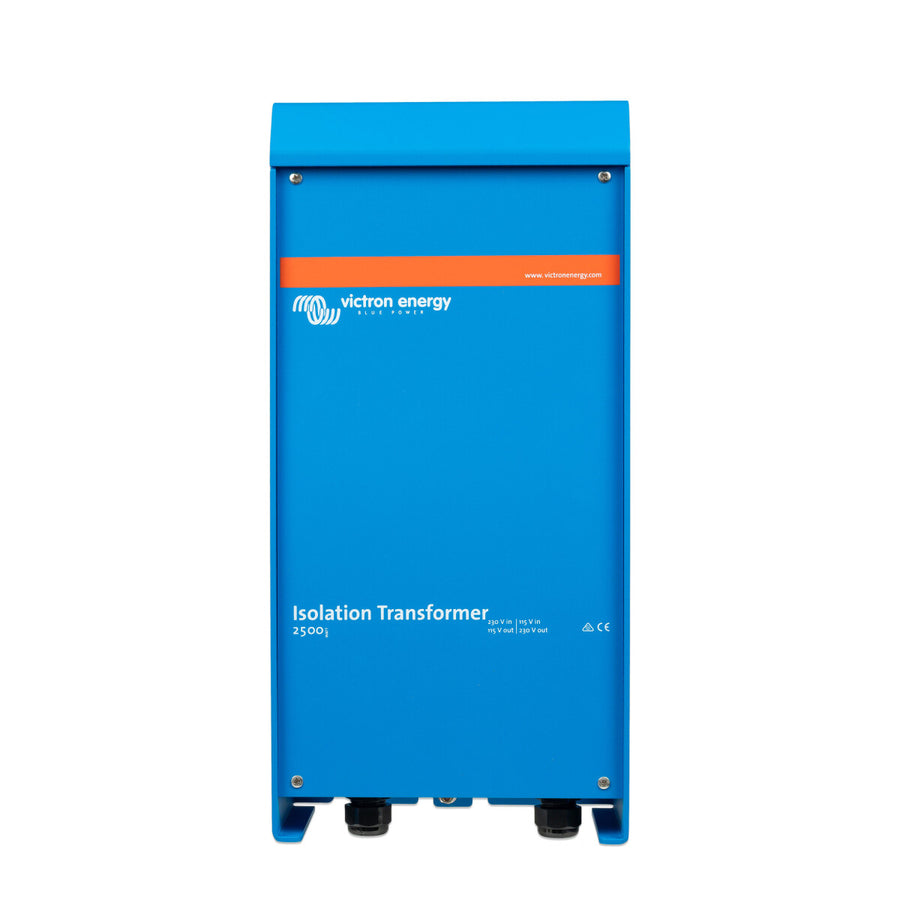

Victron Isolation Transformer 2500W 115/230V

Item no.: WS305-1610
€454,95
Incl. VAT, plus shipping
Available again soon
🇩🇪 Ships from Germany
↺ 14-day returns
💬 Advice

Victron Isolation Transformer 2500 W 115/230 V – galvanic isolation for more safety on board

The Victron Isolation Transformer 2500 W 115/230 V is an isolation transformer for shore power installations that provides complete galvanic isolation between the shore grid and the on-board system. On boats and yachts in particular, this is a key element in reducing galvanic corrosion on metal components while increasing the safety of the electrical system. In industrial applications too, the transformer is a clean solution when electrical isolation and a stable supply are required.

With 2,500 W output, the unit is designed for typical on-board systems and can be used in both 115 Vand 230 V set-ups. The toroidal core design stands for efficient power transfer, while the soft-start function reduces high inrush currents – helpful when sensitive installations on board need to start up cleanly.

Protection against galvanic corrosion – without risky “shortcuts”

Galvanic corrosion occurs when different metals are electrically connected and at the same time “work” in a conductive medium (e.g. seawater). This becomes particularly relevant when the boat is earthed via the shore connection. The isolation transformer creates a clear separation here, without having to resort to safety-critical measures such as omitting the protective earth conductor.

For reliable on-board safety systems

Thanks to galvanic isolation, electrical safety on board can be implemented cleanly, so that protective and safety devices in the on-board system can work independently of shore power. This is a plus for stable, traceable electrical installations.

Solid technology for everyday marine use

The rugged aluminium housing and the protection class IP21 support use in typical plant rooms. For operation, 50 Hz and 60 Hz are supported. The maximum output current is 22 A (115 V) or 11 A (230 V).

Note: Installation should be carried out by qualified specialists in a dry, well-ventilated place with sufficient space.

Your benefits at a glance

  • 2,500 W isolation transformer for 115 V or 230 V AC
  • Complete galvanic isolation between shore grid and on-board system
  • Helps to reduce galvanic corrosion and increases electrical safety
  • toroidal core design for efficient power transfer
  • SoftStart to reduce high inrush currents
  • IP21, aluminium housing, input fuse integrated

If you want to make your on-board system safer when connected to shore power and solve corrosion issues cleanly, the Victron Isolation Transformer 2500 W 115/230 V is a proven component for marine and industrial set-ups.






Technical data Isolation transformer 2500W 115/230V
Input 115 or 230 V
Output 115 or 230 V
Frequency 50 / 60 Hz
Rated value 22 / 11 A
Protection class IP21
Weight 12.1 kg
Dimensions 445.6 x 214.5 x 135 mm
