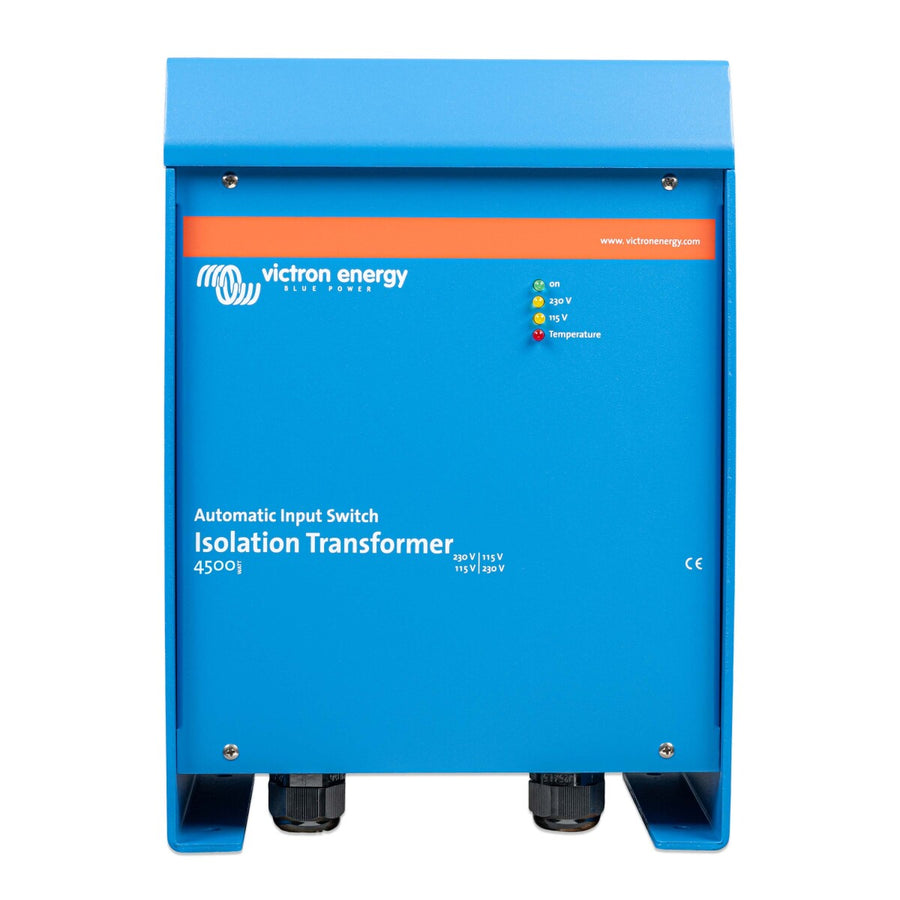

Victron Isolation Transformer 4500W Auto 115/230V

Item no.: WS305-1613
€721,95
Incl. VAT, plus shipping
Available again soon
🇩🇪 Ships from Germany
↺ 14-day returns
💬 Advice

Victron Isolation Transformer 4500 W 115/230 V (Auto) – powerful isolation transformer with automatic switching

The Victron Isolation Transformer 4500 W Auto 115/230 V (ITR050452042) provides complete galvanic isolation between shore power and the on-board system. This makes it a very useful component for boats and yachts if you want to reduce galvanic/electrolytic corrosion on metal parts and at the same time improve electrical safety on board.

A big advantage of this version: the transformer supports 110/120 V and 230 V systems and switches automatically between 115 V and 230 V. The low-noise toroidal core technology in combination with soft start also ensures that high inrush currents are reduced – this makes operation more pleasant and protects the installation.

With 4,500 W rated power, the transformer is designed for powerful on-board systems. Depending on the voltage, 38 A at 115 V or 19 A at 230 V are available.

Your benefits at a glance

  • 4,500 W isolation transformer for 110/120 V and 230 V systems
  • Galvanic isolation: helps against electrolytic/galvanic corrosion
  • Auto 115/230 V: automatic switching between 115 V and 230 V
  • Low-noise toroidal transformer with soft-start circuit

If you run a more powerful on-board system and are looking for a clean, professional solution for a safe shore power connection, the Victron Isolation Transformer 4500 W Auto 115/230 V is the right choice.






Technical data Isolation transformer 4500W Auto 115/230V
Input 115 or 230 V
Output 115 or 230 V
Frequency 50 / 60 Hz
Rated value 38 / 19 A
Protection class IP21
Weight 21.8 kg
Dimensions 362 x 258 x 221 mm
