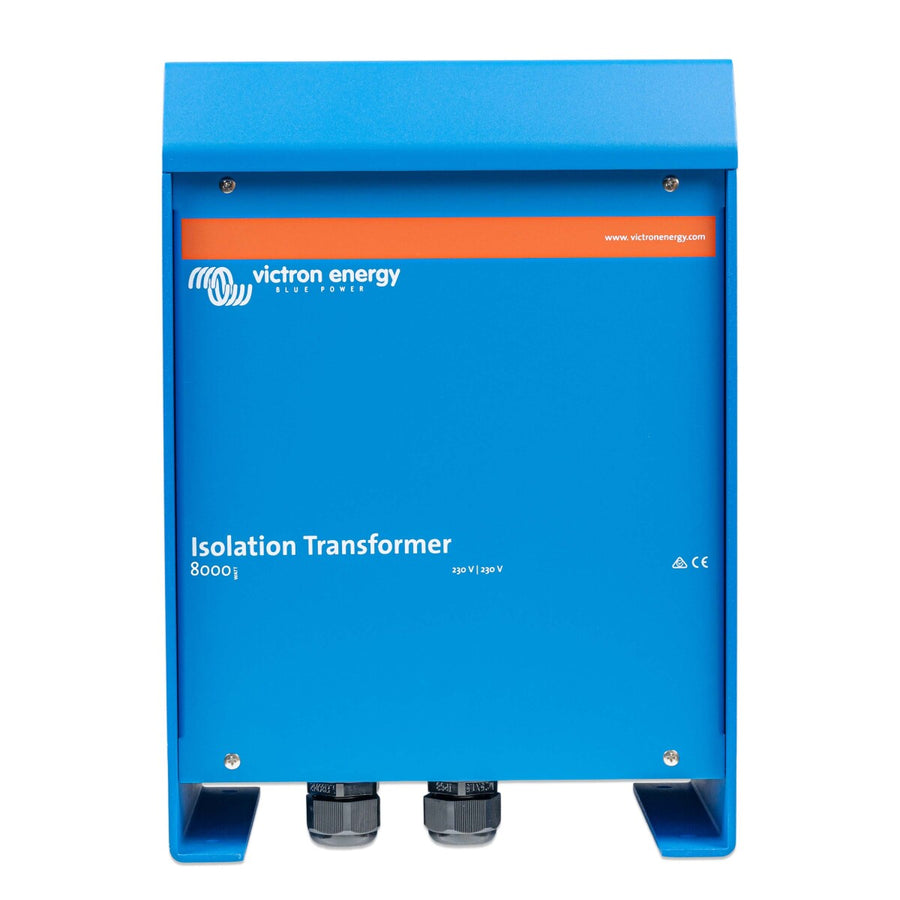

Victron Isolation Transformer 8000W 230V

Item no.: WS305-1612
€932,95
Incl. VAT, plus shipping
Available again soon
Shipping within Germany onlyBulky goods, 31 kg. Delivery abroad on request: info@offroad-fittery.de
🇩🇪 Ships from Germany
↺ 14-day returns
💬 Advice

Victron Isolation Transformer 8000 W 230 V – isolation transformer for powerful shore power installations

The Victron Isolation Transformer 8000 W 230 V is a powerful isolation transformer for 230 V systems. It provides complete galvanic isolation between shore power and the on-board system – an important step in reducing electrolytic/galvanic corrosion on boats and yachts and implementing electrical safety on board cleanly.

With 8,000 W rated power, the transformer is designed for larger on-board systems and higher continuous loads. The low-noise toroidal core technology in combination with a soft-start circuit reduces high inrush currents, which protects the installation and makes operation more pleasant.

At 230 V, a rated current of 35 A is available. The compact design and robust weight are tailored to marine use: 362 × 258 × 243 mm at 28 kg.

Your benefits at a glance

  • 8,000 W isolation transformer for 230 V systems
  • Galvanic isolation between shore power and on-board system
  • Helps to reduce galvanic/electrolytic corrosion on boats
  • Low-noise toroidal transformer with soft-start circuit

If you run a powerful 230 V on-board system and rely on professional isolation and corrosion protection at the shore power connection, the Victron Isolation Transformer 8000 W 230 V is a suitable solution.






Technical data Isolation transformer 8000W
Input 230 V
Output 230 V
Frequency 50 / 60 Hz
Rated value 35 A
Protection class IP21
Weight 28.17 kg
Dimensions 362 x 258 x 243 mm
