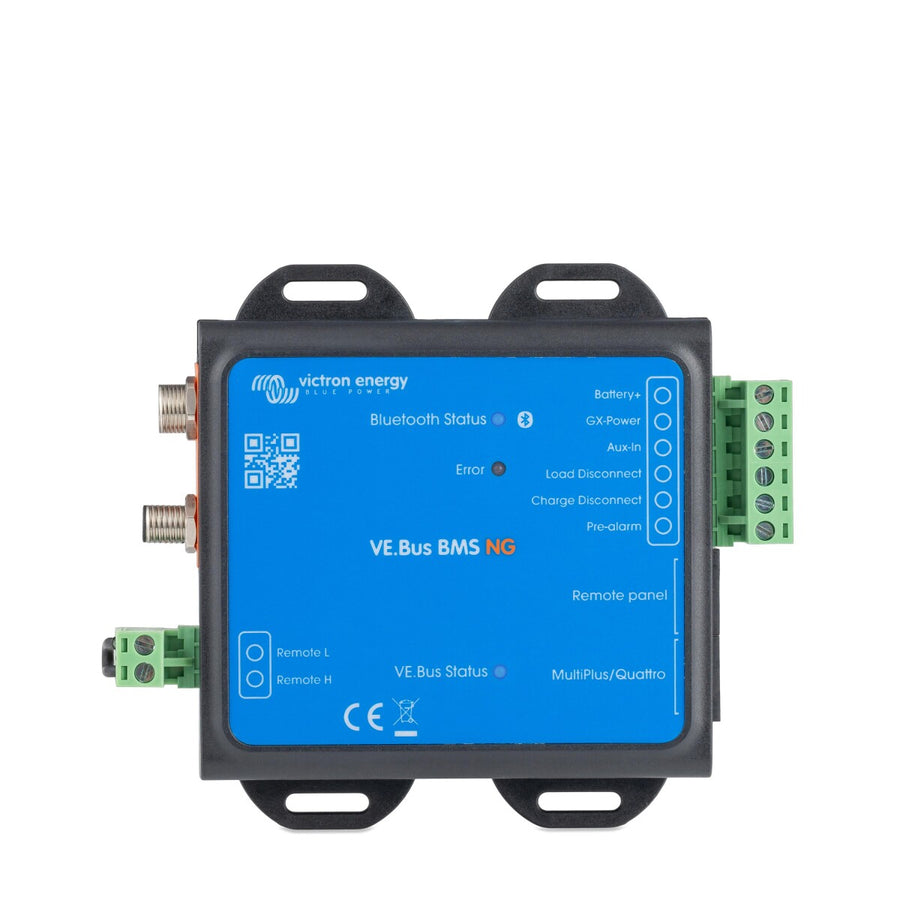

Victron VE.Bus BMS NG

Victron VE.Bus BMS NG – Smart Battery Management for Lithium-NG Batteries

The Victron VE.Bus BMS NG is a powerful battery management system specially developed for the new Victron Lithium-NG batteries. It reliably protects your battery from over and undervoltage of each individual cell, as well as from critical temperature ranges, thus ensuring maximum safety and longevity. Important: This BMS is not compatible with Victron Lithium Battery Smart models.

Maximum Control Thanks to Bluetooth

With integrated Bluetooth, you can conveniently monitor and configure your Lithium-NG batteries via the VictronConnect App. Thanks to Instant Readout, you can see important data such as state of charge (SoC), battery temperature, warnings, and alarms directly in the device list – without a direct connection. In addition, the system receives all relevant current and charging information directly from the batteries, so no separate SmartShunt is required.

Flexible Application Options

The Lithium-NG batteries can be connected in series, parallel, or a combination thereof, and support 12V, 24V, and 48V systems. Depending on the configuration, up to:

• 50 batteries in 12V or 24V systems
• 25 batteries in 48V systems

can be used. This allows for energy storage of up to 192 kWh (12 V), 384 kWh (24 V), or 128 kWh (48 V). For even more capacity & redundancy, multiple Lynx Smart BMS can be operated in parallel.

Central Functions of the VE.Bus BMS NG

• Bluetooth Smart for wireless configuration, monitoring & updates
• Load Disconnect Output for protection against deep discharge (BatteryProtect, inverter, DC-DC converter, etc.)
• Charge Disconnect Output to prevent overvoltage (e.g., Smart IP43 Charger, Cyrix-Li-Charge, BatteryProtect)
• Pre-alarm Output for early warnings of low battery voltage
• Remote On/Off for load & charge disconnect outputs
• LED Indicators (blue for Bluetooth, red for warnings/errors)

Smart BMS for Maximum Safety

With the Victron VE.Bus BMS NG, you get a modern and central battery management system that reliably protects your Lithium-NG batteries and also allows convenient control via app. Ideal for demanding energy setups that rely on safety, efficiency, and flexibility.

Documents & Downloads

• Datasheet VE.Bus BMS NG
• Manual VE.Bus BMS NG
