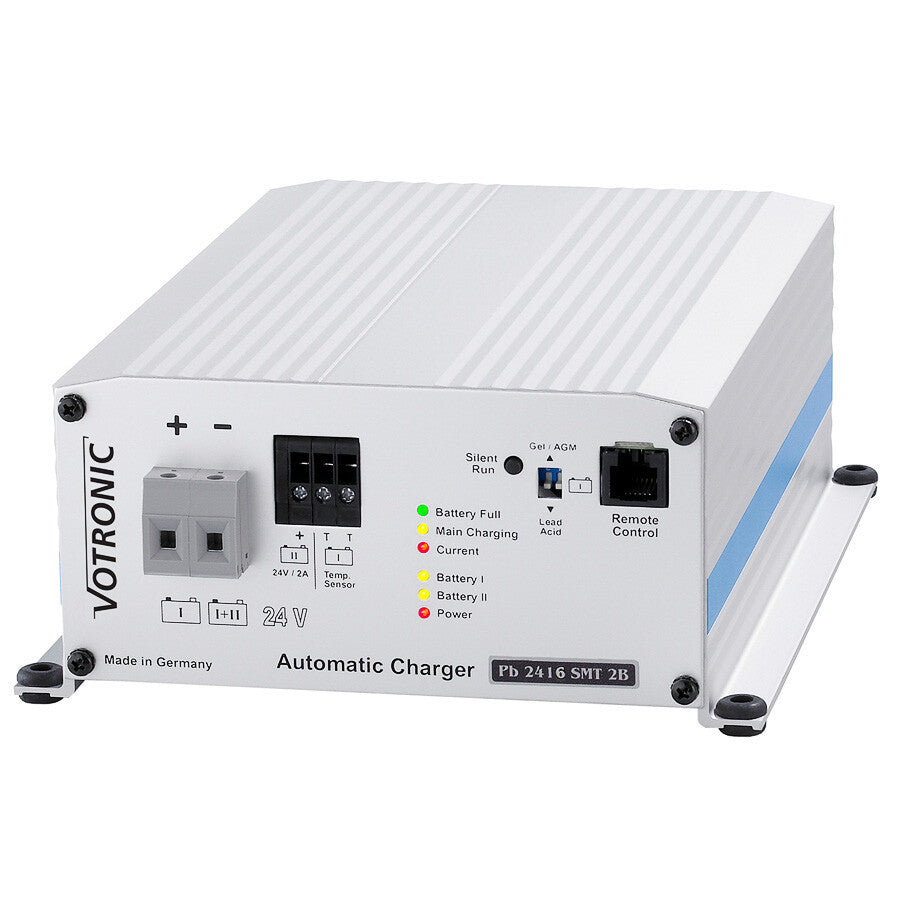

Votronic 16A-24V Battery Charger Pb 2416 SMT 2B - 6232

Votronic 16A-24V Battery Charger PB2416 SMT2B

Designed for high-quality motorhomes, marine applications, special vehicles, and off-grid use.

Votronic chargers are characterized by high operational reliability and readiness for use, thus representing the latest state of the art. Their high-quality charging technology, robust power electronics combined with intelligent microprocessor control, ensure precise adherence to charging voltages, currents, and times, thus extending battery life. A variety of different versions of the devices are available, allowing you to find the right charger for your application.

Votronic charging technology has been used for years in professional emergency vehicles such as fire trucks, ambulances, and coast guard vessels! Quality Made in Germany!

All charging programs are applied by the charger for gentle full charging and subsequent trickle charging of the battery. When a temperature sensor is used, temperature compensation adjusted to the battery type is also applied. The supply of connected consumers is also taken into account during charging, sized so that no more than 50% flows into the consumers during the I-phase (initial charge).

When batteries are full, almost the entire possible device charging current is available for consumers without discharging the batteries.

Further special features at a glance:

• 16A main charge / 2A auxiliary charge
• Charging programs adjustable to battery type
• Excellent charging technology
• Silent-Run function adjustable (night reduction)
• Battery disconnection in case of power failure, overheating, malfunction
• Charging voltages free of peaks, thus overcharging is excluded
• Fully automatic continuous operation for constant readiness of the batteries
• Separate auxiliary charging output "S" for support and trickle charging of the vehicle starter battery, max. 2A
• Automatic battery regeneration during long periods of inactivity (twice a week)
• Compensation of voltage losses on the charging cables for exact adherence to charging voltages
• Intelligent microprocessor control considers the simultaneous supply of consumers on the battery
• Precise battery temperature compensation (temperature sensor required)

Tailored for sealed, gas-tight gel/dryfit batteries with fixed electrolyte, which generally require a higher charging voltage level and longer U1 holding times to achieve short charging times with particularly high capacity storage and to avoid long-term battery "starvation". Also recommended for EXIDE MAXXIMA, high-current battery in AGM wound cell technology.

2. "AGM": Charging program for AGM / Fleece batteries, characteristic IU1oU2

Designed for charging sealed, gas-tight AGM (Absorbent-Glass-Mat) batteries and those in lead-fleece technology, which require a particularly high U1 level with coordinated holding times for full charging and then a moderate U2 level for trickle charging (round cell and plate technology).

3. "UNIVERSAL": Charging program for lead-acid / wet batteries, characteristic IU1oU2oU3

Universal program for charging and trickle charging of acid batteries in vehicles (mixed mobile/stationary). Offers short charging times with a medium U1 level, good charging factor and good acid mixing for open and closed, low-maintenance, maintenance-free standard, traction, lighting, solar and heavy-duty batteries.

Download Installation and Operating Instructions

Documents & Downloads

• Operating Manual
