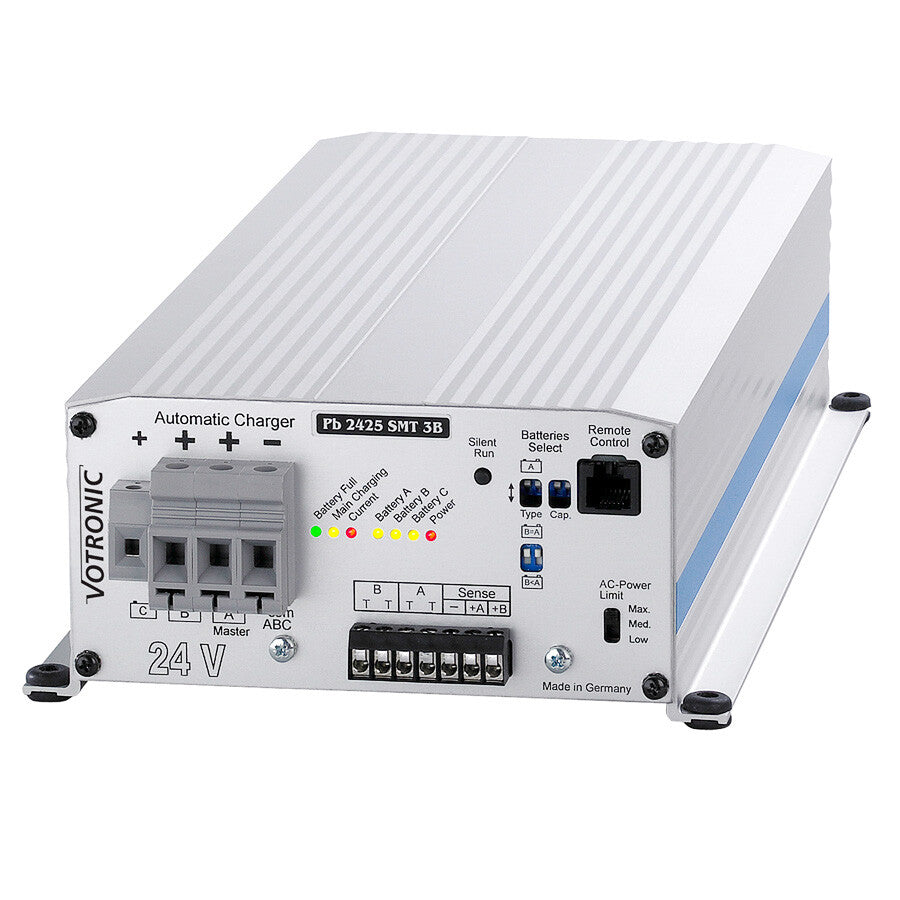

Votronic 25A-24V Battery Charger Pb 2425 SMT 3B - 6239

Votronic 25A-24V Battery Charger PB2425 SMT2B

Designed for high-quality motorhomes, marine applications, special vehicles, and off-grid use.

Votronic chargers are characterized by high operational reliability and readiness for use, representing the latest state of the art. Their high-quality charging technology, robust power electronics combined with intelligent microprocessor control ensures precise adherence to charging voltages, currents, and times, thus extending battery life. A variety of different versions of the devices are available, allowing you to find the right charger for your application.

Votronic charging technology has been used for years in professional emergency vehicles such as fire trucks, ambulances, and coast guard! Quality Made in Germany!

All charging programs are applied by the charger for gentle full charging and subsequent maintenance charging of the battery, including temperature compensation adjusted to the battery type when a temperature sensor is used. The supply of connected consumers is also handled during charging, dimensioned such that no more than 50% flows to consumers during the I-phase (initial charge).

With full batteries, almost the entire possible device charging current is available for consumers, without discharging the batteries.

Further special features at a glance:

• 25A main charge / 4A auxiliary charge
• Charging programs adjustable to battery type
• Excellent charging technology
• Silent-Run function adjustable (night reduction)
• Battery disconnection in case of power failure, overheating, malfunction
• Charging voltages free of peaks, thus overcharging is excluded
• Fully automatic continuous operation for constant readiness of the batteries
• Separate auxiliary charging output "S" for supporting and maintenance charging of the vehicle starter battery, max. 4A
• Automatic battery regeneration during long periods of inactivity (twice a week)
• Compensation of voltage losses on the charging cables for precise adherence to charging voltages
• Intelligent microprocessor control considers the simultaneous supply of consumers connected to the battery
• Precise battery temperature compensation (temperature sensor required)

Optimized for sealed, gas-tight gel/dryfit batteries with fixed electrolyte, which generally require a higher charging voltage level and longer U1 hold times to achieve short charging times with particularly high capacity storage and to avoid long-term battery "starvation". Also recommended for EXIDE MAXXIMA, high-current battery with AGM spiral technology.

2. "AGM": Charging program for AGM / fleece batteries, characteristic IU1oU2

Designed for charging sealed, gas-tight AGM (Absorbent Glass Mat) batteries and those with lead-fleece technology, which require a particularly high U1 level with coordinated hold times for full charging and then a moderate U2 level for maintenance charging (round cell and plate technology).

3. "UNIVERSAL": Charging program for lead-acid/wet cell batteries, characteristic IU1oU2oU3

Universal program for charging and maintenance charging of acid batteries in vehicles (mixed mobile/stationary). Offers short charging times with a medium U1 level, good charging factor, and good acid mixing for open and closed, low-maintenance, maintenance-free standard, traction, lighting, solar, and heavy-duty batteries.
