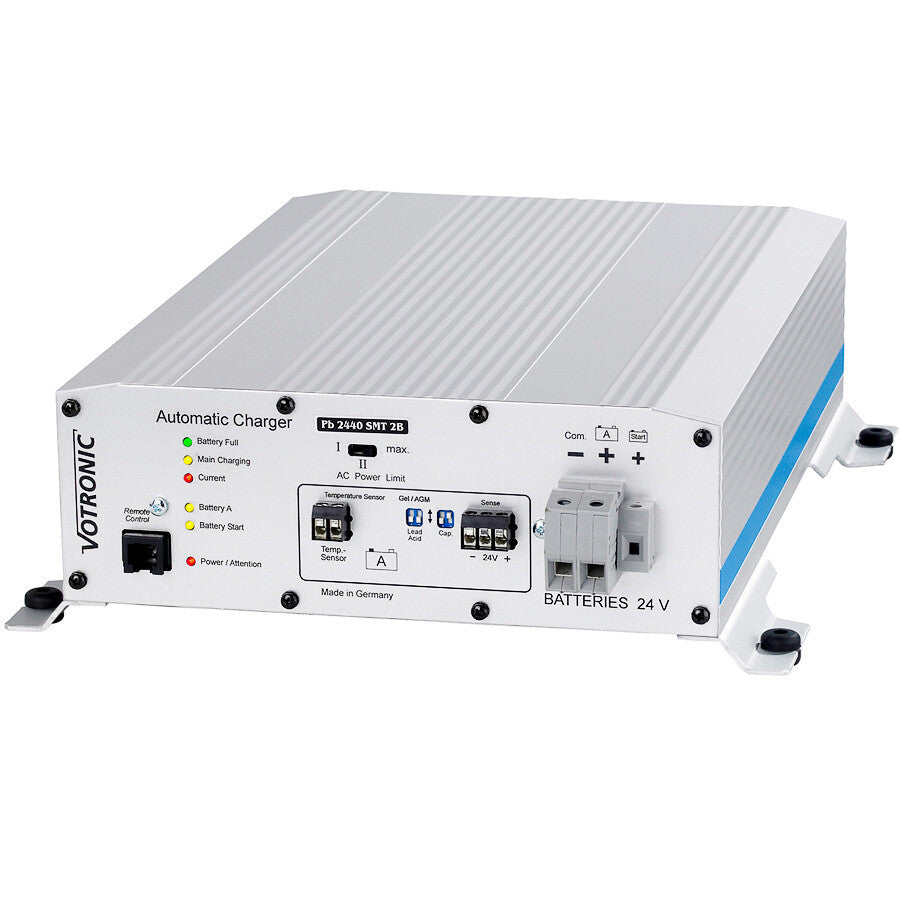

Votronic 40A-24V Battery Charger Pb 2440 SMT 2B - 6250

Votronic 40A-12V Battery Charger PB2440 SMT2B

Designed for high-quality motorhomes, marine applications, special vehicles, and off-grid applications.

Votronic chargers are characterized by high operational reliability and readiness for use, thus representing the latest state of the art. Their high-quality charging technology, robust power electronics combined with intelligent microprocessor control ensures the precise adherence to charging voltages, currents, and times, and thus a long battery life. A variety of different versions of the devices are available. This allows you to find the right charger for your application.

Votronic charging technology has been used for years in professional emergency vehicles such as fire trucks, ambulances, and coast guard! Quality Made in Germany!

All charging programs are applied by the charger for gentle full charging and then for trickle charging of the battery, with temperature compensation adapted to the battery type when a temperature sensor is used. The supply of connected consumers is taken into account during charging, dimensioned so that no more than 50% flows to the consumers during the I-phase (initial charge).

When batteries are full, almost the entire possible device charging current is available for the consumers, without the batteries being discharged.

Further special features at a glance:

• 40A main charge / 2A auxiliary charge
• Charging programs adjustable to battery type
• Excellent charging technology
• Silent-Run function adjustable (night reduction)
• Battery disconnection in case of power failure, overheating, malfunction
• Charging voltages free of peaks, thus overcharging excluded
• Fully automatic continuous operation for constant readiness of the batteries
• Separate auxiliary charging output "S" for support and trickle charging of the vehicle starter battery, max. 2A
• Automatic battery regeneration during long periods of inactivity (twice a week)
• Compensation of voltage losses on the charging cables for precise adherence to charging voltages
• Intelligent microprocessor control takes into account the simultaneous supply of consumers on the battery
• Precise battery temperature compensation (temperature sensor required)

Tailored for sealed, gas-tight gel/dryfit batteries with fixed electrolyte, which generally require a higher charging voltage level and longer U1 hold times to achieve short charging times with particularly high capacity storage and to avoid long-term battery "starvation". Also recommended for EXIDE MAXXIMA, high-current battery in AGM spiral cell technology.

2. "AGM": Charging program for AGM / fleece batteries, characteristic curve IU1oU2

Designed for charging sealed, gas-tight AGM (Absorbent Glass Mat) batteries and those in lead-fleece technology, which require a particularly high U1 level with coordinated hold times for full charging and then a moderate U2 level for trickle charging (round cell and plate technology).

3. "UNIVERSAL": Charging program for lead-acid / wet batteries, characteristic curve IU1oU2oU3

Universal program for charging and trickle charging acid batteries in vehicles (mixed mobile/stationary). With a medium U1 level, it still offers short charging times, good charging factor and good acid mixing in open and closed, low-maintenance, maintenance-free standard, traction, lighting, solar and heavy-duty batteries.
