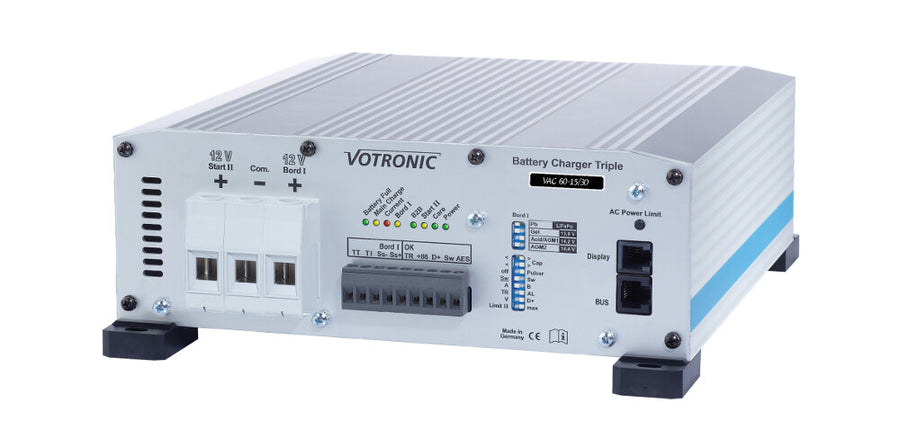

Votronic Battery Charger VAC 60-15/30 Triple CI - 0666
Votronic Battery Charger VAC 60-15/30 Triple CI - 0666
SKU:WS304-1116
Couldn't load pickup availability
Votronic Battery Charger VAC 45-10/25 Triple
The VAC Triple series devices consist of a VAC mains charger and a VCC charge converter including a Battery Trainer.
Instead of the integrated MPP solar regulator of the VBCS Triple series, these devices feature an intelligent charging current distributor that splits the charging current of the mains charger and supplies the starter battery with a higher charging current of 10 or 15 A. This way, higher loads on the starter battery (entertainment, blue light, horn, etc.) can be buffered, and the vehicle's starting capability can be continuously ensured.
If the high charging current is no longer needed for the starter battery, the charging current distributor also makes it available to the leisure battery.
Mains operation, stationary operation at the external socket from the power grid
Full charging power in the universal wide range of 110 V AC - 230 V AC without switching is available worldwide, even with large deviations in the mains supply (undervoltage/overvoltage, sine wave form, frequency).
Powerful charging of the leisure battery and supply of 12 V consumers from the mains
as well as a charging current distributor with a second charging branch 12 V/10-15 A for charging the starter battery and supplying the 12 V vehicle consumers from the mains - with trickle charge during long downtimes.
Thanks to the multi-stage long-term charging characteristics, the device can remain connected to the mains permanently (during use, winter breaks) and keep the batteries fit.
In terms of quality, features, and functions, the VAC Triple series corresponds to VOTRONIC individual devices and is characterized by its particularly compact and lightweight design. These devices significantly contribute to cost reduction and help save valuable space in motorhomes. Acquisition, installation, and connection wiring are reduced to a minimum, thus saving valuable resources.
Product Features:
- Continuous, fully automatic battery charging
- Integrated CI-BUS interface
- Integrated intelligent charging current distributor
- High operational safety
- Fast, battery-friendly charging Integrated battery care
- Full charging power worldwide 8 charging characteristics for lead-acid, gel, AGM, and LiFePO4 batteries
- Temperature sensor 825 included in delivery
- Robust technology and compact design
- Easy installation, short cable runs
- Optional: Plug and Play display and control unit LCD-Charge Control S
Technical Data
| Mains Operation | |
|---|---|
| Nominal Operating Voltage (AC) in [V] | 110 to 230 / 45 - 65 Hz worldwide |
| Operating Voltage Range (AC) in [V] | 90 - 270 (full charging power) |
| Max. Power Consumption (AC) in [W] | 780 |
| Charging Power Leisure/Starter Battery max. [A] | 45.0 / 15.0 |
| Switching output for engine start inhibit | yes |
| Power Limit Function | yes |
| 12 V / 12 V B2B Charge Converter Operation | |
| Charging Power Leisure Battery max. [A] | 60 |
| Automatic Activation D+ / Ignition | yes |
| Starter Battery/Alternator Voltage Range (Euro 6) in [V] / max. Current [A] | 10.5 - 16.5 / 63 |
| Limit II max. Current Limitation (adjustable) in [A] | 65 |
| Starter Battery | |
| Nominal Voltage [V] / Capacity min. [Ah] recommended | 12 / > 100 |
| Leisure Battery, IU1oU2oU3 | |
| Nominal Voltage Lead / LiFePO4 [V] | 12 / 12.8 - 13.3 |
| Battery Capacity, adjustable [Ah] | 90 - 560 |
| Device Mounting Position | any |
| Temperature Range [°C] | -20 to +45 |
| Protection Class/Degree | IP 21 |
| Dimensions (WxHxD) in [mm] - Dimensions incl. mounting flanges, without connections | 217 x 85 x 250 |
| Weight [g] | 2,900 |
| Ambient Conditions, Humidity: max. 95% relative humidity, non-condensing | |
| Scope of Delivery: Mains cable, 1 temperature sensor, operating instructions |
