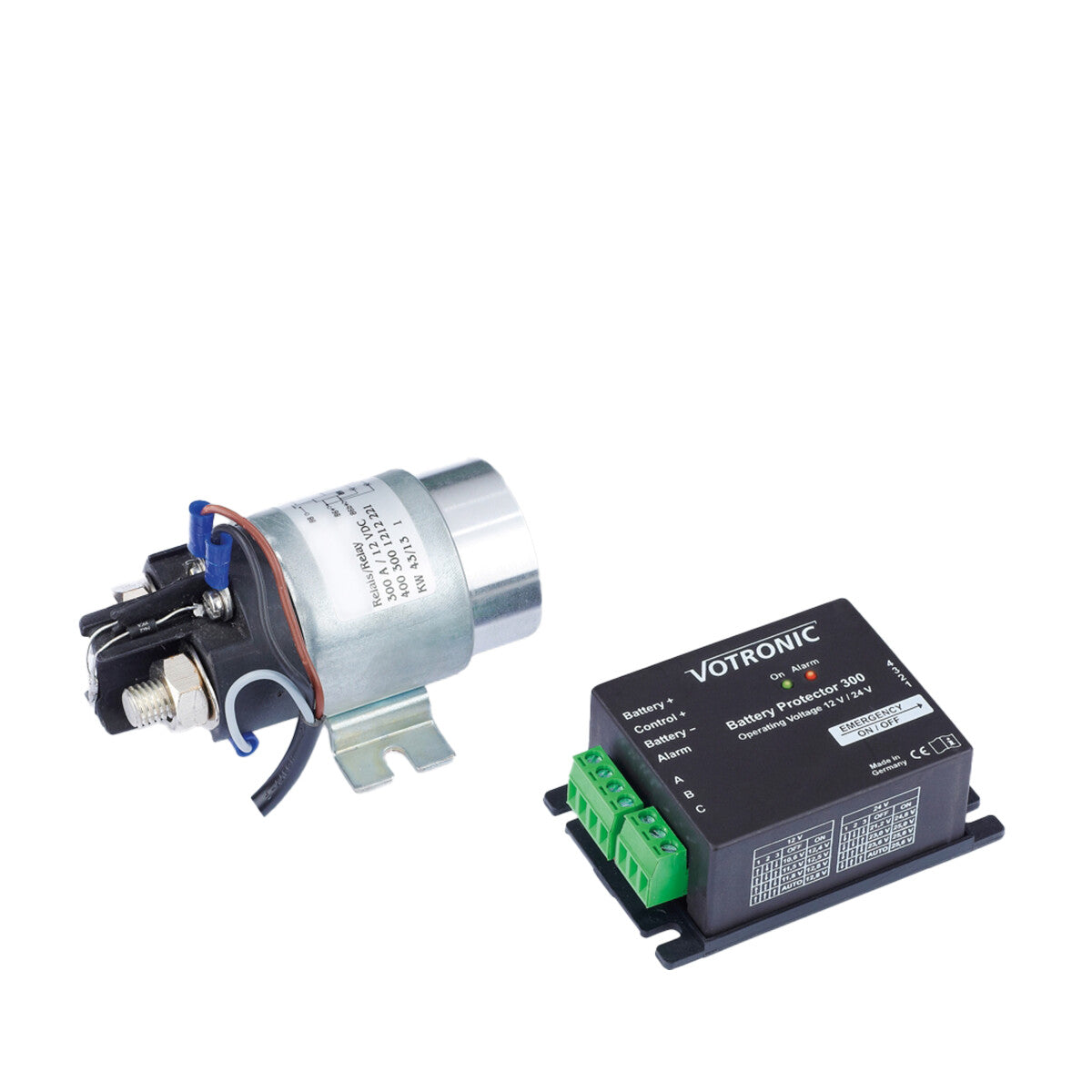

Votronic Battery Protector 300 - 3084

Votronic Battery Protector 300: Optimal Battery Protection for Your Vehicle

The Votronic Battery Protector 300 offers advanced battery protection and switching functionalities for your motorhome, boat, or emergency vehicle. This high-performance unit functions not only as a reliable battery main switch but also as efficient protection against deep discharge and voltage fluctuations. It is perfectly suited for all types of 12 V and 24 V battery systems, including modern lithium LiFePO4 batteries.

Key Features of the Votronic Battery Protector:

• Robust Battery Protection: Protects your batteries from dangerous deep discharge and harmful voltage peaks by automating switching operations.
• Versatile Configuration Options: Offers adjustable switching thresholds and an emergency-on function, which can also be controlled remotely, to ensure maximum control at all times.
• Low Power Consumption: With a minimal current draw of less than 3 mA, this Battery Protector meets the stringent requirements of DIN EN 13976.
• Remote-Controlled Switching Functions: Can be used as a powerful, remote-controlled power relay, giving you access to extended control options.
• Reliable Alarm Systems: Equipped with optical and acoustic warning systems that enable early reaction to potential problems.
• High-Performance Switching Components: Supports continuous currents of up to 300 A and short-term peaks of up to 600 A, ideal for demanding applications.

Innovative Design Features:

• Anodized Aluminum Housing: Ensures robustness and durability.
• Optical and Acoustic Status Indicators: Two LEDs on the housing clearly indicate the operating status.
• External Alarm Function: Equipped with a maximally loadable, short-circuit-proof output for external alarm displays to further increase safety.

Documents & Downloads

• Votronic Battery Protector Manual
