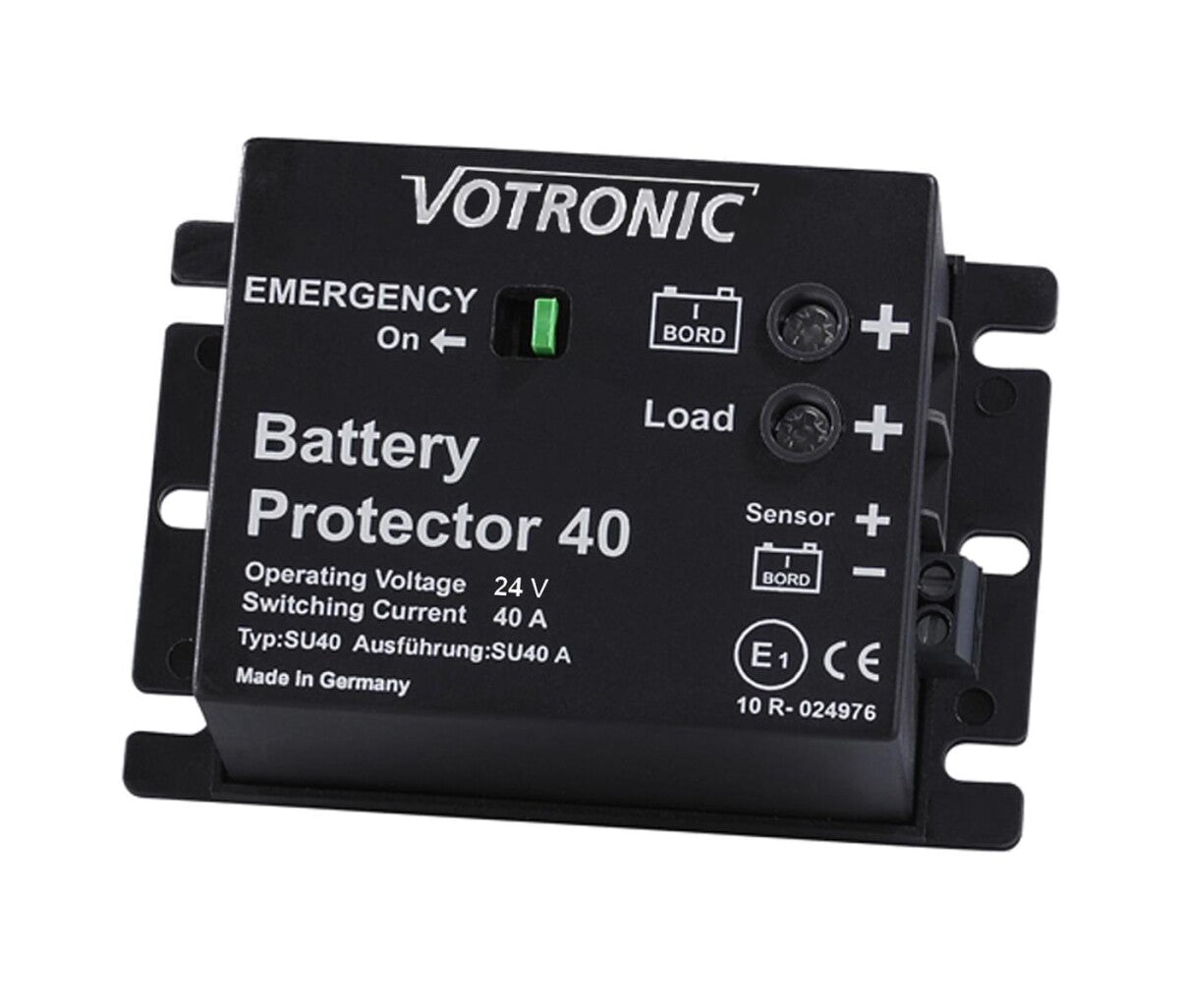

Votronic Battery Protector 40 / 24 - 6075

Votronic Battery Protector 40/24

Best protection against dangerous deep discharge

The VOTRONIC Battery Protector 40 and Battery Protector 100 devices are connected between the supply battery and the consumers and are suitable for all lead battery types (acid, gel, AGM) and brands. They protect the battery from dangerous deep discharge, as well as consumers and equipment from under and overvoltage, and can also serve as remote-controlled battery master switches when controlled by an external switch.

Votronic charging technology has been used for years in professional emergency vehicles such as fire trucks, ambulances, and coast guard! Quality - Made in Germany - !

Further special features at a glance:

• High switching current 40 A, short-term overloadable up to 60 A;
• Intelligent switching threshold automatic calculates the correct "empty" cutoff point based on stored battery characteristic curves for safe battery protection with optimal capacity utilization, both for high loads (low switching threshold with shorter response time) and for very small loads (e.g., "hidden" power consumers with response times over days/months with high response threshold)
• Optional operation also with 3 fixed cutoff thresholds (manual) adjustable
• The higher setting values maintain the starting capability of emergency vehicles with only one battery circuit (according to DIN EN 1789)
• Pre-alarm with visual (LED) and acoustic (beeper, deactivatable) display, as well as a separate warning switching output (PNP, positive output 0.2 A) enables timely countermeasures by the user (e.g., switching off unnecessary consumers)
• Solid battery screw terminals for M6 cable lugs, protective caps included
• Votronic products "Made in Germany"

Votronic Battery Protector 40

Documents & Downloads

• Manual
• Datasheet
