Votronic EBL Connection Cable - 2007

Votronic Cable Set for EBL - Connection

The pre-assembled, 2-part cable set is designed for connecting VOTRONIC solar controllers from the SR 150 Duo Digital to SR 550 Duo Digital series, as well as MPP 170 CI to MPP 440 CI, to an existing Schaudt electrical block (EBL) with a connected control and display panel DT... / LT....
The VOTRONIC solar controllers of the aforementioned series provide a suitable solar current measurement signal at the "EBL" terminal.

The cable set includes:

1. Connection cable X for charging the leisure battery from the solar controller
2. Connection cable Y for the solar current leisure battery signal from the solar controller to EBL DT... / LT...

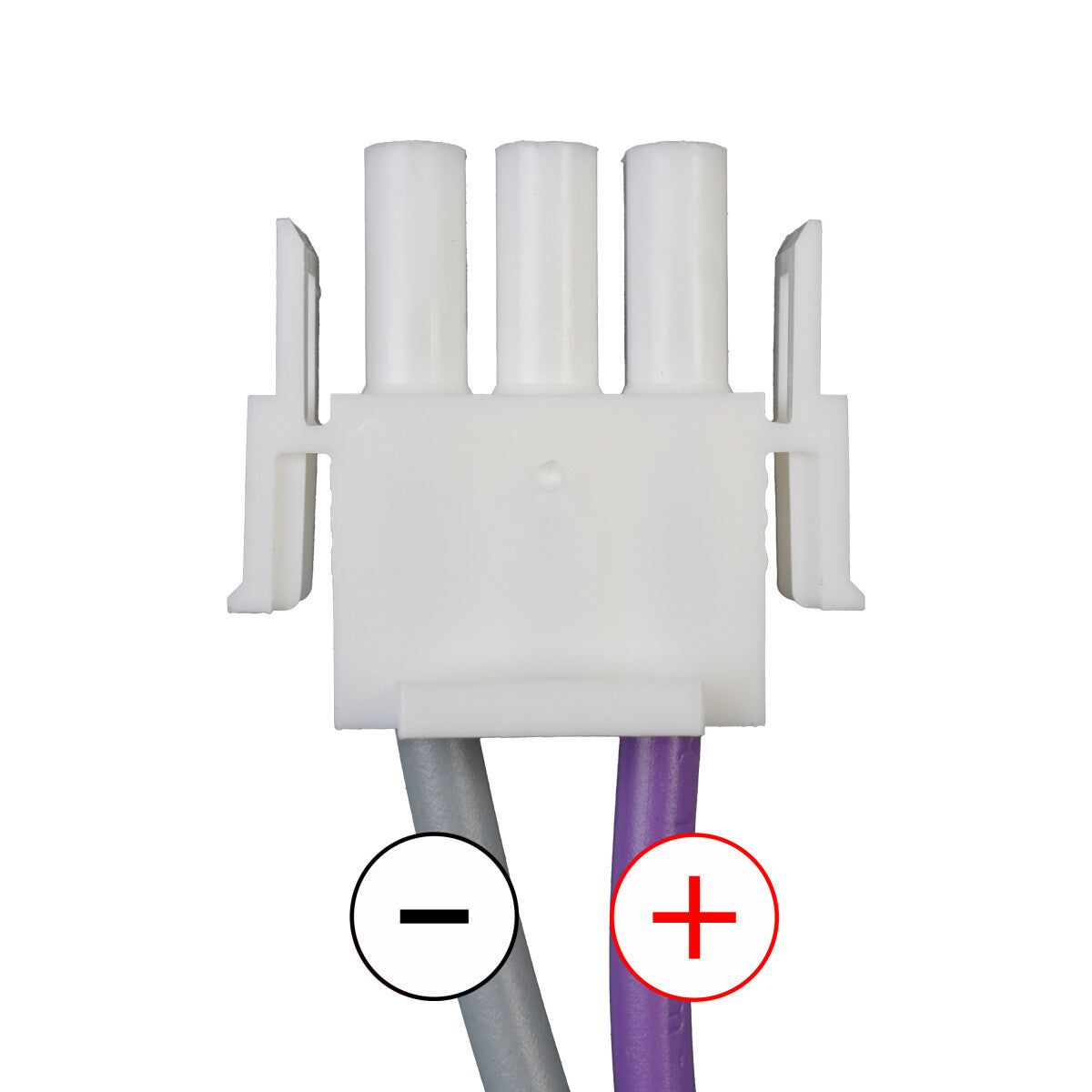

In addition, the cable can be used for any charge controller. In this case, only the large connector is used.

Documents & Downloads

• Instructions Votronic EBL Cable
