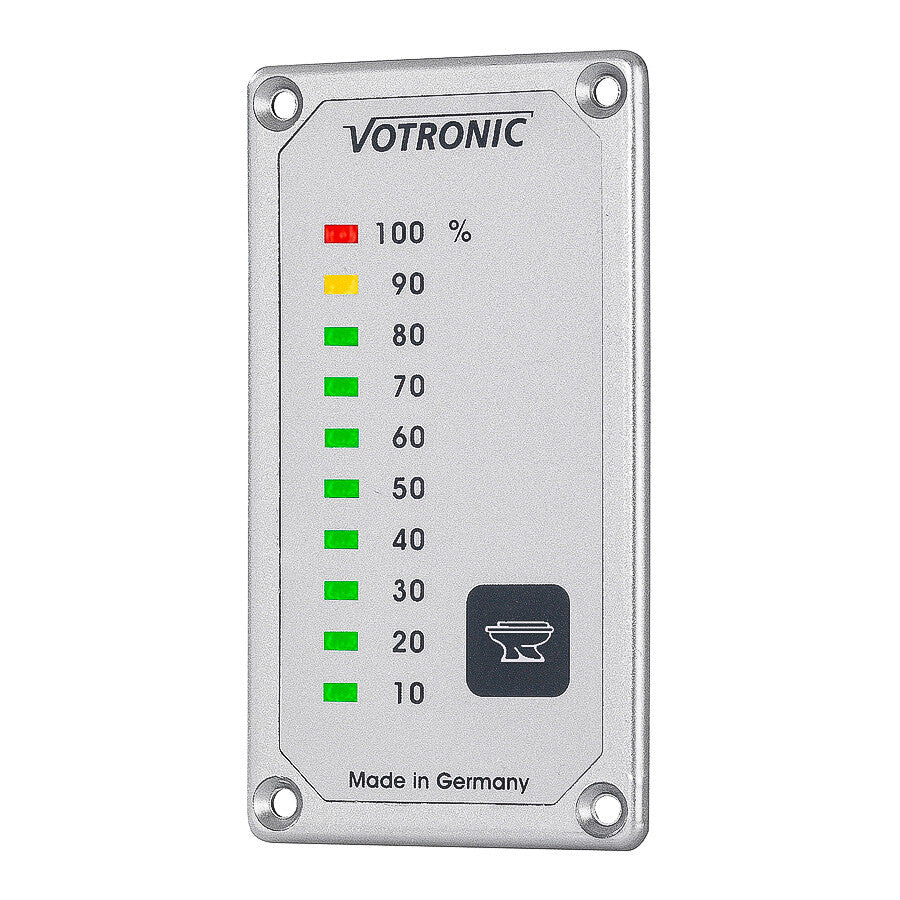

Votronic Fecal Tank Gauge S - 5315

Votronic Holding Tank Display S

The Optimized Monitoring Solution

The VOTRONIC tank displays were designed for precise level measurement and can be used for all tank materials and tank sizes. They differ in the arrangement of the three-color indicator LEDs at the ends of the range and in the symbol imprint on the front panel. The filling levels of the tanks are clearly displayed as a luminous bar with 10 three-color LEDs each, allowing for precise capture of the tank fill levels at a glance. The displays work continuously, as intermediate levels are shown with variable brightness, meaning trends can be recognized immediately.

When refueling and emptying the containers, the steadily rising or falling display provides the user with a direct image of the current fill level, thus enabling complete control of the process. The continuous operation of the display also contributes to this. The display can be switched on and off at the push of a button or switches off automatically after approx. 10 minutes.

The display units are designed as a panel version to match the VOTRONIC module system and fit optimally with other VOTRONIC display units (uniform height 85 mm). Of course, retrofitting a single display in the vehicle is also possible. Small front panel dimensions and the particularly shallow installation depth of only 18 mm allow installation almost anywhere. The storage space behind it can therefore still be used.

The devices are protected against reverse polarity and overload and are easy to connect via screw terminals on the back of the device. Installation and operating instructions as well as a drilling template for the furniture cutout are included in the scope of delivery. Like the sensors, the displays are suitable for 12V and 24V operation.

Votronic Holding Tank Display S

Documents & Downloads

• Operating Manual
